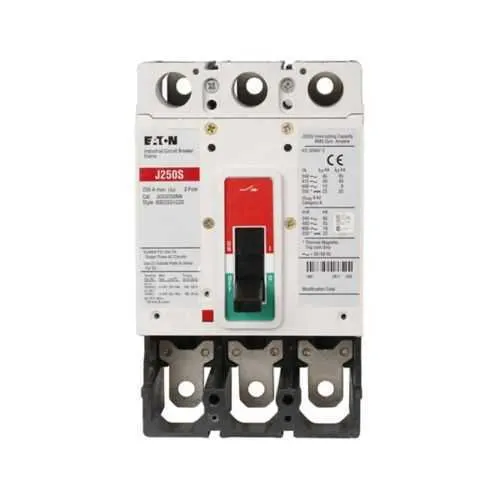

Eaton JGS3250FAG Molded Case Circuit Breaker - 85 kAIC at 240V
Part Number: JGS3250FAG
Quick Summary
Eaton JGS3250FAG molded case circuit breaker protects industrial electrical networks by interrupting fault currents in control panels. Engineers often struggle with nuisance trips and inconsistent coordination across multi-panel systems; this device is designed to deliver reliable protection with precise trip settings. Certified CE Marked, UL Listed, and CSA Certified, the Series G JG frame offers regulatory confidence and safer operation in harsh environments. With metric mounting hardware and a fixed thermal, adj. magnetic trip, it fits legacy fleets while enabling future upgrades without rewiring, helping reduce downtime and total cost of ownership. This combination supports safer startup, easier field testing, and consistent circuit protection across industrial machines.
Product Information
Extended Description
JGS3250FAG Eaton: Eaton Series G complete molded case circuit breaker, JG Frame, 250 A, Three-pole, 600V, 85 kAIC at 240V, 40 kAIC at 415V, 35 kAIC at 480V, 18 kAIC at 600V, Line/load standard w/ metric mounting hardware, Fixed thermal, adj. magnetic
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGS3250FAG
UPC
782113526836
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Type
Complete breaker
Amperage Rating
250 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
JG
Mounting hardware
Metric
Interrupt rating
35 kAIC at 480 Vac 85 kAIC at 240 Vac 40 kAIC at 415 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - JGS3250FAG
Eaton Specification Sheet - JGS3250FAG
Eaton Specification Sheet - JGS3250FAG
Feature: Three-pole JG frame complete breaker provides a 250 A rating and 600 Vac capability with line and load terminals designed for quick field installation. Business Impact: Ensures reliable, balanced three-phase protection for motor starts and control circuits, reducing human error during panel assembly. Application: Ideal for Eaton Series G protected panels in industrial automation lines. Feature: Interrupt rating of 85 kAIC at 240V (and 40 kAIC at 415V, 18 kAIC at 600V) delivers high fault-current resilience. Business Impact: Prevents cascading outages and equipment damage in high-energy environments. Application: Suitable for motors, drives, and feeders in demanding manufacturing settings. Feature: Fixed thermal and adjustable magnetic trip (T185) enables precise protection coordination. Business Impact: Improves selectivity and reduces unwanted trips while allowing customization to specific loads. Application: Power distribution blocks and control cabinets requiring tailored protection. Feature: Metric mounting hardware and line/load terminals simplify installation and retrofit. Business Impact: Speeds up installation, reduces commissioning time, and enhances compatibility with existing infrastructure. Application: Retrofit projects and new builds across global facilities. Feature: Certifications and compliance—CE, UL Listed, CSA Certified—support global deployment. Business Impact: Streamlines regulatory approvals, lowers risk, and supports multi-site rollouts. Application: International control panels and machine centers operating under strict standards. Feature: Mounting and form factor—JG frame, complete breaker with three poles and 250 A rating. Business Impact: Clear compatibility with standard three-phase power systems, minimizing design changes. Application: Panel builders and OEMs standardizing protection across equipment families.
Get a Quick Quote for a Eaton JGS3250FAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGS3250FAG?
Enquire Now
FAQs
Installation starts with confirming the panel accepts metric mounting components and three-pole clearance. Mount the JG frame breaker using the supplied metric hardware, connect line and load terminals per the enclosure diagram, and torque terminals to Eaton’s specifications. Verify the trip setting (T185) and ensure the unit sits squarely within available slots for proper safety clearance and qualified service access.
Key specs include a 250 A amperage rating, 600 Vac voltage rating, and three-pole configuration. The interrupt ratings vary by voltage: 85 kAIC at 240V, 40 kAIC at 415V, 18 kAIC at 600V, and 35 kAIC at 480V. The trip type is T185, with fixed thermal and adjustable magnetic trip for tailored protection in your load profile.
Yes. The three-pole design, high interrupt ratings, and Series G compatibility make it ideal for motor control centers and machine feeders. Its fixed thermal, adjustable magnetic trip provides selective coordination, helping to protect critical motors while avoiding unnecessary trips during startup or transient faults.
The JGS3250FAG is CE Marked, UL Listed, and CSA Certified, aligning with global safety and performance requirements. These certifications support compliance across international sites and simplify procurement for multi-country projects, reducing regulatory risk during audits and site installations.
Expect improved uptime due to reliable fault interruption and precise trip coordination, which minimizes unplanned outages. The metric mounting and modular Series G design simplify retrofits and spare-part stocking, lowering maintenance labor costs. Over the life of the panel, this translates to reduced downtime, predictable service intervals, and a favorable total cost of ownership.
