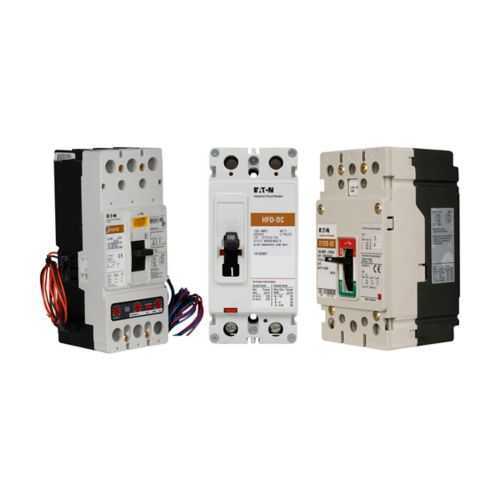

Eaton JGSDC3225FAG Molded Case Circuit Breaker - UL 489

Feature: 225 A three-pole JG frame molded case breaker provides robust overcurrent protection for solar PV circuits. Business Impact: Reduces nuisance trips and protects critical PV equipment, improving solar plant uptime and lowering maintenance costs. Application: Suitable for PV strings, service entrances, and panel boards in commercial and industrial facilities. Feature: Adjustable magnetic trip combined with fixed thermal element enables coordinated protection with upstream devices. Business Impact: Improves selectivity, minimizes downstream damage, and supports safe startup of PV systems. Application: Ideal for arrays with mixed protection schemes and tight fault-current budgets. Feature: UL 489 certified design ensures compliance with recognized electrical safety standards. Business Impact: Eases code compliance and simplifies procurement for regulated projects, reducing risk during inspections. Application: Widely used in MCCBs serving solar protection panels. Feature: PVGuard/Solar lineage with line and load terminals and metric mounting hardware. Business Impact: Simplifies installation, accelerates wiring, and supports reliable fastening in dense enclosures. Application: Perfect for new builds or retrofits in compact solar installations. Feature: Compact footprint and weight—3.57 in depth, 4.13 in height/width, 6.5 lb. Business Impact: Saves space in crowded switchgear and reduces enclosure costs, while maintaining performance. Application: Fits standard MCCB spaces in industrial PV protection panels. Feature: 225 A rating with 600 Vac / 250 Vdc capability and T185 trip type ensures suitability for mixed AC/DC PV environments. Business Impact: Delivers versatile, dependable protection across panel boards and DC microgrids, supporting safe energy management. Application: Appropriate for commercial rooftop arrays and utility-scale PV equipment in constrained layouts.
