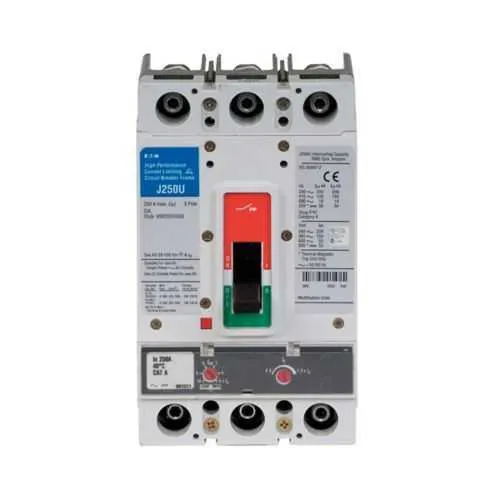

Eaton JGU3200FAG MCCB - 200A, 600Vac, UL Listed
Part Number: JGU3200FAG
Quick Summary
The Eaton JGU3200FAG molded case circuit breaker protects electrical power systems in industrial panels by interrupting faults. Nuisance trips and difficult field adjustments can drive costly downtime and complicate maintenance. UL Listed, CSA Certified, and IEC Rated, this device meets global safety and performance standards. As part of the Series G molded case breaker family, it offers 200 A at 600 Vac with 200 kAIC at 240 Vac and 150 kAIC at 480 Vac, plus metric mounting for fast, reliable panel integration. Fixed thermal with adjustable magnetic trip (T185) ensures precise coordination with varying load profiles, reducing nuisance trips and supporting predictable protection.
Product Information
Extended Description
JGU3200FAG Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Three-pole, 200A, 600 Vac, 200 kAIC at 240 Vac, 150 kAIC at 480 Vac, 50 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGU3200FAG
UPC
786685126616
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed CSA Certified IEC Rated
Type
Complete breaker
Amperage Rating
200 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
200 kAIC at 240 Vac 50 kAIC at 600 Vac 150 kAIC at 480 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MOEM MCCB product selection guide
MOEM MCCB product selection guide
MOEM MCCB product selection guide
Feature: 200 A amperage rating and 600 Vac voltage rating in a three-pole JG frame. Business impact: robust overcurrent protection with minimal nuisance trips during normal operation. Application: ideal for mid-size distribution panels and motor feeders in manufacturing environments. Feature: Interrupt ratings of 200 kAIC at 240 Vac, 150 kAIC at 480 Vac, and 50 kAIC at 600 Vac. Business impact: high fault-current capability reduces arc energy and protects feeders, motors, and transformers. Application: suitable for high-current applications and safety-critical circuits. Feature: Series G complete MCCB with line and load terminals and metric mounting hardware. Business impact: simplifies panel integration, reduces installation time, and improves field serviceability. Application: retrofits and new builds in metric enclosures. Feature: UL Listed, CSA Certified, IEC Rated, CE Marked. Business impact: regulatory compliance across regions, accelerating project approvals. Application: global deployments. Feature: 25-000 warranty and access to Eaton service centers. Business impact: lowers maintenance risk and ensures quick access to replacements. Application: asset management and critical process protection. Feature: compact footprint—3.57 in length, 4.13 in width and 4.13 in height, 6 lb weight. Business impact: enables dense panel layouts and easier handling. Application: space-constrained control rooms and machine enclosures.
Get a Quick Quote for a Eaton JGU3200FAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGU3200FAG?
Enquire Now
FAQs
The JGU3200FAG uses metric mounting hardware and a JG frame, designed for seamless integration in metric enclosures and panels. Its line and load terminals support clean, straightforward wiring, enabling quick installation in new builds or retrofits. For best results, pair with Eaton’s compatible mounting kits and follow the Series G installation guidelines to ensure proper torque and tightening sequences.
Key specifications include a 200 A amperage rating, 600 Vac voltage rating, three-pole configuration, and a T185 trip type. It offers interrupt ratings of 200 kAIC at 240 Vac, 150 kAIC at 480 Vac, and 50 kAIC at 600 Vac. The device is UL Listed, CSA Certified, IEC Rated, and CE Marked, with metric mounting and line/load terminals.
Yes. With a three-pole, 200 A rating and a T185 trip characteristic, JGU3200FAG provides reliable motor protection and overload protection in 3-phase systems. Its high short-circuit interrupt ratings help protect motor feeders and motors during faults, while fixed thermal and adjustable magnetic trip allow docile coordination with motor starting profiles and load variability.
JGU3200FAG is UL Listed, CSA Certified, and IEC Rated, with CE Marking. These certifications validate compliance with North American and international safety and performance standards, facilitating cross-border deployments, panel approvals, and customer audits in global plants and multi-site operations.
The device includes Eaton’s warranty (25-000 policy) and access to service centers, reducing maintenance risk and downtime. Its modular Series G design, metric mounting, and reliable trip coordination simplify field servicing and future upgrades, delivering lower lifecycle costs through longer intervals between interventions and faster component replacements when needed.
