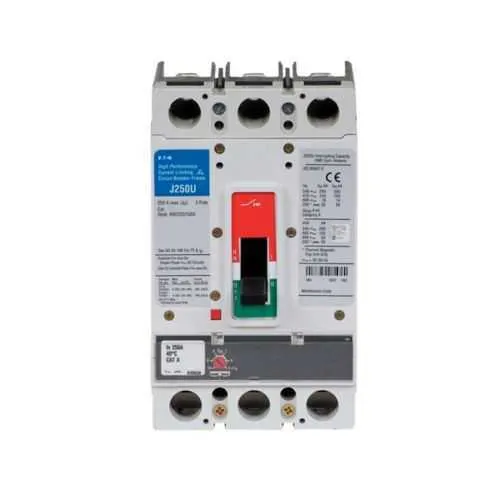

Eaton JGU3250FAGC Molded Case Circuit Breaker - UL Listed
Part Number: JGU3250FAGC
Quick Summary
Eaton JGU3250FAGC molded case circuit breaker delivers reliable overload and short-circuit protection for industrial panels and equipment. For engineers facing nuisance trips during startup or surge, the combination of fixed thermal trip and adjustable magnetic trip improves selectivity and uptime. The unit is CE marked, UL listed, and IEC rated with CSA certification, supporting global compliance across panels and machines. This Series G MCCB offers 250 A at 600 Vac with robust interrupt ratings, making it a cost-effective choice for panel protection and machine safety in automation environments.
Product Information
Extended Description
JGU3250FAGC Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Three-pole, 250A, 600 Vac, 200 kAIC at 240 Vac, 150 kAIC at 480 Vac, 50 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 100% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGU3250FAGC
UPC
786685581637
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated CSA Certified UL Listed
Type
Complete breaker
Amperage Rating
250 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50 to 60 Hz
Mounting hardware
Metric
Interrupt rating
150 kAIC at 480 Vac 50 kAIC at 600 Vac 200 kAIC at 240 Vac
Number of poles
Three-pole
