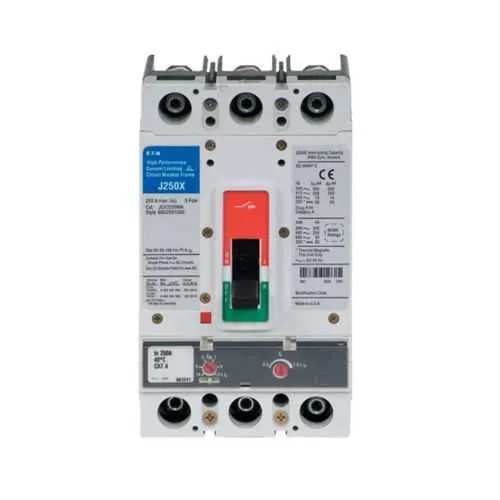

Eaton JGX3100FAG Complete MCCB - UL Listed, 3-Pole 100A
Part Number: JGX3100FAG
Quick Summary
Eaton Series G complete molded case circuit breaker provides overload protection for industrial power panels. This model addresses common nuisance trips and limited selectivity across feeders by offering a fixed thermal and adjustable magnetic trip. It is IEC Rated, UL Listed, CSA Certified, and CE Marked, ensuring broad regulatory compliance for global installations. Designed for control panels and motor control centers, it supports reliable operation in demanding environments while simplifying panel design, maintenance, and future upgrades with compatible accessories and standardized form factors.
Product Information
Extended Description
JGX3100FAG Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Three-pole, 100A, 600 Vac, 250 Vdc, 200 kAIC at 240 Vac, 200 kAIC at 480 Vac, 50 kAIC at 600 Vac, Line and load, 50/60 Hz, 80% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGX3100FAG
UPC
786685126661
Product Length/Depth
3.44 in
Product Height
7 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated UL Listed CSA Certified
Type
Complete breaker
Amperage Rating
100 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Rating
80% rated
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50/60 Hz
Interrupt rating
50 kAIC at 600 Vac 200 kAIC at 480 Vac 200 kAIC at 240 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - JGX3100FAG
Eaton Specification Sheet - JGX3100FAG
Eaton Specification Sheet - JGX3100FAG
Selling Policy 25-000 - Distribution and Control Products and Services
The JGX3100FAG uses a JG frame complete breaker with three poles and line/load terminals, delivering reliable protection in compact spaces. Feature to benefit: fixed thermal + adjustable magnetic trip enables precise coordination and faster response to faults, reducing downtime and equipment wear in panel assemblies. Application context: ideal for control panels and MCCs in manufacturing lines where selective protection and predictable trip behavior matter for uptime. The 100 A rating paired with 600 Vac / 250 Vdc voltage support protects feeders and motors while maintaining compatibility with standard power distribution schemes. The Series G design, 50/60 Hz operation, and 80% rated performance support energy management goals without oversizing equipment. With interrupt ratings up to 50 kAIC at 600 Vac and 200 kAIC at 480/240 Vac, it safeguards critical loads in high fault-current environments. Accessories like high-performance handles and plug-in adapters extend lifecycle and serviceability, reducing maintenance cost. The unit ships with a one-year warranty under Eaton policy, reinforcing total cost of ownership benefits.
Get a Quick Quote for a Eaton JGX3100FAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGX3100FAG?
Enquire Now
FAQs
Install the JGX3100FAG as a three-pole unit in a compatible control panel or MCC enclosure using its line and load terminals. Ensure proper torque on connections, confirm correct mounting within the Series G footprint, and verify compatible accessories such as handles or plug-in adapters. Follow Eaton installation guidelines to maintain NRTL certifications and ensure proper coordination with adjacent protective devices.
Key specs include three poles, 100 A rating, voltage ratings of 600 Vac and 250 Vdc, and a T185 trip type. It operates at 50/60 Hz with an interrupt rating of 50 kAIC at 600 Vac and 200 kAIC at 480/240 Vac, while being 80% rated. These specs support safe overload and short-circuit protection in industrial panels and MCCs.
Yes. The JGX3100FAG is designed for Series G compatibility, including high-performance operating handles, plug-in adapters, and other MCCB accessories. It uses line and load terminals suitable for standard wiring practices, enabling easier field installation and maintenance while preserving selective coordination and compliance with Series G product aids.
The unit is IEC Rated, UL Listed, and CSA Certified, with CE marking for compliance in many global markets. These certifications support regulatory acceptance, safer operation, and easier cross-border procurement for industrial facilities and panel shops.
The JGX3100FAG offers predictable protection with low nuisance trips, reducing unplanned downtime and extending motor life. Its robust Series G design and available accessories simplify maintenance and upgrades, while the one-year warranty adds total-cost-of-ownership value and support for long-term reliability in manufacturing and process environments.
