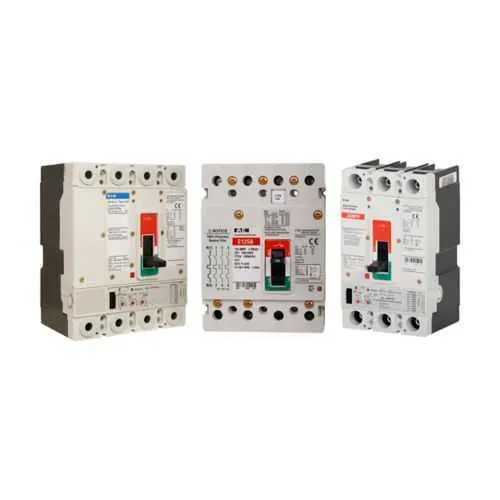

Eaton JGX8250AAG Complete MCCB - UL Listed, 600V

The JGX8250AAG uses the JG frame to deliver a complete molded case breaker in a compact footprint. This four-pole unit integrates line and load terminals with a complete breaker assembly, simplifying panel wiring and improving coordination across feeders. In industrial panels and control enclosures, that means faster installation, fewer spare parts, and easier future upgrades or retrofits in space-constrained environments. Its metric mounting is compatible with standard DIN rails and panel supports, reducing installation error and equipment misalignment. Adjustable thermal and magnetic trip lets you tailor protection to motor loads and feeder circuits. The result is improved selectivity and reduced nuisance trips, which translates to less process downtime and longer equipment life. For systems with diverse loads and varying inrush characteristics, you can dial in response curves to protect cables and devices without sacrificing productivity. Rated for 250 A at 600 Vac with high interrupt ratings—50 kAIC at 600 Vac and 200 kAIC at 415/480 Vac (and 200 kAIC at 240 Vac)—this MCCB provides robust fault handling across applications. With four-pole construction and metric mounting, it supports reliable fault isolation and safe disconnection in motor control centers, panel boards, and machine interfaces, even under high short-circuit scenarios. Line and load terminals and metric mounting enable straightforward installation in standard panels and cabinets, while maintaining tight conductor routing and secure terminations. The device is CE marked and UL Listed with CSA certification, ensuring regulatory compliance globally and simplifying procurement for multinational projects. Its dimensions (3.57 in depth, 5.34 in height and width) and 8 lb weight help engineers plan space and weight budgets in equipment racks. Extended warranty terms—one year from installation or eighteen months from shipment—help with maintenance budgeting and service planning. Eaton backs Series G with comprehensive product literature, service centers, and practical application notes, helping technicians diagnose trips, perform upgrades, and maximize return on investment in automation and process industries.
