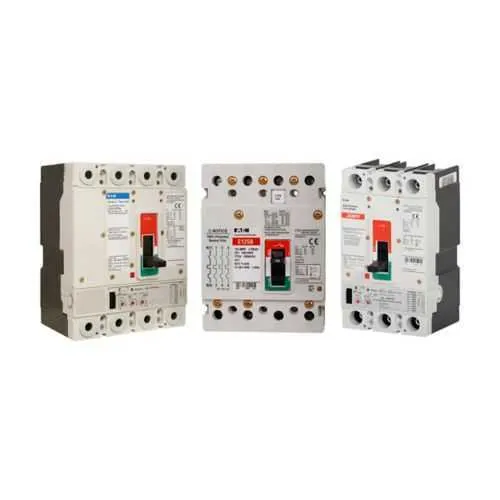

Eaton JGX9100AAG Complete MCCB - UL Listed, 200 kAIC

Feature → Business Impact → Application: The 100 A rating combined with 600 Vac / 250 Vdc protection enables reliable safeguarding of industrial feeders, reducing equipment damage and unplanned downtime in motor start-ups and line feeds. Application: control panels, conveyors, and machine feeds in manufacturing environments. The adjustable thermal and magnetic trip reduces nuisance trips during load changes, delivering smoother startup and enhanced uptime. Application: automation lines with varying loads and motors. The four-pole, line-and-load terminal design ensures balanced, straightforward wiring for 3-phase systems while preserving neutral integrity. Application: panel retrofits and new builds using the Series G family. The 200 kAIC interrupt rating at 240 Vac and 480 Vac provides robust fault current protection, minimizing fault energy and downstream damage. Application: high-current industrial drives. Compact 3.44 in depth, 7 in height, 5.34 in width, and 8 lb weight simplify installation in space-constrained panels. Application: new installations and space-limited panels. Certifications UL Listed, IEC Rated, CSA Certified, CE Marked support global compliance, reducing procurement risk across sites. Application: multinational facilities and regulated industries.
