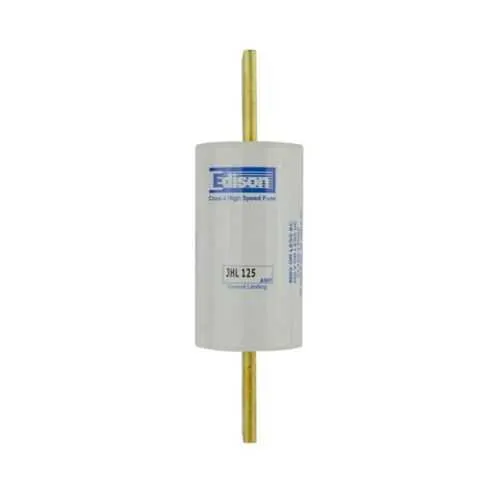

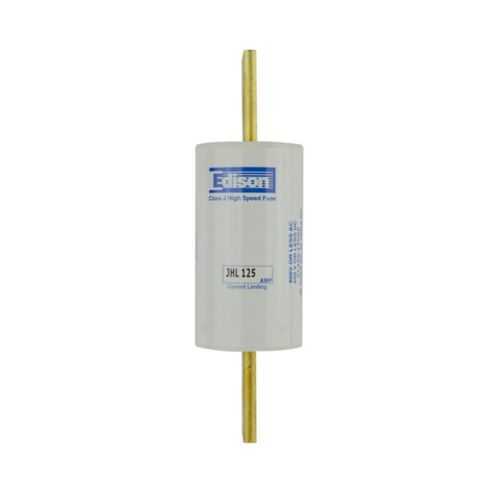

Eaton JHL125 Edison fuse - 200 kAIC UL Listed
Part Number: JHL125
Quick Summary
The Eaton JHL125 Edison fuse provides high-speed overcurrent protection for power semiconductor devices in industrial systems. Engineers often contend with nuisance trips and downtime when protection is undersized or misapplied. This fuse carries UL Listed, CSA Certified, and CE RoHS compliance, supporting global compliance and customer audits. With standard 5-pack packaging and broad compatibility with Eaton Bussmann catalogs, it offers straightforward installation, consistent electrical protection, and lower total cost of ownership across distributed automation projects.
Product Information
Extended Description
JHL125 Eaton: Eaton Edison JHL high speed fuse, 600 Vac, 450 Vdc, 125A, 200 kAIC, Non Indicating, Melamine tube with silver fuse element
Product Name
Eaton Edison series JHL fuse
Catalog Number
JHL125
UPC
782634107057
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified UL Listed
Amperage Rating
125 A
Interrupt rating
200 kAIC
Voltage rating
600 Vac, 450 Vdc
Material
Melamine tube with silver fuse element
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
5
Used with
Power semiconductor devices
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - JHL125
Feature: High-speed protection enables rapid isolation of fault currents, reducing energy dump into sensitive power electronics. Business Impact: Minimizes device damage and downtime, improving line uptime and maintenance windows. Application: Drive circuits and power semiconductor devices in industrial automation. Feature: Amperage rating of 125 A with voltage rating of 600 Vac / 450 Vdc. Business Impact: Suitable for common industrial loads, enabling unified stocking and fewer part swaps. Application: feeders, inverters, and power electronics modules. Feature: Interrupt rating of 200 kAIC. Business Impact: Enhanced fault tolerance and safety margin in high-short-circuit environments. Application: high short-circuit industrial feeders and drives. Feature: Melamine tube with silver fuse element; Non Indicating indicator. Business Impact: Reliable, low-maintenance operation in enclosed spaces with minimal visual clutter. Application: fielded installations in compact enclosures. Feature: Compliance portfolio CE Marked RoHS, CSA Certified, UL Listed. Business Impact: Streamlined regulatory acceptance and global procurement. Application: multi-region rollout and audits. Feature: Packaging and compatibility: Standard packaging with quantity of 5; Used with power semiconductor devices. Business Impact: Easy stocking, faster replacement cycles, and supply chain efficiency. Application: OEMs and contractors delivering modular automation systems.
Get a Quick Quote for a Eaton JHL125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JHL125?
Enquire Now
FAQs
JHL125 is a non-indicating, 125 A fast-acting fuse designed for power semiconductor devices. It uses standard packaging and is compatible with common Bussmann/Eaton catalog practices, simplifying field installation in drives and power electronics enclosures.
Key specs are 125 A amperage rating, 600 Vac / 450 Vdc voltage rating, and a 200 kAIC interrupt rating. It is a high-speed fuse built for protection of power semiconductor devices in industrial systems.
JHL125 is optimized for protecting power semiconductor devices and drives. While it supports 600 Vac circuits, it is intended for fast protection of semiconductor-based loads rather than direct motor protection in all motor circuits.
JHL125 is UL Listed, CSA Certified, and CE Marked RoHS Compliant, helping meet regulatory requirements across major markets and simplifying supplier qualification.
The high-speed 125 A fuse reduces fault energy and downtime, lowers replacement costs, and enables standard-pack stocking (five per unit). This translates to shorter maintenance cycles and improved system reliability for power electronics in automation projects.
