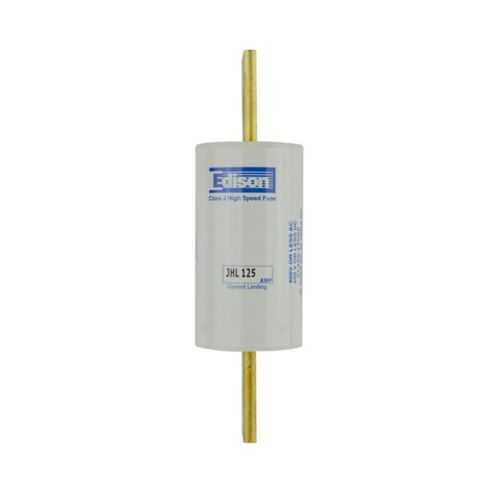

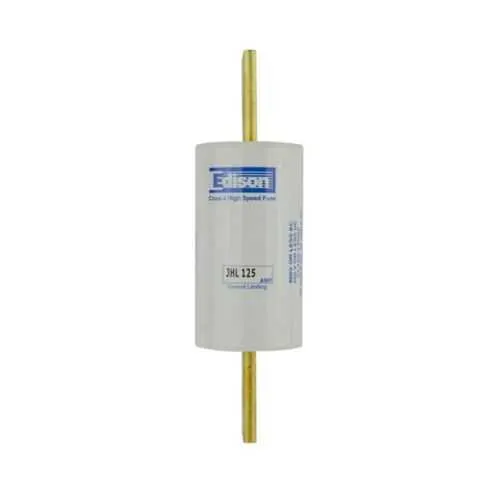

Eaton JHL150 Fuse - 200 kAIC, 600 Vac, UL Listed
Part Number: JHL150
Quick Summary
The Eaton Edison JHL fuse is a high-speed protective device designed for power semiconductor devices in industrial power electronics. Engineers often struggle with slow protection, nuisance trips, and difficult sourcing when drives and inverters demand reliable fast-acting fuses. This model carries UL Listed, CSA Certified, and CE RoHS compliance, supporting global installation and regulatory alignment. With 150 A, a 600 Vac / 450 Vdc rating and a robust 200 kAIC interrupt capacity, it delivers rapid fault clearing under transient conditions, aligning with demanding industrial safety standards. The JHL150’s non-indicating design paired with a melamine tube and silver fuse element simplifies maintenance and stocking while integrating cleanly with Eaton Edison systems.
Product Information
Extended Description
JHL150 Eaton: Eaton Edison JHL high speed fuse, 600 Vac, 450 Vdc, 150A, 200 kAIC, Non Indicating, Melamine tube with silver fuse element
Product Name
Eaton Edison series JHL fuse
Catalog Number
JHL150
UPC
782634107071
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
150 A
Interrupt rating
200 kAIC
Voltage rating
600 Vac, 450 Vdc
Material
Melamine tube with silver fuse element
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
5
Used with
Power semiconductor devices
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - JHL150
High interrupt rating and voltage specification enable rapid fault clearance, protecting downstream drives and minimizing unplanned downtime. For power electronics such as motor drives and inverters, the JHL150 delivers dependable protection at 150 A with 600 Vac and 450 Vdc ratings, and a 200 kAIC interrupt capacity. This performance supports selective tripping and helps prevent damage to semiconductor devices during transient events, aligning with demanding industrial safety standards. Non-indicating design and robust construction simplify field installation and maintenance. The absence of a visual fuse indicator reduces false alarms in crowded panels, while the melamine tube and silver fuse element provide reliable current interruption under fault conditions. This combination means technicians spend less time diagnosing indicator failures and more time on productive tasks, improving overall maintenance efficiency. Global compliance and trusted sourcing streamline procurement across multiple sites. UL Listed and CSA Certified credentials, along with CE RoHS compliance, simplify qualification in North America, Europe, and beyond. Buyers gain assurance that the JHL150 meets safety and environmental requirements, reducing audit delays and accelerating project timelines in regulated industries. Compatibility and packaging are tailored for easy rollout. The JHL150 is designed to complement Eaton Edison systems and is shipped in a practical 5-pack, supporting stocking strategies and quick replacements. Its compact form and straightforward installation reduce panel redesigns and downtime when swapping aging fuses in critical power protection circuits. High-quality materials and industry-appropriate ratings deliver long-term reliability. Melamine tube construction with a silver fuse element offers stable performance in demanding temperatures, while the 150 A rating and 200 kAIC interrupt capability ensure consistent protection across a wide load spectrum. This fuse line supports total cost of ownership reductions by limiting device failures and revision cycles.
Get a Quick Quote for a Eaton JHL150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JHL150?
Enquire Now
FAQs
JHL150 is designed for the protection of power semiconductor devices in industrial power electronics, including motor drives, inverters, and DC link protection. It aligns with Eaton Edison series protection schemes and fits panels requiring fast, high-current fusing at 600 Vac and 450 Vdc. The 5-pack packaging and standard cataloging simplify inventory and field replacements for OEMs and maintenance teams.
Key electrical ratings for the JHL150 are 150 A amperage, 200 kAIC interrupt rating, and voltage ratings of 600 Vac and 450 Vdc. It is a non-indicating fuse built with a melamine tube and silver fuse element, providing predictable performance during fault events typical in power electronics.
Yes, the JHL150 is UL Listed and CSA Certified, with CE Marked RoHS compliance. These certifications help meet regulatory requirements in North America and Europe, facilitate supplier qualification, and support compliance-driven procurement for global projects in manufacturing, energy, and process industries.
Best-use scenarios include protecting power semiconductor devices in motor drives, inverters, and other high-speed switching power circuits. The JHL150’s 150 A rating, 600 Vac/450 Vdc capability, and 200 kAIC interrupt capacity enable rapid fault clearance, reducing device damage and downtime while maintaining safe and compliant operation in demanding industrial environments.
Packaging details include standard packaging of five fuses per order, catalog number JHL150, and compatibility with Eaton Edison protection systems. Availability through global distributors is supported by UL Listed and CSA Certified credentials, and the RoHS compliance ensures easy integration into regulated manufacturing environments. This packaging strategy minimizes stocking variance and accelerates maintenance turnaround when replacements are required.
