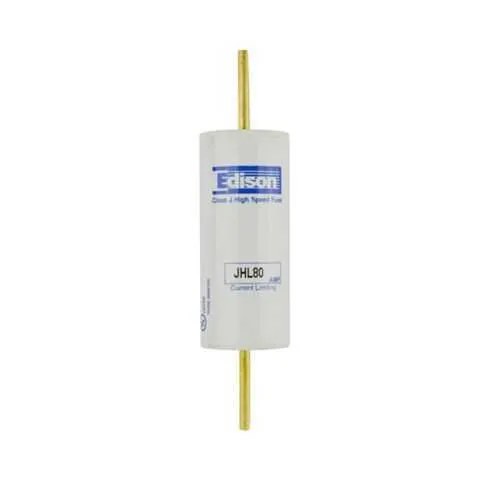

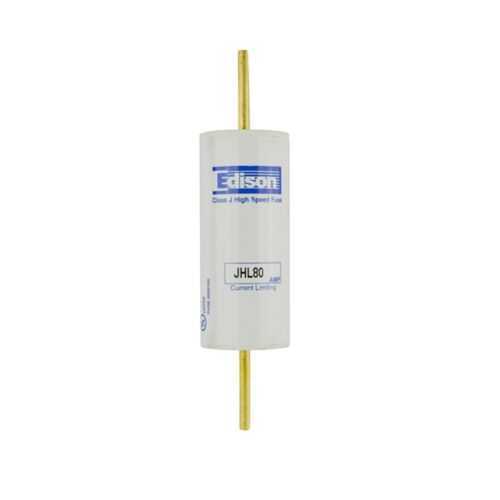

Eaton JHL25 Fuse - UL Listed, CSA Certified, RoHS Compliant
Part Number: JHL25
Quick Summary
Eaton Edison JHL25 fuse is a high-speed protection device designed for power semiconductor circuits in industrial automation. Engineers often struggle with nuisance outages and unreliable protection that can disrupt critical processes. It carries UL Listed, CSA Certified and CE Marked RoHS Compliant certifications to support global compliance on manufacturing floors and data centers. This fuse delivers robust electrical ratings in a compact form, enabling easy integration with power electronics and motor-drive assemblies. With standard packaging and non-indicating operation, it helps streamline procurement and maintenance while delivering predictable protection for sensitive devices. By aligning with Edison series components, it supports scalable, reliable protection across multiple applications inside modern industrial environments.
Product Information
Extended Description
JHL25 Eaton: Eaton Edison JHL high speed fuse, 600V, 25A, 200 kAIC, Non Indicating, Melamine tube with silver fuse element
Product Name
Eaton Edison series JHL fuse
Catalog Number
JHL25
UPC
782634107149
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
25 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Melamine tube with silver fuse element
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
10
Used with
Power semiconductor devices
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - JHL25
Feature is high interrupt rating of 200 kAIC and 600 V/25 A electrical capability, delivering a reliable fault-clearing performance that minimizes downstream damage. The business impact is reduced downtime, lower repair costs, and improved equipment longevity in drives and power electronics applications. This is applied in power semiconductor devices and motor-drive systems where rapid fault clearing protects costly power stages and reduces unplanned outages. Feature is non-indicating status, enabling cleaner panel design and reducing false alarms; the business impact is simpler monitoring and maintenance planning, with upstream indicators used as needed in controlled environments. Feature is melamine tube with silver fuse element, delivering consistent thermal handling and fast clearing; the business impact is predictable protection under peak fault currents, improving uptime in high-demand production lines. Feature is standard packaging with ten units per package, improving procurement efficiency and inventory planning for maintenance teams. Application-wise, these traits support scalable protection across multiple Edison-series products and common industrial power electronics architectures.
Get a Quick Quote for a Eaton JHL25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JHL25?
Enquire Now
FAQs
The JHL25 is part of the Eaton Edison series and is designed for power semiconductor devices in industrial power electronics. It is commonly used with motor drives and drives-based control cabinets that require 600 V, 25 A protection with up to 200 kAIC interrupt capability, and it pairs with standard Edison-series fuse holders.
The JHL25 fuse is rated for 600 V, 25 A, and offers an interrupt rating of 200 kAIC. It is a high-speed, non-indicating fuse with a melamine tube and silver fuse element suitable for protection of power semiconductor devices.
Yes. It is specifically designed for power semiconductor devices used in industrial drives and power electronics, providing fast fault clearance and robust protection against high-energy faults typical in motor control and drive systems.
The JHL25 fuse is UL Listed, CSA Certified, and CE Marked RoHS Compliant, supporting global compliance requirements for electrical protection components used in diverse industrial environments.
The fuseās high interrupt rating and fast-clearing performance reduce downstream damage and downtime, contributing to lower repair costs and improved uptime. Packaging of 10 units per package helps with stocking and procurement efficiency, while non-indicating operation simplifies panel design and maintenance planning when combined with appropriate upstream monitoring.
