Eaton JHL80 Edison High Speed Fuse - UL Listed
Part Number: JHL80
Quick Summary
The Eaton JHL80 Edison high-speed fuse protects power semiconductor devices in industrial drives and switchgear. Engineers often wrestle with misapplied fuses that cause nuisance trips or costly downtime when protection isn’t matched to load or fault current. This model delivers robust protection with a 600 Vac/450 Vdc rating and a 200 kAIC interrupt rating, backed by UL Listed, CSA Certified, and CE marked compliance along with RoHS. It is designed for power electronics applications and fits Eaton's Edison class J family, supporting reliable integration with power modules and drives. By combining strict regulatory compliance with a compact melamine tube design, it reduces spare-part variety and lowers total cost of ownership.
Product Information
Extended Description
JHL80 Eaton: Eaton Edison JHL high speed fuse, 600 Vac, 450 Vdc, 80A, 200 kAIC, Non Indicating, Melamine tube with silver fuse element
Product Name
Eaton Edison series JHL fuse
Catalog Number
JHL80
UPC
782634107347
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
80 A
Interrupt rating
200 kAIC
Voltage rating
600 Vac, 450 Vdc
Material
Melamine tube with silver fuse element
Packaging type
Standard
Fuse indicator
Non Indicating
Quantity
5
Used with
Power semiconductor devices

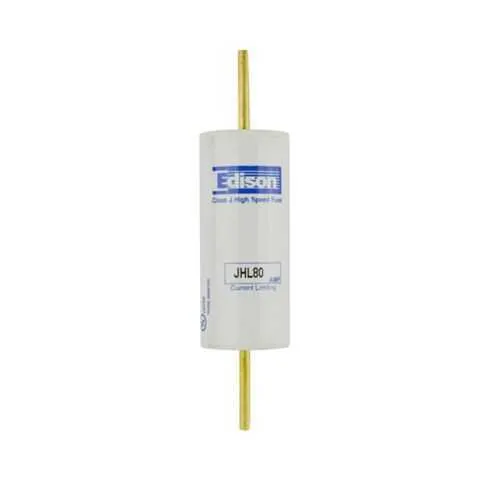

JHL80~Edison High Speed Class J Fuse

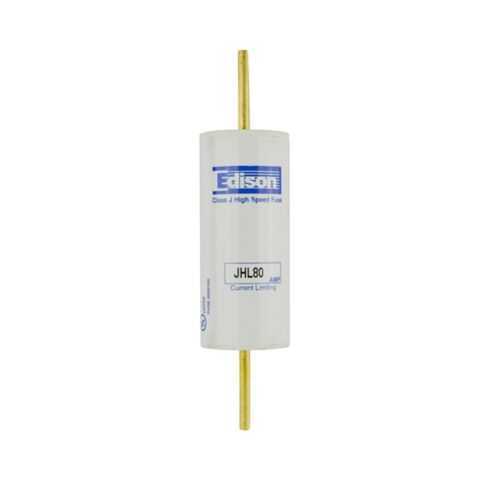

JHL80~Edison High Speed Class J Fuse
Bussmann series Fuseology
Eaton Specification Sheet - JHL80
Feature: 80 A current rating, 600 Vac / 450 Vdc voltage rating, 200 kAIC interrupt rating. Business Impact: Fast fault clearing protects downstream equipment, minimizes arc flash risk, and reduces downtime costs. Application: Protects power semiconductor devices in industrial drives and inverter assemblies. Feature: Non-indicating design. Business Impact: Simplifies replacement and stocking, lowers maintenance complexity, and reduces false indications in crowded panel spaces. Application: Routine service and field replacements in automation cabinets. Feature: Melamine tube with silver fuse element. Business Impact: High-temperature resilience and reliable current interruption under fault conditions, extending component life. Application: High-demand motor drives and power electronics. Feature: RoHS compliant, CE marked, UL Listed, CSA Certified. Business Impact: Regulation-ready for global deployments, smoother procurement, and reduced compliance risk. Application: Global panel builds and multi-region deployments. Feature: Standard packaging (Quantity: 5). Business Impact: Streamlined logistics and inventory planning, faster reorder cycles. Application: OEM and integrator stocking for Edison series replacements. Feature: Used with power semiconductor devices. Business Impact: Ensures compatibility with drives and power electronics, enabling predictable protection strategies. Application: Industrial automation fleets and energy-intensive equipment.
