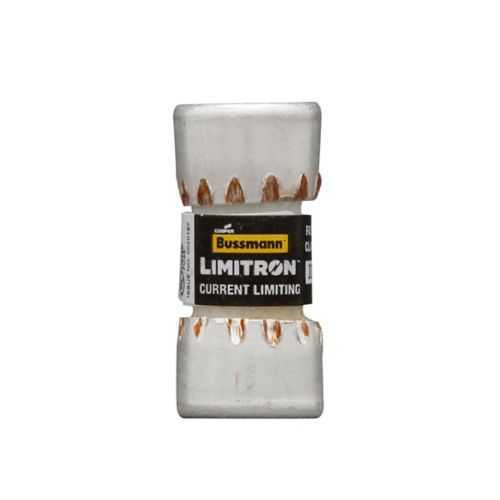

Eaton JJN-15 Fuse - Class T, 20 kAIC at 160 Vdc
Part Number: JJN-15
Quick Summary
Eaton JJN-15 fuse provides current-limiting protection for low-voltage drives and industrial control panels. Designers and maintenance teams often face nuisance tripping, drive faults, and downtime when protection devices miscoordinate with VFDs. This Class T fuse is CE marked and RoHS compliant, aligning with global safety and environmental standards. With ferrule-end connections and a non-indicating indicator, it enables quick field replacement and reliable protection across industrial electrical systems, helping OEMs and maintenance teams reduce mean time to repair and extend equipment life. The Bussmann series branding adds proven reliability in harsh manufacturing environments, while compact packaging supports easy panel integration and spare part optimization.
Product Information
Extended Description
JJN-15 Eaton: Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 15 A, Class T, Non-indicating, Ferrule end x ferrule end, 20 kAIC at 160 Vdc, 200 kAIC at 300 V, Standard, 10, 300 V, 160 Vdc
Product Name
Eaton Bussmann series JJN fuse
Catalog Number
JJN-15
UPC
051712627153
EAN
5027590508629
Product Length/Depth
0.42 in
Product Height
0.87 in
Product Width
0.42 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
15 A
Interrupt rating
20 kAIC at 160 Vdc 200 kAIC at 300 Vac
Voltage rating
300 Vac, 160 Vdc
Packaging type
Standard
Class
Class T
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
JJN-100~TRON FAST ACTING FUSE CLASS T
Feature → Business Impact → Application: The JJN-15 is a current-limiting fuse with a 15 A rating, delivering fast fault clearing that minimizes damage to downstream equipment and reduces downtime in VFD protection schemes. This translates to lower maintenance costs and increased line uptime for motor control centers and PLC-integrated panels. Feature → Application: Class T construction provides robust short-circuit protection for drives operating in dynamic loads, especially in manufacturing and process environments where voltage transients are common. Feature → Compatibility: Ferrule end x ferrule end connections allow quick, reliable field replacement and straightforward installation in standard Bussmann series holders, supporting compact panel layouts and stock optimization. Feature → Compliance: CE Marked and RoHS compliant, ensuring regulatory alignment for global deployments and simplified procurement across international sites. Feature → Practicality: Non-indicating indicators reduce panel clutter while keeping the fuse footprint tight and maintenance straightforward in high-density control panels.
Get a Quick Quote for a Eaton JJN-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJN-15?
Enquire Now
FAQs
JJN-15 is a Class T current-limiting fuse with ferrule-end x ferrule-end connections designed for 300 Vac / 160 Vdc applications. It fits standard Bussmann series holders and is suited for protecting low-voltage drives and control panels in industrial environments.
The JJN-15 has a 15 A amperage rating, an interrupt rating of 20 kAIC at 160 Vdc, and 200 kAIC at 300 Vac, with voltage ratings of 300 Vac and 160 Vdc.
Yes. It is specifically designed for VFD line protection with Class T protection, RoHS and CE compliance, ferrule-end connections, and a compact form factor suitable for dense panel environments found in manufacturing and process industries.
The JJN-15 is CE marked and RoHS compliant, ensuring European safety standards and restricted hazardous substances are met.
The fuse is non-indicating, comes in standard packaging, and is supplied in quantities of 10 per pack. Its ferrule-end design enables quick field replacement, reducing downtime and simplifying spare-part management.
