Eaton JJN-225 Fuse - 200 kAIC at 300 Vac; 20 kAIC at 160 Vdc

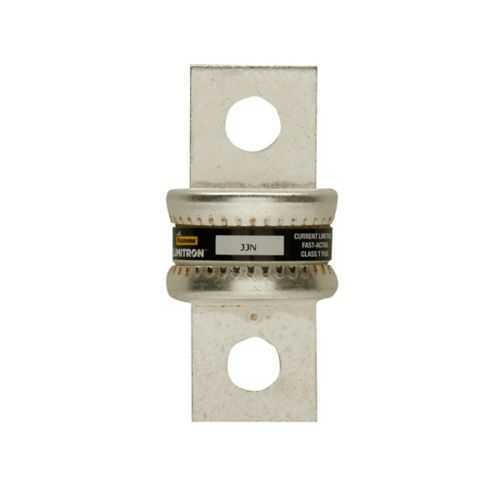

Part Number: JJN-225
Quick Summary
The Eaton JJN-225 fuse is a high-current, current-limiting device designed for motor drive protection in industrial systems. It helps address nuisance trips and under-protection by providing precise interruption behavior compatible with VFDs and servo systems. With CE marking and RoHS compliance, along with Class T construction, it meets regulatory demands while delivering reliable protection. The 225 A rating, 300 Vac / 160 Vdc capability, and bolted blade ends simplify sourcing, installation, and lifecycle planning for panel builders and OEMs.
Product Information
Extended Description
JJN-225 Eaton: Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 225 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 300 V, 20 kAIC at 160 Vdc, Standard, 1, 300 V, 160 Vdc
Product Name
Eaton Bussmann series JJN fuse
Catalog Number
JJN-225
UPC
051712627221
Product Length/Depth
2.75 in
Product Height
1 in
Product Width
1 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
225 A
Interrupt rating
200 kAIC at 300 Vac 20 kAIC at 160 Vdc
Voltage rating
300 Vac, 160 Vdc
Packaging type
Standard
Class
Class T
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Quantity
1
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
JJN-100~TRON FAST ACTING FUSE CLASS T
Feature: Current-limiting performance reduces arc energy and protects conductors during faults. Business Impact: Shortens downtime and minimizes wiring damage, extending equipment life in motor drives. Application: VFD line protection in MCCs and control panels. Feature: 225 A amperage with 200 kAIC at 300 Vac and 20 kAIC at 160 Vdc. Business Impact: Supports high-energy drives while maintaining selective coordination and fuse reliability. Application: Motor control centers and DC bus circuits. Feature: Class T fuse design with bolted blade end connections. Business Impact: Simplifies integration into existing switchgear and provides robust mechanical stability. Application: Bolted fuse replacements in electrical protection circuits and service panels. Feature: Compact footprint 2.75 in length, 1 in width, 1 in height, and 0.25 lb weight. Business Impact: Space-efficient installation reduces enclosure footprint and shipping costs. Application: Tight-panel installations and retrofit projects. Feature: Compliance and packaging details CE marked and RoHS compliant with standard packaging. Business Impact: Regulatory compliance and predictable procurement, easing global supply chain management. Application: Global manufacturing and assembly lines. Feature: Non-indicating fuse with standard packaging and 1 qty per package. Business Impact: Easy field replacement and minimal maintenance overhead. Application: Routine maintenance in automation plants.
