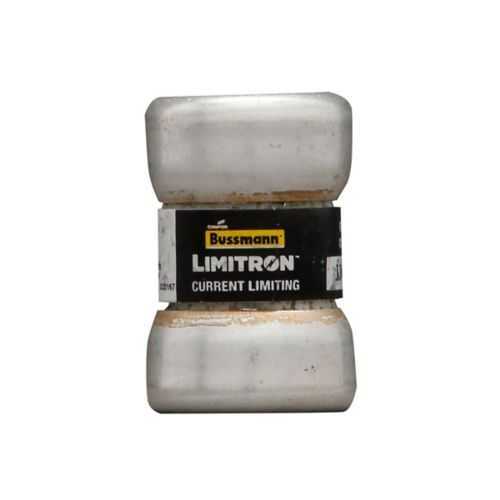

Eaton JJN-60 Fuse - Class T, 60 A, 20 kAIC 160 Vdc
Part Number: JJN-60
Quick Summary
Eaton JJN-60 fuse provides current-limiting protection for motor drives and low-voltage circuits in industrial equipment. Engineers often contend with nuisance trips and downtime when protection either under-clears faults or prolongs fault duration. The device is CE marked and RoHS compliant, supporting regulatory compliance in controlled environments, and it belongs to the Class T family for predictable performance. Its ferrule end connections and compact footprint simplify panel installation, while delivering reliable protection for drives and power electronics. With a 60 A rating and high interrupt ratings, this fuse aligns with scalable protection strategies for motor controls and drives. This combination of protection, compliance, and ease of procurement makes it a practical choice for manufacturing lines seeking uptime and cost efficiency.
Product Information
Extended Description
JJN-60 Eaton: Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 60 A, Class T, Non-indicating, Ferrule end x ferrule end, 20 kAIC at 160 Vdc, 200 kAIC at 300 V, Standard, 10, 300 V, 160 Vdc
Product Name
Eaton Bussmann series JJN fuse
Catalog Number
JJN-60
UPC
051712627016
Product Length/Depth
0.88 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
60 A
Interrupt rating
20 kAIC at 160 Vdc 200 kAIC at 300 Vac
Voltage rating
300 Vac, 160 Vdc
Packaging type
Standard
Class
Class T
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
JJN-100~TRON FAST ACTING FUSE CLASS T
Feature: Current-limiting design provides rapid fault current reduction, protecting conductors and equipment from thermal stress during short circuits. Business impact: The rapid clearance minimizes heat buildup, reduces arc energy, and lowers the risk of cascading failures in drives and power distribution. Application: Motor drives, conveyors, and packaging lines benefit from this reliable performance. Feature: Class T construction offers fast-acting protection in branch circuits. Business impact: Predictable clearing and coordination with upstream devices improve system uptime and simplify coordination studies. Application: Suitable for control panels and MCCs where compact fuses must fit in tight spaces. Feature: 60 A rating with 20 kAIC at 160 Vdc and 200 kAIC at 300 Vac provides robust fault handling. Business impact: This capacity supports drives with transient spikes while preserving insulation and protective devices. Application: VFD line protection and motor control circuits across manufacturing lines. Feature: Ferrule end connections enable secure, solder-free terminations. Business impact: Quick, reliable wiring that reduces installation time and field rework. Application: Panel wiring and control cabinets requiring durable crimped connections. Feature: Non-indicating design lowers part cost and simplifies integration in large panels. Business impact: Fewer components to stock, with status monitored upstream via PLCs or protection schemes. Application: High-density control panels where indication is provided elsewhere. Feature: Standard packaging of 10 pieces per pack supports efficient stocking and replenishment. Business impact: Improves inventory control and downtime planning for maintenance teams. Application: Industrial facilities, machine builders, and panel shops seeking consistent supply and regulatory compliance (CE, RoHS).
Get a Quick Quote for a Eaton JJN-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJN-60?
Enquire Now
FAQs
The JJN-60 uses ferrule end connections and a compact 0.88 in length, 0.56 in width, and 0.56 in height, making it suitable for control panels, MCCs, and drives where space is at a premium.
Amperage rating is 60 A with an interrupt rating of 20 kAIC at 160 Vdc and 200 kAIC at 300 Vac. Voltage ratings are 300 Vac and 160 Vdc, supporting both AC and DC protection needs.
Yes. The JJN-60 is a current-limiting Class T fuse designed for VFD line protection and motor control circuits, helping to limit fault energy and protect downstream devices.
Yes, the fuse is CE marked and RoHS compliant, ensuring regulatory alignment for European installations and environmentally responsible waste handling.
The device is listed as Standard packaging with a quantity of 10 per package, featuring ferrule end-to-end connections for quick installation in control panels.
