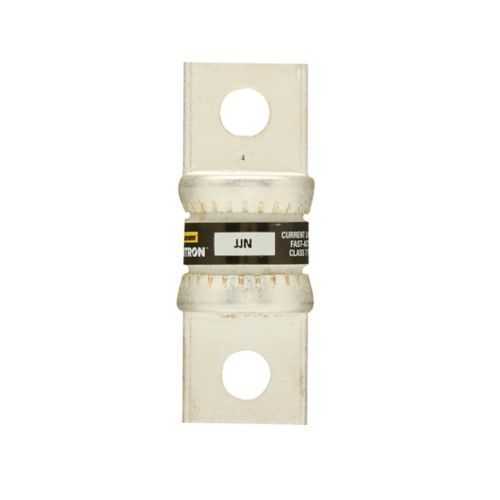

Eaton JJN-70 Fuse for Class T Protection - CE RoHS Compliant
Part Number: JJN-70
Quick Summary
The Eaton JJN-70 fuse is a current-limiting protection device designed for VFD line protection in industrial drives. Engineers often contend with nuisance trips during startup surges that disrupt production and complicate maintenance planning. It is CE marked and RoHS compliant, and aligns with Bussmann Class T protection principles to deliver reliable interrupt performance. With bolted blade-end connections and a compact form factor, it simplifies installation, reduces panel space needs, and lowers lifecycle costs for electrical protection systems.
Product Information
Extended Description
JJN-70 Eaton: Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 70 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 20 kAIC at 160 Vdc, 200 kAIC at 300 V, Standard, 5, 300 V, 160 Vdc
Product Name
Eaton Bussmann series JJN fuse
Catalog Number
JJN-70
UPC
051712627702
EAN
5027590508773
Product Length/Depth
0.75 in
Product Height
2.16 in
Product Width
0.001 in
Product Weight
0.78 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
70 A
Interrupt rating
20 kAIC at 160 Vdc 200 kAIC at 300 Vac
Voltage rating
300 Vac, 160 Vdc
Packaging type
Standard
Class
Class T
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Quantity
5
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
JJN-100~TRON FAST ACTING FUSE CLASS T
Feature: 70 A current rating with current-limiting behavior → Business Impact: Protects motor drives and power electronics from surge energy, reducing damage and downtime → Application: VFD feeds in manufacturing lines. Feature: High interrupt ratings of 20 kAIC at 160 Vdc and 200 kAIC at 300 Vac → Business Impact: Fast fault isolation minimizes collateral equipment impact and maintenance costs → Application: Heavy-duty industrial environments with high surge potential. Feature: Class T, non-indicating fuse with bolted blade end x bolted blade end → Business Impact: Reliable protection with robust mechanical mounting and straightforward replacement → Application: Panel assemblies needing durable, easy-to-service protection. Feature: Standard packaging of five units and clear general specifications → Business Impact: Streamlined procurement and consistent stock for maintenance teams → Application: OEM and aftermarket spares for electrical protection. Feature: Compliance and documentation support (CE, RoHS) → Business Impact: Simplified regulatory compliance and faster approval cycles → Application: Industrial facilities subject to RoHS and CE directives and audits.
Get a Quick Quote for a Eaton JJN-70
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJN-70?
Enquire Now
FAQs
Begin with power isolated and verify the circuit rating matches the 70 A amperage of the JJN-70. Align the bolted blade ends with the panel bus or fuse holder, tighten to the manufacturer’s torque spec, and ensure a clean, vibration-free mounting. Use the standard packaging (five units) to stock backups and simplify future replacements.
The JJN-70 provides a 70 A amperage rating with a current-limiting behavior, offering 20 kAIC at 160 Vdc and 200 kAIC at 300 Vac. The voltage rating is 300 Vac and 160 Vdc, enabling reliable protection for both AC drives and DC bus sections in industrial equipment.
Yes. The JJN-70 is designed for VFD line protection, delivering fast fault interruption and limiting arc energy in motor drive systems. Its Class T fast-acting behavior and bolted blade connections support reliable protection in harsh industrial environments commonly found in manufacturing settings.
The JJN-70 is CE marked and RoHS compliant, aligning with European regulatory requirements for electrical components. These certifications simplify compliance during audits and support procurement processes in facilities that mandate RoHS conformance and CE certification for electrical protection devices.
The JJN-70’s current-limiting action reduces harmful fault energy, lowering repair costs after faults and extending drive life. Its robust bolted-blade design provides durable service in vibration-prone panels, while standard packaging and readily available data sheets streamline maintenance planning and spare parts logistics, contributing to lower total cost of ownership.
