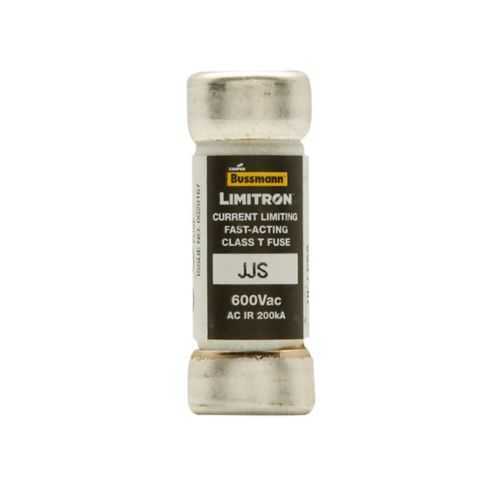

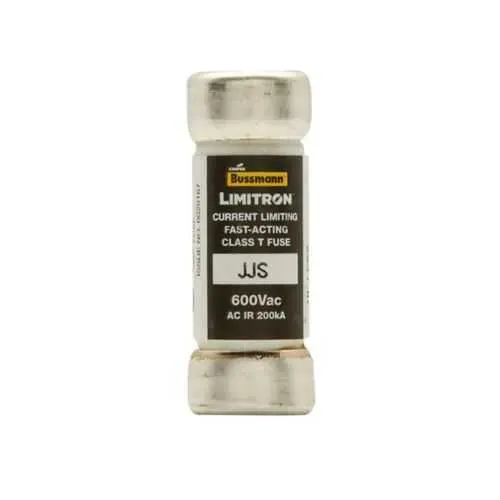

Eaton JJS-1 Fuse - Class T, 600V, 200 kAIC RoHS
Part Number: JJS-1
Quick Summary
JJS-1 fuse from Eaton delivers precise current-limiting protection for 600 V drives and control circuits. Engineers often wrestle with nuisance fuse blows in VFD-rich environments and tight enclosures; this compact Class T device minimizes that risk while saving valuable space. It features a current-limiting, very fast-acting design that clears faults quickly, reducing downstream heat and arc exposure. The JJS-1 carries a 200 kAIC interrupt rating at 600 V and is CE marked with RoHS compliance, supporting global safety and regulatory requirements. With a 1 A rating and ferrule-end connections, installation is straightforward and stocking is simpler for maintenance teams. The small footprint helps maintain IEC/UL compatibility while delivering dependable protection for motor drives and control panels.
Product Information
Extended Description
JJS-1 Eaton: Eaton Bussmann series JJS fuse, Current-limiting very fast acting fuse, Small footprint, VFD line protection, 1 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 V, Standard, 10, 600 V
Product Name
Eaton Bussmann series JJS fuse
Catalog Number
JJS-1
UPC
051712628082
EAN
5027590508803
Product Length/Depth
0.4 in
Product Height
0.56 in
Product Width
0.4 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class T
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Small footprint
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
JJS-100~TRON FAST ACTING FUSE CLASS T
Feature: Current-limiting, very fast-acting Class T fuse delivers rapid fault clearance, protecting downstream equipment. Business Impact: Minimizes conductor heating, reduces arc exposure, and lowers downtime and maintenance costs. Application: Ideal for motor drives, VFD interfaces, and 600 V control circuits in compact switchgear and panel assemblies. Feature: Ferrule-end connections provide secure terminations that resist vibration and loosening. Business Impact: Simplifies field installation and improves long-term reliability, reducing reworks. Application: Suitable for panel rails, junction boxes, and retrofit projects. Feature: 1 A amperage rating with a compact footprint (0.4 in x 0.4 in x 0.56 in). Business Impact: Frees space in crowded enclosures and streamlines parts stocking for service teams. Application: Small control panels, PLC cabinets, and drive enclosures. Feature: 200 kAIC interrupt rating at 600 V. Business Impact: High fault current capability protects sensitive drives and prevents cascading failures. Application: Heavy-start loads, motor drives, and high-energy circuits. Feature: Compliance and packaging: RoHS and CE marked; standard packaging of 10 units. Business Impact: Facilitates global procurement and regulatory compliance while enabling efficient stocking and logistics. Application: Enterprise-wide rollout in manufacturing lines and industrial facilities.
Get a Quick Quote for a Eaton JJS-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJS-1?
Enquire Now
FAQs
The JJS-1 uses ferrule-end terminations that require standard crimping tools and proper torque on ferrules to ensure secure, vibration-resistant connections. Mounting should maintain adequate clearance for heat dissipation and follow OEM enclosure guidelines. Verify compatibility with standard DIN-rail or panel-mill mounting as applicable and reference Eaton data sheets for recommended torque values.
A 200 kAIC interrupt rating means the fuse can safely interrupt high fault currents without catastrophic failure, protecting downstream components like drives, contactors, and wiring. This rating supports robust protection for motor drive startups and short-circuit events, reducing the risk of collateral damage and improving overall system reliability in high-energy applications.
Yes. The JJS-1 is a current-limiting, fast-acting Class T fuse designed for 600 V systems and VFD line protection. Its 1 A rating and 200 kAIC interrupt capability make it well-suited to protect drives, power supplies, and control panels from overloads while minimizing nuisance blows in demanding motor-drive environments.
The JJS-1 is CE marked and RoHS compliant, signaling adherence to EU safety, health, and environmental requirements. These certifications help ensure regulatory alignment for global deployments, facilitate supplier qualification, and support compliance audits in manufacturing facilities and international supply chains.
The JJS-1 is packaged standard, with 10 units per pack, enabling economical stocking for service needs and project builds. Standard packaging simplifies reorder points, reduces inventory complexity, and supports predictable lead times in maintenance depots and production lines.
