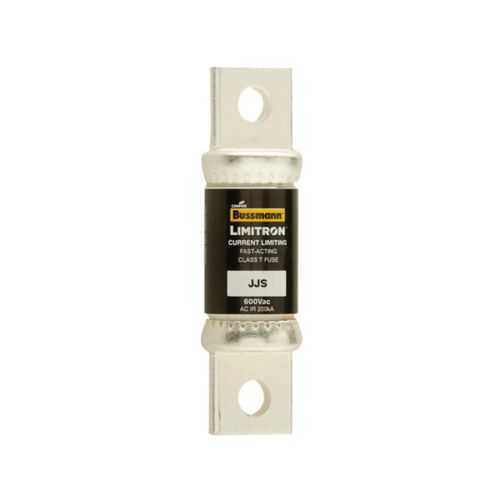

Eaton JJS-100 Fuse - Class T, 200 kAIC at 600V
Part Number: JJS-100
Quick Summary
The Eaton JJS-100 fuse is a current-limiting, Class T fuse designed for reliable protection in low-voltage electrical panels and drives. It helps engineers tame fault currents while keeping a compact footprint. This device is CE marked and RoHS compliant, delivering compliant protection for modern control systems. With a 100 A rating and a 200 kAIC interrupt capability at 600 V, it balances fast clearing with robust protection. For panel builders and integrators, the small form factor translates to denser layouts and easier wiring, while maintaining rugged, field-proven protection for VFDs and other power electronics.
Product Information
Extended Description
JJS-100 Eaton: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 100 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 5, 600 V
Product Name
Eaton Bussmann series JJS fuse
Catalog Number
JJS-100
UPC
051712628020
Product Length/Depth
2.95 in
Product Height
0.75 in
Product Width
0.75 in
Product Weight
0.0088 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
100 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class T
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Quantity
5
Special features
Small footprint
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
JJS-100~TRON FAST ACTING FUSE CLASS T
Feature: Current-limiting protection reduces arcing and damage during faults → Business Impact: Minimizes equipment downtime and extends component life, enabling higher uptime in automation lines and packaging systems. Application: Ideal for VFD-driven conveyors and hopper systems where quick fault isolation is critical. Feature: 100 A amperage rating with 200 kAIC interrupt rating at 600 V → Business Impact: Provides strong short‑circuit protection without nuisance trips, improving system reliability and safety margins in harsh industrial environments. Application: Suitable for motor controls and drives in process automation. Feature: Small footprint and bolted blade end x bolted blade end connections → Business Impact: Easier installation in crowded control cabinets, reduces panel depth, and simplifies field servicing. Application: Replacement in retrofit projects and new builds where space is at a premium. Feature: Class T fast-acting design with TRON fast-acting characteristics → Business Impact: Fast fault clearance protects wiring insulation and downstream devices, lowering maintenance costs and extending cable life. Application: Critical for sensitive control circuits and high inrush loads common to modern manufacturing lines. Feature: Standard packaging (5 per box) and non-indicating operation → Business Impact: Streamlines procurement and stock management, while non-indicating design minimizes visual clutter in control panels. Application: General-purpose protection in switchgear assemblies and industrial automation panels. Feature: Compliance and documentation (CE Marked, RoHS Compliant) → Business Impact: Simplifies regulatory compliance audits and supplier qualification for global projects. Application: Global deployments requiring RoHS and CE compliance across automation assets.
Get a Quick Quote for a Eaton JJS-100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJS-100?
Enquire Now
FAQs
The JJS-100 uses bolted blade end connections and a standard form factor designed for easy drop-in replacement in compatible Class T fuse holders. Its small footprint helps fit more components in crowded panels, while maintaining secure, vibration-resistant connections for reliable operation in industrial environments.
The JJS-100 is rated for 100 A with an interrupt rating of 200 kAIC at 600 V. This combination provides robust short-circuit protection while limiting fault current, reducing insulation stress on downstream equipment and enabling safer, more dependable drives and control circuits.
Yes. The JJS-100 features current-limiting action and a Class T fast-acting design, which is well-suited for VFD line protection. It minimizes arcing and stress on drive input wiring, helping to prevent nuisance trips and extending the life of drives and control wiring in demanding manufacturing settings.
Yes. The JJS-100 is CE marked and RoHS compliant, supporting regulatory compliance for many global manufacturing sites. This simplifies audits and supplier qualification for projects with strict environmental and safety standards.
The JJS-100 has a length of 2.95 in, a width of 0.75 in, and a height of 0.75 in, with a weight of 0.0088 lb. It is packaged as standard packaging, typically in quantities of five per sub-pack, which supports straightforward stocking and project budgeting.
