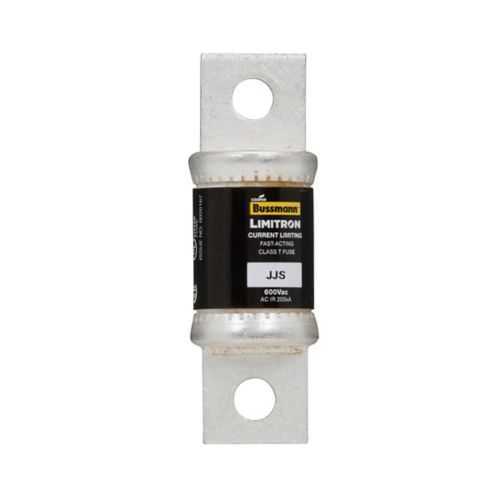

Eaton JJS-110 Fuse - Class T, 200 kAIC at 600V
Part Number: JJS-110
Quick Summary
The Eaton JJS-110 fuse is a current-limiting device designed to protect motor drives and power circuits in industrial applications. This compact solution addresses space constraints common in panel enclosures by delivering reliable overcurrent protection without sacrificing performance. The fuse carries a Class T rating and supports an interrupt rating of 200 kAIC at 600 V, with CE marking and RoHS compliance. For engineers, this means faster installation, reduced cabinet size, and improved system uptime. By specifying Bussmann series JJS protection, buyers gain a proven balance of protection, compatibility with bolted blade end connections, and the confidence to meet safety and environmental requirements in modern factories. This product complements broader electrical protection strategies and fits well with low-voltage fusing standards.
Product Information
Extended Description
JJS-110 Eaton: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 110 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V
Product Name
Eaton Bussmann series JJS fuse
Catalog Number
JJS-110
UPC
051712628112
Product Length/Depth
3.25 in
Product Height
0.88 in
Product Width
0.88 in
Product Weight
0.2 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
110 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class T
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Small footprint
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
JJS-100~TRON FAST ACTING FUSE CLASS T
Feature: Current-limiting design reduces fault energy to minimize arc flash and downstream damage; Business Impact: protects sensitive drives and motors, shortening unplanned downtime and lowering repair costs; Application: suitable for motor drives and VFD-based lines in manufacturing. Feature: Small footprint and bolted blade end connections enable quick installation in tight panel spaces; Business Impact: frees cabinet space, reduces wiring complexity, and speeds preventative maintenance checks; Application: ideal for retrofit projects and new panel builds in automation racks. Feature: Class T rating with 110 A and 600 V rating plus 200 kAIC interrupt capability; Business Impact: delivers high-current protection with reliable fault interruption, supporting uptime in heavy-duty processes; Application: protects power distribution and drive circuits in harsh industrial environments. Feature: Non-indicating design lowers panel clutter while CE Marked and RoHS Compliant; Business Impact: simplifies labeling and regulatory alignment, reducing compliance risk; Application: fits standard electrical cabinets and service bays in global facilities. Feature: Standard packaging (1 each) with documented specifications (3.25 in x 0.88 in x 0.88 in); Business Impact: easy procurement, consistent stocking, and predictable lead times; Application: suitable for maintenance inventories and OEM sourcing.
Get a Quick Quote for a Eaton JJS-110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJS-110?
Enquire Now
FAQs
JJS-110 is designed for bolted blade end connections, enabling straightforward field installation in space-constrained panels. Ensure correct orientation and mounting within standard electrical cabinets, verify clear labeling, and follow the manufacturer's instructions for securing the fusible link. Its compact footprint helps maximize available cabinet space while maintaining reliable electrical protection.
The JJS-110 provides an amperage rating of 110 A, a voltage rating of 600 V, and an interrupt rating of 200 kAIC at 600 V. It uses a Class T fuse design and is non-indicating. This combination supports robust protection for motor drives and power circuits while fitting within standard low-voltage panels.
Yes. The JJS-110 is explicitly suitable for VFD line protection, offering current-limiting performance to minimize fault energy and protect drives and upstream equipment. Its 3.25 in length and bolted blade ends support reliable integration into drive cabinets and panel boards commonly found in automation lines.
The JJS-110 is CE Marked and RoHS Compliant, ensuring regulatory alignment for European markets and reduced hazardous substance concerns. These certifications help facilities meet electrical safety and environmental requirements, supporting procurement decisions and simplifying audit processes for international projects.
Warranty is listed as Not Applicable, and the product is sold as a single fuse per package. For lifecycle management, replace the fuse at fault events or during preventive maintenance as part of your standard fusing strategy. Keeping an on-hand inventory of JJS-110 units supports rapid replacement and minimizes downtime.
