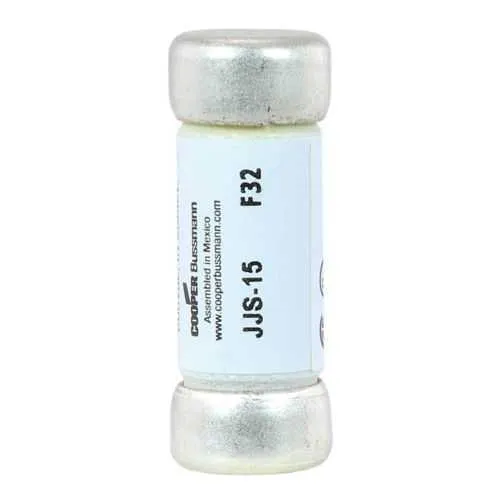

Eaton JJS-15 Fuse - 200 kAIC at 600 Vac, Class T
Part Number: JJS-15
Quick Summary
The Eaton Bussmann JJS fuse provides current-limiting protection for 600 V motor drives and panel applications. In modern automation, designers often struggle to protect VFD lines without expanding panel footprint or sacrificing serviceability. CE marking and RoHS compliance bolster reliability and regulatory alignment, while the 200 kAIC interrupt rating and Class T construction deliver robust fault protection. The JJS-15 supports compact installations with ferrule-end terminations and a small footprint, enabling efficient panel design and scalable protection strategies across motor control centers and automation cabinets.
Product Information
Extended Description
JJS-15 Eaton: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 15 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 V, Standard, 10, 600 V
Product Name
Eaton Bussmann series JJS fuse
Catalog Number
JJS-15
UPC
051712628150
Product Length/Depth
1.5 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.159 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
15 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class T
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Small footprint
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
JJS-100~TRON FAST ACTING FUSE CLASS T
Feature: Current-limiting protection with a 15 A rating; Benefit: Reduces fault energy and component stress, increasing drive uptime and extending equipment life; Application: Protects 3-phase VFD feeds in motor control centers, enabling safer high- surge environments. Feature: Class T fuse; Benefit: Fast-acting, reliable short-circuit response that minimizes collateral damage; Application: Power protection for drives and contactors in compact panels. Feature: 200 kAIC interrupt rating at 600 V; Benefit: High short-circuit withstand improves system resilience and reduces downstream protection requirements; Application: Industrial motor drives and line protection in challenging electrical environments. Feature: Ferrule end x ferrule end; Benefit: Ready-to-install connections with secure crimp terminations; Application: Standard panel mounting and cable routing in control enclosures. Feature: Small footprint and standard packaging (10 per pack); Benefit: Space-saving integration and streamlined procurement; Application: Retrofit projects and new builds in tight spaces.
Get a Quick Quote for a Eaton JJS-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JJS-15?
Enquire Now
FAQs
The JJS-15 features ferrule end x ferrule end terminations, enabling straightforward crimp connections to standard bus bars or wires. Its 1.5 in length and 0.56 in width/height support compact panel layouts, and the standard packaging of 10 units per package simplifies stocking for maintenance and spares programs.
The JJS-15 has an interrupt rating of 200 kAIC at 600 Vac, providing durable short-circuit withstand capability. This reduces fault energy exposure to downstream equipment, enhances protection for VFD drives, and helps maintain uptime in motor control circuits by containing arcing and damage during faults.
Yes. Designed as a current-limiting Class T fuse with 200 kAIC at 600 V, the JJS-15 is well-suited for VFD line protection. Its compact footprint and ferrule-end connections simplify installation in motor control panels, while its fast-acting protection minimizes collateral damage to drives and upstream power components.
The JJS-15 is CE marked and RoHS compliant, ensuring regulatory alignment for European installations and low-halogen safety considerations. These certifications support compliance documentation, supplier audits, and safer, environmentally responsible manufacturing practices across industrial facilities.
The JJS-15 comes in standard packaging with ten fuses per package, offering convenient stocking for maintenance programs. It carries a 15 A rating and a small form factor (1.5 in length, 0.56 in width/height) with ferrule-end terminations, making it suitable for quick replacements in existing panels and future-proofed panel upgrades.
