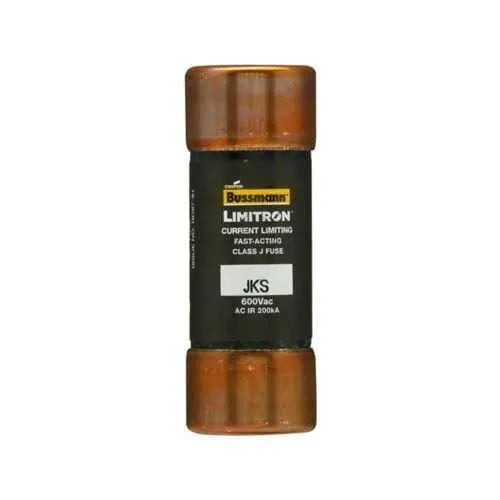

Eaton JKS-1 Fuse - Class J, 200 kAIC at 600V
Part Number: JKS-1
Quick Summary
Eaton JKS-1 fuse provides fast-acting overcurrent protection for branch circuits in industrial panels and machine controls. Selecting the right fast-acting fuse can be challenging when balancing surge tolerance, selectivity, and downtime risk. This Class J device is CE marked and RoHS compliant, reflecting alignment with European safety directives and environmental standards. With a 1 A rating and a 200 kAIC interrupt capability at 600 V, it delivers reliable protection without sacrificing uptime. Designed for straightforward drop-in replacement in Bussmann series fuse holders, the JKS-1 supports efficient maintenance programs and traceable compliance reporting in electrical protection and circuit control applications.
Product Information
Extended Description
JKS-1 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 1 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-1
UPC
051712630016
EAN
5027590444958
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.095 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series JKS Class J data sheet no. 1026
Feature: Fast-acting, current-limiting Class J fuse with a 1 A rating. Benefit: Protects sensitive control circuitry quickly to minimize damage from short circuits, reducing downtime and repair costs. Application: Ideal for control panels and machine control circuits where precise protection is required without unnecessary nuisance trips. Feature: High interrupt rating of 200 kAIC at 600 Vac. Benefit: Withstands large fault currents in industrial power distribution, improving system safety and reliability. Application: MCCs, power distribution blocks, and motor control centers where fault currents may spike. Feature: Ferrule end x ferrule end connection and one-element design. Benefit: Simple, secure installation in standard fuse holders with predictable performance. Application: Retrofit or replacement in Bussmann series arrangements across panel boards. Feature: Compliance with CE and RoHS. Benefit: Ensures regulatory acceptance and environmental compliance in European and global installations, simplifying audits and certifications. Application: Global manufacturing sites exporting to or operating within EU corridors. Feature: Compact physical footprint (2.25 in L x 0.81 in W x 0.81 in H) and non-indicating, standard packaging of 10 units. Benefit: Easy inventory management and fast warehouse-to-field replacements with minimal space impact. Application: High-mavailability control cabinets and spare part kits for electrical protection and circuit control.
Get a Quick Quote for a Eaton JKS-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-1?
Enquire Now
FAQs
Install the JKS-1 using ferrule-end contacts into standard Bussmann series holders. Ensure the panel rating matches 600 V and the circuit load is within the 1 A rating. Verify correct alignment and seating to maintain the 200 kAIC interrupt capability, then re-energize and test with appropriate protective devices in place.
The JKS-1 is a 1 A, 600 V Class J fuse with a 200 kAIC interrupt rating. These specifications enable fast protection of low-current control circuits while tolerating high fault currents up to 200 kiloamperes on 600-volt systems.
Yes. The fuse has ferrule end x ferrule end connections and a single element design, making it compatible with common Bussmann series holders used in control panels and power distribution blocks, facilitating straightforward replacement without adapters.
Yes. The JKS-1 is CE marked and RoHS compliant, signaling conformity with European safety directives and environmental standards, which supports compliance reporting and regulatory acceptance in EU projects.
Using the JKS-1 improves uptime by reducing nuisance trips due to precise 1 A protection, minimizes equipment damage from short circuits thanks to 200 kAIC interruption, and simplifies logistics with standard packaging (10 per pack) for easy stocking and quick field replacements.
