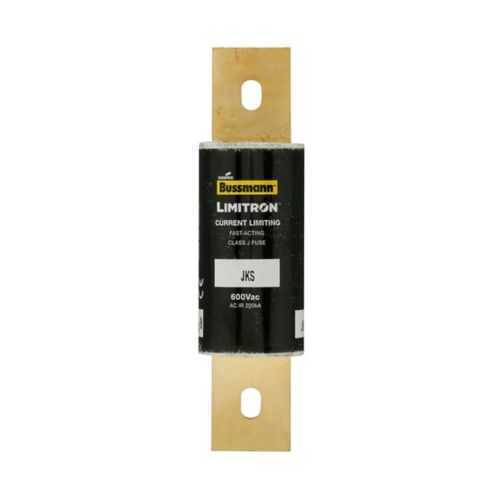

Eaton JKS-175 Fuse - 200 kAIC at 600 Vac RoHS
Part Number: JKS-175
Quick Summary
Eaton JKS-175 fuse is a fast-acting, current-limiting protection device designed for industrial control panels and motor circuits. This model helps prevent nuisance outages by clearing faults quickly while keeping arc energy to a minimum. The JKS series carries RoHS compliance and the Class J designation, offering proven safety and interchangeability in standard Bussmann-style holders. With an amperage rating of 175 A and an interrupting rating of 200 kAIC at 600 Vac, it satisfies demanding protection requirements for high-energy systems. It also benefits from a compact 5.75 inch length and bolted blade end connections, enabling straightforward installation and service in tight panel environments.
Product Information
Extended Description
JKS-175 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 175 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-175
UPC
051712631754
Product Length/Depth
5.75 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.855 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
175 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series JKS fast-acting Class J fuses, 70-600A technical data sheet no. 1027
Feature: Fast-acting, current-limiting Class J design. Business impact: minimizes arc energy and collateral damage during faults, improving equipment uptime. Application: motor drives, conveyors, and power distribution in harsh industrial environments. The next feature delivers concrete outcomes: Feature: 175 A rating with a 200 kAIC interrupt rating at 600 Vac. Business impact: supports high-energy circuits without nuisance trips, reducing downstream damage and maintenance costs. Application: primary protection in motor control centers and panel boards. Feature: RoHS compliant. Business impact: helps meet environmental and regulatory requirements while simplifying supplier qualification. Application: electronics assembly lines and OEM panel fabrication. Feature: Bolted blade end connections. Business impact: secure, durable installation and easier field replacement, boosting maintenance efficiency. Application: standard Bussmann fuse holders in control panels. Feature: Compact 5.75 in length for space-constrained enclosures. Business impact: enables tighter panel layouts and reduced wiring complexity. Application: control cabinets in compact industrial facilities. Together these features support real-world outcomes, including faster fault clearance, safer maintenance, and improved overall equipment effectiveness.
Get a Quick Quote for a Eaton JKS-175
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-175?
Enquire Now
FAQs
The JKS-175 uses bolted blade end connections and fits standard Bussmann-style Class J fuse holders. It is designed for industrial control panels, motor starters, and power distribution blocks. Ensure panel space and holder compatibility; it is a direct one-for-one replacement within the JKS family.
Amperage rating is 175 A with an interrupt rating of 200 kAIC at 600 Vac and a voltage rating of 600 V. This fast-acting, current-limiting fuse minimizes fault energy while delivering reliable protection for high-energy systems.
With rapid fault clearing and current limiting, the JKS-175 reduces arc energy and collateral damage, protecting downstream equipment. This supports longer mean time between failures and easier maintenance in industrial environments, ultimately boosting overall equipment effectiveness.
RoHS compliance ensures restricted substance control, while the Class J designation indicates a standardized fuse family for interchangeable protection in control circuits. These attributes help meet regulatory expectations and simplify procurement across OEMs and maintenance teams.
Install using the bolted blade end connections and verify the 175 A rating matches the circuit. Provide adequate panel space, follow Bussmann catalogs for holder compatibility, and replace only with the same Class J fuse type to maintain protection integrity.
