Eaton JKS-20 Fuse - 200 kAIC at 600 Vac
Part Number: JKS-20
Quick Summary
Eaton JKS-20 fuse is a fast-acting, current-limiting device protecting industrial circuits. Choosing the right fuse to balance reliability and uptime in busy control panels can be challenging. It delivers RoHS compliance, Class J construction, and a 200 kAIC interrupt rating at 600 Vac for robust protection in harsh electrical environments. With ferrule-end connections and standard packaging, it integrates easily into existing panels, delivering consistent protection and reduced lifecycle costs.
Product Information
Extended Description

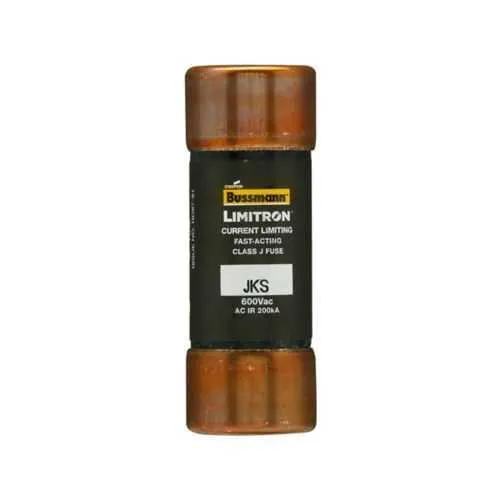

JKS-20 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 20 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-20
UPC
051712630207
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1.15 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
20 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series JKS Class J data sheet no. 1026
Fast-acting, current-limiting Class J fuse with a 20 A rating and a 200 kAIC interrupt rating at 600 Vac provides selective protection for control circuits. This reduces arc energy and limits fault severity, helping protect motors, drives, and PLC I/O from catastrophic faults in industrial equipment and panelboards. The rejection style ferrule-end design prevents improper insertion, simplifying installation and improving field reliability in high-mix panel environments. RoHS compliance ensures regulatory readiness for global deployments, supporting compliant manufacturing and easier cross-border distribution. The compact 2.25 inch length and 0.81 inch width/height enable higher panel density and easier stocking, with packaging of 10 per pack streamlining procurement. Non-indicating status requires external monitoring, which aligns with centralized diagnostics in modern automation systems, reducing field service visits and improving uptime.
Get a Quick Quote for a Eaton JKS-20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-20?
Enquire Now
FAQs
JKS-20 uses ferrule-end connections compatible with standard Class J fuse holders. Install by inserting the fuse into the holder until seated; ensure ferrule sizes match the holder specification to maintain secure, reliable connections.
JKS-20 has a 20 A amperage rating, a 600 V voltage rating, and a 200 kAIC interrupt rating at 600 Vac, providing strong fault-current protection for industrial circuits.
Yes, the JKS-20 is RoHS compliant, making it suitable for global deployment, including European applications that require regulatory conformance for electrical protection components.
JKS-20 is ideal for control panels, motor control centers, and power distribution circuits where fast-acting, current-limiting protection is required to safeguard equipment and maintain uptime.
The high 200 kAIC interrupt rating reduces fault energy, while current-limiting minimizes arc exposure. Packaging in 10-per-pack simplifies stocking, and the non-indicating design aligns with remote monitoring schemes, collectively lowering service calls and improving overall system availability.
