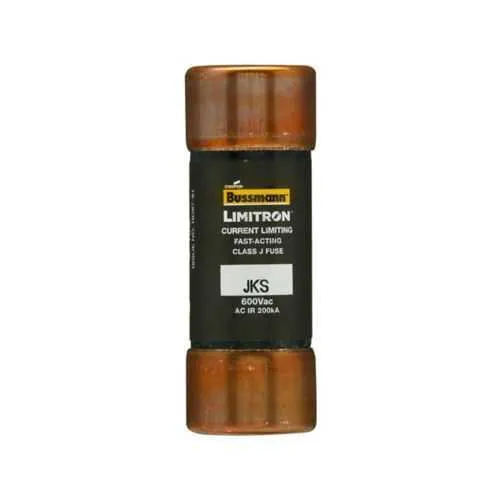

Eaton JKS-25 Fuse - Class J, 200 kAIC at 600 Vac
Part Number: JKS-25
Quick Summary
The Eaton JKS-25 fuse is a fast-acting Class J fuse designed to protect industrial control circuits in harsh environments. Engineers frequently confront nuisance trips and questionable protection coordination; this device delivers precise fault isolation with a current-limiting profile that minimizes arc energy. CE Marked and RoHS compliant, it supports compliance-driven installations while handling up to 25 A at 600 V. Its compact form factor and ferrule-end connections streamline panel layout and wiring, reducing installation time. For procurement teams, the JKS-25 offers predictable performance, standardized fittings, and a reliable supply chain within Bussmann’s trusted fuse family.
Product Information
Extended Description
JKS-25 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 25 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-25
UPC
051712630252
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
25 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series JKS Class J data sheet no. 1026
Feature → Business Impact → Application: The JKS-25 is a fast-acting, current-limiting Class J fuse that quickly interrupts short circuits, reducing downstream damage and downtime in machine controls. Benefit: narrower fault windows translate to higher system availability and safer start-up sequences. Application: ideal for low- to mid-power industrial circuits in control panels where selectivity and rapid protection matter. Feature → Business Impact → Application: 25 A amperage rating provides robust protection for typical loads while preventing nuisance trips on normal startup. Benefit: improved energy efficiency and longer component life, with predictable circuit protection during peak loads. Application: suitable for power supplies and motor control applications in automation cells. Feature → Business Impact → Application: 200 kAIC interrupt rating at 600 V ensures high fault-current withstand, safeguarding panels from severe faults. Benefit: enhanced safety margins in harsh facilities and in systems connected to large feeders. Application: critical in manufacturing lines and packaging equipment with high inrush currents. Feature → Business Impact → Application: Ferrule-end x ferrule-end design enables quick, error-free installation in standard fuse holders. Benefit: time savings during panel assembly and reduced wiring errors. Application: widely used in control cabinets with Bussmann-standard ferrule hardware. Feature → Business Impact → Application: CE Marked and RoHS Compliant verification simplifies regulatory approval. Benefit: streamlined compliance documentation and easier supplier audits. Application: aerospace-grade and general manufacturing installations requiring traceability. Feature → Business Impact → Application: Non-indicating fuse with rejection style and 1 element simplifies maintenance planning. Benefit: clear fault indication absence reduces misdiagnosis, supporting preventive maintenance schedules. Application: service workflows in automated lines where rapid fault location is essential.
Get a Quick Quote for a Eaton JKS-25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-25?
Enquire Now
FAQs
The JKS-25 is designed for industrial control panels and machine protection. Its 25 A rating at 600 V and 200 kAIC interrupt capacity make it suitable for protecting power supplies, relays, and motor control circuits in manufacturing environments. The ferrule-end design supports quick, robust field installation, while its current-limiting action helps minimize arc energy during faults.
As a fast-acting, current-limiting Class J fuse, the JKS-25 detects overcurrent conditions quickly and interrupts the circuit to prevent damage to downstream components. The 200 kAIC interrupt rating at 600 V ensures it can safely withstand high fault currents, while maintaining selectivity with upstream protection for improved system reliability and reduced downtime.
Yes. The JKS-25 features ferrule-end x ferrule-end connections and is designed to fit standard Bussmann-series fuse holders and panels. This compatibility reduces installation time, minimizes wiring errors, and supports consistent electrical cabinet practices across equipment lines.
The JKS-25 is CE Marked and RoHS Compliant, indicating conformance with essential safety, environmental, and regulatory requirements. For manufacturers, this simplifies compliance reporting, enhances supplier qualification, and supports regulatory audits in regulated industries such as food, pharma, and general manufacturing.
Using the JKS-25 can reduce maintenance overhead by limiting nuisance trips and enabling quicker fault isolation. Its robust interrupt rating and durable ferrule-end design translate to longer service intervals, fewer panel outages, and lower total cost of ownership in automated lines, especially where high fault currents or frequent startup transients occur.
