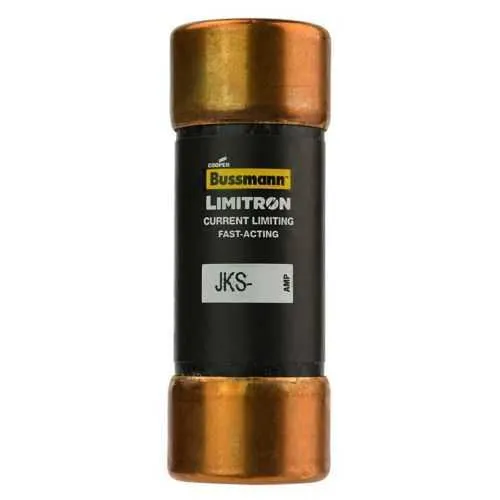

Eaton JKS-25-700 Fuse - 200 kAIC at 700 Vac CE RoHS
Part Number: JKS-25-700
Quick Summary
The Eaton JKS-25-700 fuse protects industrial control panels with fast-acting, current-limiting performance designed for high-energy circuits. Engineers often struggle with nuisance trips, space constraints, and mis-matched hardware when integrating protection in compact panels. The CE marking and RoHS compliance, alongside the Class J fast-acting design, ensure reliable interruption at 700 V and up to 200 kAIC, safeguarding downstream equipment. This fuse from the Bussmann series integrates seamlessly with standard panel components, reducing replacement downtime and simplifying stocking. By aligning with common control-circuit protection needs, it supports efficient maintenance, safer operations, and compliant, scalable power protection across motor drives and distribution panels.
Product Information
Extended Description
JKS-25-700 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 25 A, rejection style fuse, interrupting rating of 200kA at 700Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-25-700
UPC
051712697620
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.096 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
25 A
Interrupt rating
200 kAIC at 700 Vac
Voltage rating
700 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Feature: Fast-acting, current-limiting protection quickly clears faults and minimizes arc energy. Business Impact: Reduces component wear, lowers fault severity, and shortens downtime. Application: Ideal for control circuits and protective relays in industrial panels. Feature: 25 A amperage rating with a 200 kAIC interrupt rating at 700 V. Business Impact: Enables safe interruption of high-energy faults without device damage, boosting system reliability and maintenance window predictability. Application: Branch circuits and machine power feeds in manufacturing lines. Feature: Class J, ferrule end x ferrule end, rejection-style fuse design. Business Impact: Provides compatibility with standard Bussmann holders, reduces misfitting, and speeds replacement. Application: Panel-mounted protection in retrofit projects and new builds. Feature: Compact form factor—2.25 in length, 0.81 in width and height. Business Impact: Fits in dense control cabinets and space-constrained enclosures, simplifying layout and wiring. Application: Modern automated systems with limited panel real estate. Feature: CE Marked and RoHS compliant, standard packaging of 10 pieces. Business Impact: Assures regulatory compliance and streamlined procurement, improving audit readiness. Application: Global deployments in European and RoHS-restricted environments.
Get a Quick Quote for a Eaton JKS-25-700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-25-700?
Enquire Now
FAQs
The JKS-25-700 uses ferrule-ended connections and measures 2.25 in long with 0.81 in x 0.81 in cross-section. Install in a compatible Bussmann-style holder, use properly sized ferrules, and tighten per the holder manufacturers’ torque specs. Ensure secure seating to prevent arcing and replace only after fault verification; unit ships in standard packaging (10 pcs).
An interrupt rating of 200 kAIC at 700 Vac means the fuse can safely interrupt extremely high fault currents without sustaining damage or creating hazardous arcs. This level supports robust protection in high-energy circuits, reducing the risk of downstream component damage and facilitating safer maintenance and faster fault isolation.
The JKS-25-700 is designed for general industrial protection in control panels and power distribution, delivering fast fault clearing in compact spaces. It is CE marked and RoHS compliant, suitable for many motor drive and distribution applications. For harsh environments, verify enclosure protection and temperature ratings and ensure compatible mounting within standard Bussmann series configurations.
This fuse carries CE marking and RoHS compliance, signaling conformity with EU safety and restricted-substances requirements. These certifications support regulatory procurement and safer cross-border usage. While the data set does not specify an IP rating, it aligns with standard European wiring practices and can be integrated into compliant assemblies within the Bussmann Series catalog.
Using a 25 A, fast-acting JKS-25-700 fuse can reduce nuisance trips and unplanned downtime, extending maintenance intervals where faults are the culprit. Its high interrupt rating minimizes arc-related damage, lowering replacement costs. Compatibility with existing Bussmann components simplifies stocking and inventory, delivering a more predictable total cost of ownership over the equipment lifecycle.
