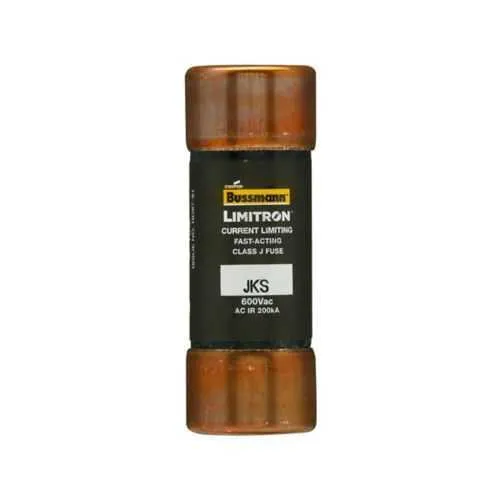

Eaton JKS-5 Fuse - Class J 200 kAIC at 600 Vac
Part Number: JKS-5
Quick Summary
The Eaton JKS-5 fuse is a fast-acting Class J protection device designed for industrial power circuits. Engineers often contend with nuisance trips from surges and inrush, and the JKS-5 mitigates this with precise current-limiting response. CE marking and RoHS compliance accompany its 600 V rating and 200 kAIC interrupt capacity, enabling safe, regulator-friendly integration in European and global equipment. As part of the Bussmann series, it aligns with standard ferrule-end Class J fuses, simplifying stocking and maintenance. Its compact 0.81 in by 0.81 in cross-section and 2.25 in height fit many enclosures, delivering reliable protection for critical loads while supporting streamlined procurement and service routines.
Product Information
Extended Description
JKS-5 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 5 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-5
UPC
051712630054
EAN
5027590445184
Product Length/Depth
0.81 in
Product Height
2.25 in
Product Width
0.81 in
Product Weight
1.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
5 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series JKS Class J data sheet no. 1026
Feature: Fast-acting, current-limiting Class J fuse delivers rapid fault clearance. Business Impact: Reduces conductor and component overheating, minimizes arc duration, and lowers thermal stress on wiring insulation. Application: Motor control centers, power supplies, and control panels where precise coordination is essential. Feature: 5 A amperage rating with a 200 kAIC interrupt rating at 600 Vac provides robust system protection. Business Impact: Enables safe interruption of high-energy faults without cascading damage, improving overall system reliability. Application: 600 V industrial circuits and protection schemes requiring high interrupt capacity. Feature: Rejection style, ferrule end x ferrule end design and non-indicating fuse indicator. Business Impact: Prevents incorrect replacements and reduces maintenance time by ensuring correct form factor and easy visual verification. Application: Standard Bussmann Class J installations in common chassis. Feature: Compliances include CE Mark and RoHS, with a compact form factor. Business Impact: Facilitates compliance across global markets and simplifies regulatory documentation, while saving space in crowded panels. Application: Panels destined for multinational deployments and regulated environments. Feature: Compatibility with Bussmann Full Line and JKS data sheets supports fast procurement and installation. Business Impact: Shortens lead times, lowers part-variation risk, and improves technician onboarding. Application: OEM panel builds and retrofit projects requiring reliable, widely supported fuses. Feature: 10-unit packaging and standard packaging type streamline stocking for maintenance teams. Business Impact: Reduces inventory costs and downtime associated with part shortages. Application: Industrial facilities with multiple protection circuits and frequent fuse replacements.
Get a Quick Quote for a Eaton JKS-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-5?
Enquire Now
FAQs
Install the JKS-5 with ferrule-end connections as specified, ensuring the fuse fits the Class J footprint and that the enclosure supports 600 V operation. Confirm the circuit is de-energized, insert until seated, and verify the ferrule ends are fully crimped for reliable contact and current interruption. This reduces the risk of hot spots and premature failure in motor control circuits.
Yes. The JKS-5 adheres to the Bussmann Series Class J standard with ferrule-end connections, allowing straightforward substitution within compatible panel ranges and ensuring consistent mounting, electrical contact, and protection characteristics across the fleet of Class J fuses.
The JKS-5 is ideal for industrial control panels, motor control circuits, and power supplies that require fast-acting protection and a 200 kAIC interrupt rating at 600 Vac. Its 5 A rating makes it suitable for small to medium load circuits where precise coordination reduces nuisance trips.
The JKS-5 is CE marked and RoHS compliant, aligning with European regulatory requirements. Its 600 V rating and current-limiting, fast-acting behavior meet common electrical protection standards for safety, reliability, and environmental compliance in modern industrial facilities.
With its high interrupt rating and current-limiting performance, the JKS-5 reduces downstream damage and maintenance downtime, improving line uptime. Standardized, ferrule-end design supports easy replacement, inventory consolidation, and faster technician replacement cycles, delivering tangible operating savings over time.
