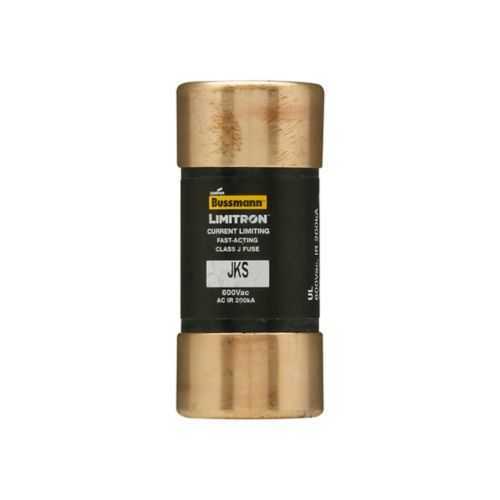

Eaton JKS-60 Fuse - 200 kAIC at 600 Vac, Class J
Part Number: JKS-60
Quick Summary
The Eaton JKS-60 fuse provides fast-acting, current-limiting protection for industrial control panels and branch circuits. This design helps reduce nuisance trips and equipment stress during fault events. CE marking and RoHS compliance support regulatory readiness, while Class J construction delivers predictable protection coordination. For engineers and procurement teams, the JKS-60 offers reliable, scalable protection that integrates with Bussmann Series components and ferrule-end connections to streamline panel builds and maintenance.
Product Information
Extended Description
JKS-60 Eaton: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 60 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series JKS fuse
Catalog Number
JKS-60
UPC
051712630603
Product Length/Depth
2.38 in
Product Height
1 in
Product Width
1 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
60 A
Interrupt rating
200 kAIC at 600 Vac
Voltage rating
600 V
Number of elements
1
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series JKS Class J data sheet no. 1026
Feature: 60 A Class J fast-acting rating combined with a 200 kAIC interrupt rating at 600 Vac guarantees swift fault interruption and reduced energy let-through. Business impact: minimizes damage to motors and controllers, lowers downtime, and improves overall system reliability in high-energy environments. Application: ideal for motor starters, power distribution blocks, and PLC power rails in industrial automation. Feature: Current-limiting behavior provides arc energy reduction during interruptions, enhancing operator safety and protecting nearby components. Business impact: safer installations and longer equipment life, enabling more predictable maintenance cycles. Application: critical in panelboards and branch circuits where arcing can impact nearby sensors and devices. Feature: Ferrule end x ferrule end connections simplify mounting and improve vibration resistance. Business impact: faster installation and more robust performance in harsh environments. Application: fits standard Bussmann series enclosures and terminations in control panels. Feature: Compact form factor (2.38 in L × 1 in W × 1 in H) and light weight (0.18 lb) support dense panel layouts and easier stocking. Business impact: reduces cabinet footprint and logistics costs while improving field service efficiency. Application: suitable for vertical or horizontal mounting in standard fuse blocks. Feature: Compliance and packaging details—CE Marked, RoHS Compliant, standard packaging of 10 pieces. Business impact: ensures regulatory alignment for global deployments and helps maintain consistent procurement planning. Application: simplifies qualification testing and BOM management for electrical protection schemes.
Get a Quick Quote for a Eaton JKS-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JKS-60?
Enquire Now
FAQs
To install the JKS-60, ensure you are handling a 60 A circuit and that the ferrule-end terminals align with your panel’s fuse blocks. Insert the fuse with a firm, level push, then secure the ferrules per your panel’s grounding and conductor routing guidelines. Confirm impedance and clearance meet the device’s 600 V rating and verify the 200 kAIC interrupt capability is suitable for your fault currents.
The JKS-60 utilizes Class J characteristics with fast-acting, current-limiting behavior and a high 200 kAIC interrupt rating at 600 Vac. This combination minimizes fault energy, protects connected equipment, and maintains system availability in medium-voltage control circuits, motor protection, and distribution blocks commonly found in industrial automation.
Yes. The JKS-60 is well-suited for motor control centers, PLC power rails, and control-panel protection where 60 A circuits must be reliably interrupted at 600 Vac. Its current-limiting properties help reduce arc energy, while the ferrule-end design supports quick, stable connections in dense MCC environments.
The JKS-60 is CE marked and RoHS compliant, aligning with European safety and environmental standards. While it is not listed as UL or other agency-specific certified in the provided data, it meets essential regulatory requirements for many global applications and is compatible with Bussmann Series protection strategies.
Using the JKS-60 can reduce total cost of ownership by decreasing nuisance trips and limiting fault energy, which lowers maintenance costs and extends equipment life. Its compatibility with standard ferrule-end connections streamlines installation and technician training, while the 10-piece packaging helps with stocking, ordering accuracy, and BOM consistency.
