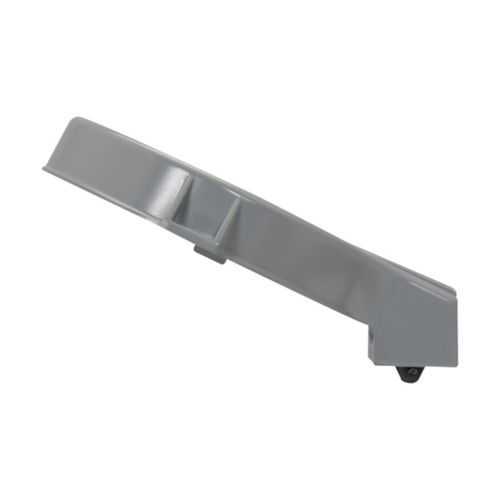

Eaton JM5 Champ mounting module - Ordinary/Non-Hazardous
Part Number: JM5
Quick Summary
The Eaton JM5 Champ mounting module provides sturdy mounting for VMV HID luminaires in industrial lighting installations. This accessory addresses common challenges such as misalignment, vibration, and corrosion that can degrade performance over time. With copper-free aluminum construction and a 25° angled stanchion, it delivers durable support while preserving photometric accuracy. The JM5 is designed for 1-1/2" trade-size luminaires and is suitable for ordinary/non-hazardous locations, aligning with typical industry codes and practices. By choosing this module, installers gain faster on-site setup, reduced maintenance intervals, and a consistent mounting platform that simplifies future upgrades to VMV high-wattage luminaires. This combination of material choice, compatibility, and installation ease translates into a lower total cost of ownership.
Product Information
Extended Description
JM5 Eaton: Eaton Crouse-Hinds series Champ mounting module, Copper-free aluminum, Stanchion 25° angled mount, 1-1/2" trade size, Used with VMV and VMV high wattage series luminaires
Product Name
Eaton Crouse-Hinds series Champ mounting module
Catalog Number
JM5
UPC
782274490502
Product Length/Depth
1.3 in
Product Height
3.5 in
Product Width
11.3 in
Product Weight
2.64 lb
Area classification
Ordinary/Non-Hazardous Locations
Used with
VMV and VMV high wattage series luminaires
Mounting Method
Stanchion 25° angled
Material
Copper-free aluminum
Trade size
1-1/2"
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Eaton Specification Sheet - JM5
Copper-free aluminum construction reduces corrosion risk and weight, delivering longer service life and easier handling during installation. The business impact is lower maintenance costs and less downtime, which is especially valuable in continuous or facility-critical applications where VMV luminaires are deployed. This design supports VMV HID luminaires with a strong, reliable mounting foundation, improving photometric consistency and vibration resistance in ordinary locations. The 25° angled stanchion mounting offers optimized tilt for better light distribution, enabling quicker commissioning and reduced field adjustments, a meaningful efficiency gain for technicians. The 1-1/2" trade-size compatibility standardizes fittings across fleets, cutting spare-part variety and accelerating procurement. Pairing with VMV high-wattage luminaires future-proofs upgrades while limiting, or delaying, additional mounting adapters. Copper-free aluminum also contributes to a lighter lift during shipping and onsite handling, reducing labor costs. The module’s ordinary/non-hazardous location classification reassures compliance planning for typical industrial spaces, minimizing the need for specialized enclosures or protective measures. Overall, the JM5 provides a robust, installation-friendly solution that supports reliable operation, predictable maintenance schedules, and a lower total cost of ownership in lighting projects.
Get a Quick Quote for a Eaton JM5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM5?
Enquire Now
FAQs
The JM5 mounting module is designed for VMV and VMV high wattage luminaires, using a 1-1/2" trade size and copper-free aluminum construction for a robust, compatible mounting solution.
Install with the 25° angled stanchion mounting to optimize tilt and photometric distribution. The copper-free aluminum keeps weight manageable (around 2.64 lb) and supports straightforward mounting on standard VMV fixtures.
JM5 lists area classification as Ordinary/Non-Hazardous Locations, aligning with typical industrial spaces. If you require explosive or hazardous area certifications, verify project specs and consider appropriate enclosure or alternative mounting hardware.
Key specs include 1-1/2" trade size, copper-free aluminum, 25° angled stanchion, product dimensions of 11.3 in width by 3.5 in height and 1.3 in depth, and a weight of 2.64 lb. It’s intended for VMV luminaires and ordinary locations.
Copper-free aluminum reduces corrosion-related maintenance, while the standardized 1-1/2" trade size and VMV compatibility speed up installations and future upgrades, lowering labor costs and inventory complexity over the lifecycle of your lighting system.
