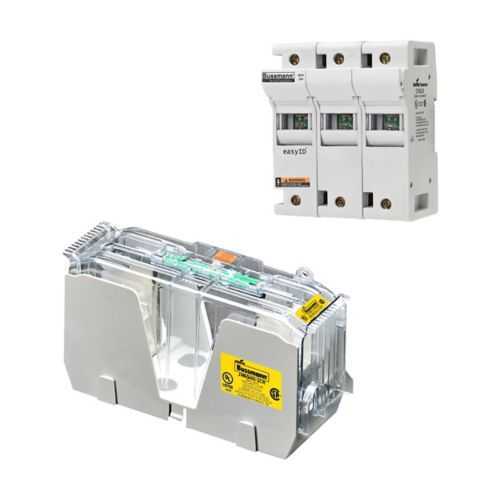

Eaton JM60030-1CHR Modular Fuse Block - 200 kAIC
Part Number: JM60030-1CHR
Quick Summary
Eaton JM60030-1CHR is a modular fuse block used for protective isolation in industrial control panels. It addresses common pain points such as space constraints, wiring complexity, and wiring reliability in compact control environments. This unit carries RoHS compliance and PED 97/23 EC certification context, with a 200 kAIC interrupt rating and a 600 V rating to support demanding applications. By combining box lugs with hex screws and DIN-rail/panel mounting capability, it offers installation efficiencies, consistent torque control, and dependable field performance for machinery and process equipment. Secondary benefits include compatibility with #2-14 AWG conductors and a robust Class J fuse design that helps streamline procurement and maintenance workflows.
Product Information
Extended Description
JM60030-1CHR Eaton: Eaton Bussmann series JM modular fuse block, Box lugs with hex screws, 30 A, 1P, 120°C, 50 lb-in max, Class J, CVR(I)-J-60030, Black, 200 kAIC, 75 °C, Stranded, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-1CHR
UPC
051712620598
Product Length/Depth
3.4 in
Product Height
2.3 in
Product Width
1.1 in
Product Weight
0.14447917 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-J-60030
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-1CHR
Feature: 30 A Class J fuse with 600 V rating → Business Impact: Protective device limits fault energy and protects equipment, reducing unplanned downtime → Application: Control panels for industrial machinery and conveyors. Feature: Box lug connection with hex screws → Business Impact: Faster, secure wiring with reduced chance of loose-terminals → Application: DIN rail and panel-mounted assemblies in rugged environments. Feature: 1P single-pole configuration → Business Impact: Simplified wiring topology lowers installation time and error rates → Application: Individual circuit protection in compact panels. Feature: 200 kAIC short-circuit and 200 kA RMS symmetrical ratings → Business Impact: High fault tolerance for demanding industrial facilities, lowering system-wide risk → Application: High-energy industrial equipment protection. Feature: 50 lb-in torque rating → Business Impact: Consistent, repeatable torque ensures reliable connections and insulation integrity → Application: Field installations where torque control is critical. Feature: 120 °C operating temperature and #2-14 AWG wire compatibility → Business Impact: Suitability for hot environments and common control wiring reduces rework → Application: Machinery controls and panel feed-throughs. Feature: RoHS compliant and PED 97/23 EC certified → Business Impact: Regulatory compliance reduces certification overhead and accelerates deployment → Application: European and global machinery builds. Feature: DIN rail/panel mounting with CVR(I)-J-60030 accessory → Business Impact: Flexible installation options and enhanced enclosure protection → Application: Modernized control panels and machinery cabinets.
Get a Quick Quote for a Eaton JM60030-1CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-1CHR?
Enquire Now
FAQs
JM60030-1CHR is designed for DIN rail or panel mounting and uses box lugs with hex screws to secure the conductors. Begin by snapping the block onto a standard DIN rail or mounting panel bracket, connect wires with appropriate stripping to #2-14 AWG, and tighten hex screws to the recommended 50 lb-in torque. Verify alignment and clearance, then perform a functional test to confirm proper protection and wiring integrity.
The device provides a 30 A amperage rating with a 600 V voltage rating, Class J fuse type, and a 200 kAIC interrupt rating. It also supports 200 kA RMS symmetrical fault current. These specifications enable effective protection in medium-power industrial circuits, minimizing arc energy and facilitating safe shutoff under short-circuit conditions.
Yes, JM60030-1CHR is RoHS compliant and certified under the European PED directive (97/23/EC). This means the product meets restrictions on hazardous substances and complies with pressure equipment safety standards in applicable European markets, reducing regulatory risk and streamlining documentation for machinery builds.
Absolutely. The fuse block is rated for #2-14 AWG conductors and a 600 V environment, with a conductor temperature rating of 75 °C and an operating temperature capable up to 120 °C. Its robust construction, box lug connections, and hex-screw fastenings ensure reliable performance in harsh industrial settings and high-temperature panels.
The modular design with secure box lugs and DIN rail compatibility reduces installation time and wiring errors, lowering labor costs. The high fault-current ratings and IECPED/RoHS compliance minimize downstream maintenance and regulatory hurdles, contributing to a lower total cost of ownership and faster time-to-value for control panel projects.
