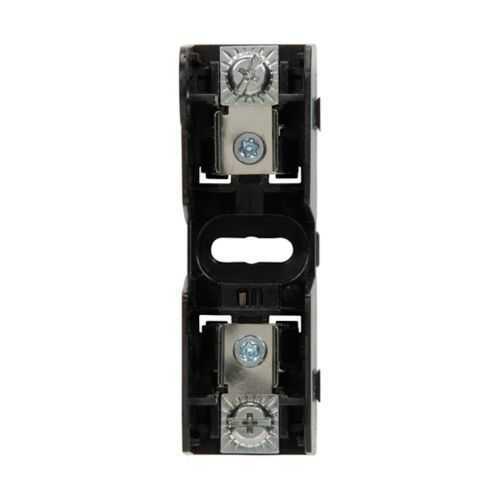

Eaton JM60030-1PR Modular Fuse Block - Class J
Part Number: JM60030-1PR
Quick Summary
The Eaton JM60030-1PR modular fuse block provides compact overcurrent protection for industrial control panels. Engineers often struggle with reliable fusing in tight spaces and rapid component replacement during maintenance cycles. This unit delivers 0-30 A at up to 600 V, with a 200 kA short-circuit rating to safeguard downstream equipment and reduce fault propagation. It carries RoHS compliance and CE marking, alongside UL Listed and CSA Certified status for global adherence to safety and electrical codes. By combining a single-pole Class J fuse with a secure screw-terminal connection, it streamlines wiring, simplifies stocking, and speeds field service. When paired with other JM components, it scales protection across evolving panels without sacrificing performance.
Product Information
Extended Description
JM60030-1PR Eaton: Eaton Bussmann series JM modular fuse block, 0-30 A, Single-pole, Class J, 200 kA, Screw with pressure plate, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-1PR
UPC
051712514606
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-1PR
Feature: 0-30 A amperage range with a 200 kAIC short-circuit rating. Business Impact: Provides precise overcurrent protection and robust fault tolerance, reducing nuisance trips and equipment damage in control panels. Application: Ideal for single-pole circuits in industrial machinery and process panels. Feature: 600 V voltage rating and Class J construction. Business Impact: Enables fast fault clearance while meeting common industrial coordination requirements, improving safety and system uptime. Application: Suitable for high-energy applications in machine controls and distribution blocks. Feature: Screw with pressure plate termination. Business Impact: Delivers secure, vibration-resistant terminations that resist loosening in harsh environments, cutting maintenance time and rework. Application: Preferred in panels subject to vibration or frequent accessibility issues. Feature: RoHS compliant, CE marked; UL Listed, CSA Certified. Business Impact: Ensures global regulatory compliance and reduces supplier qualification time, facilitating cross-border deployments. Application: Ready for European and North American installations on mixed supply systems. Feature: Compatibility with Eaton Bussmann JM modular fuse family. Business Impact: Enables scalable protection as panels expand, lowering total cost of ownership through common components. Application: Supports phased upgrades in growing control systems and machinery fleets.
Get a Quick Quote for a Eaton JM60030-1PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-1PR?
Enquire Now
FAQs
JM60030-1PR is designed to be part of Eaton Bussmann's JM modular fuse block family. It uses a standard single-pole Class J format with screw-terminal termination, enabling seamless compatibility with other JM blocks for scalable protection. This alignment simplifies panel design, stocking, and service when expanding or upgrading protection schemes in control cabinets.
Key ratings include an amperage range of 0-30 A, a short-circuit rating of 200 kA, and a voltage rating of 600 V. It is a single-pole, Class J fuse block designed for reliable protection in industrial circuits, supporting fast fault clearing while maintaining system safety and coordination with downstream devices.
Yes. The JM60030-1PR carries UL Listed and CSA Certified markings, and it is CE marked with RoHS compliance. These certifications support global deployment, ensuring compliance with U.S., Canadian, and European electrical safety and environmental regulations in industrial environments.
Choose the screw with a pressure plate termination for secure, vibration-resistant connections, especially in panels subject to movement or vibration. Proper torque and clean terminations minimize loose connections, reduce arcing risk, and shorten maintenance windows. Pair with compatible JM modules to maintain coordinated protection across expanding systems.
Best suited for single-pole overcurrent protection in industrial control panels, machine feeders, and equipment envelopes requiring Class J protection at up to 600 V. Its 0-30 A range and 200 kAIC capacity support reliable protection in automation systems, while UL, CSA, CE, and RoHS certifications enable compliant, global deployment.
