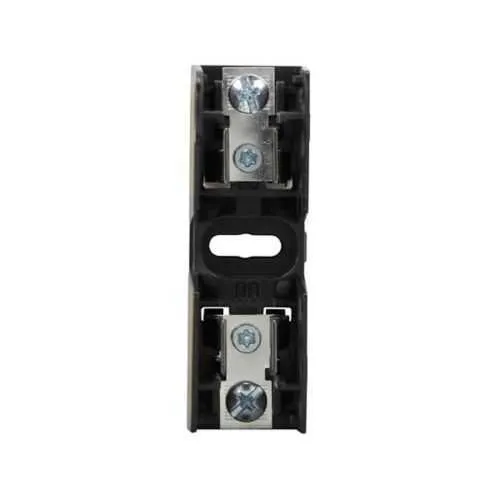

Eaton JM60030-1SR Modular Fuse Block - Class J, 600V
Part Number: JM60030-1SR
Quick Summary
JM60030-1SR modular fuse block provides compact overcurrent protection for electrical panels and machine control systems. Engineers often struggle with space constraints and reliability when selecting fuses for small control cabinets. UL Listed and CSA Certified, with RoHS compliance and CE marking, ensure regulatory readiness for global deployments. Designed for 0-30 A, 600 V Class J protection and Philslot screws/pressure plate terminations, it enables fast installation, repeatable wiring, and reduced downtime across production lines. This combination of compliance and practical wiring features translates to lower inventory costs and smoother panel builds for industrial automation projects. It integrates smoothly with existing Bussmann JM components.
Product Information
Extended Description
JM60030-1SR Eaton: Eaton Bussmann series JM modular fuse block, 0-30 A, Single-pole, Class J, Philslot screws/pressure plate, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-1SR
UPC
051712514576
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class J
Connection
Philslot screws/pressure plate
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-1SR
Feature 0-30 A amperage range with a 200 kAIC short-circuit rating. Business Impact Provides ample fault-current headroom, reducing nuisance trips and improving equipment uptime. Application Ideal for mid-size industrial panels, drives, and machine feeders where protection margins are critical. Feature Class J single-pole design with compact footprint. Business Impact Enables tighter panel layouts and standardized protection across assemblies, lowering enclosure costs and simplifying wiring. Application Works well in space-constrained control cabinets and modular panels. Feature Philslot screws/pressure plate connections. Business Impact Delivers secure terminations with vibration resistance, speeding up wiring and maintenance. Application Beneficial in harsh industrial environments needing reliable conduit terminations. Feature 600 V rating. Business Impact Supports versatile deployment across 600 V systems, maintaining safety margins while enabling broader equipment compatibility. Application Suitable for motor control centers, power distribution blocks, and automation panels. Feature Certifications and compliance. Business Impact UL Listed, CSA Certified, RoHS compliant, and CE marked, reducing qualification time and supplier audits. Application Facilitates global procurement and consistent regulatory adherence. Feature Interoperability with Bussmann JM series. Business Impact Streamlines stocking and panel design by using a common family of components. Application Eases integration in standardized automation architectures and spare-parts planning.
Get a Quick Quote for a Eaton JM60030-1SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-1SR?
Enquire Now
FAQs
JM60030-1SR modular fuse block is designed for single-pole overcurrent protection in electrical panels, machine controls, and small power distribution circuits. It handles 0-30 A with a 200 kAIC short-circuit rating at 600 V, placing it within common industrial protection requirements. The Philslot screws/pressure plate terminations simplify wiring and improve vibration resistance in harsh environments.
Install the JM60030-1SR by mounting the single-pole fuse block in the control panel chassis and securing conductors with Philslot screws or the pressure plate, as specified. Verify a 600 V rating and correct amperage setting within 0-30 A. Use proper torque and insulation to ensure reliable operation in industrial environments.
Yes. JM60030-1SR carries UL Listed and CSA Certified marks and meets RoHS compliance with CE marking, supporting compliance across North America and Europe. This certification set helps simplify procurement, ensures safety documentation, and reduces validation time for panel builds in regulated industries. Engineering teams rely on these global certifications to meet customer specs, audits, and maintenance contracts, ensuring consistent performance without requalification.
Electrical specs include an amperage range of 0-30 A, a short-circuit rating of 200 kAIC, and a voltage rating of 600 V. It is designed as a single-pole Class J fuse block with Philslot screws/pressure plate terminations. These specifications enable reliable overcurrent protection for medium-current circuits in industrial control panels and machine interfaces.
Applications in packaging, material handling, and process automation benefit from the JM60030-1SR due to its compact form, 0-30 A protection, and 600 V rating. Its UL/CSA approvals simplify qualification, while the robust 200 kAIC short-circuit rating reduces downtime during fault events. Lower inventory complexity and faster panel builds contribute to faster ROI.
