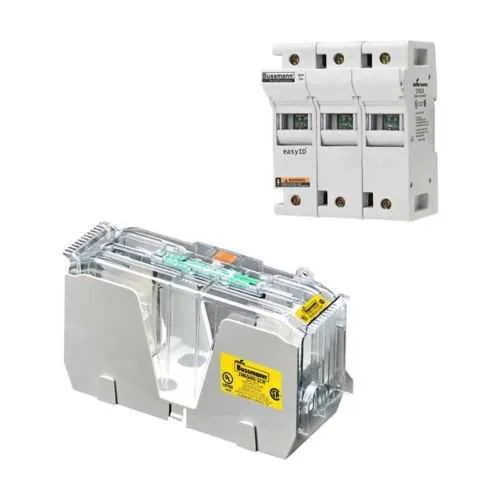

Eaton JM60030-2MW14 Modular Fuse Block - 200 kAIC
Part Number: JM60030-2MW14
Quick Summary
The Eaton JM60030-2MW14 modular fuse block protects electrical circuits in industrial control panels by delivering reliable overcurrent protection. This two-pole, Class J fuse block supports panel and DIN-rail mounting, with box lug connections for durable terminations. Engineers often wrestle with wiring complexity and high fault currents in compact enclosures; this unit simplifies wiring with a box lug and multi-wire load-side lug, saving installation time and reducing field errors. It carries a 30 A rating, 600 V voltage rating, and a 200 kAIC interrupt capability, backed by RoHS compliance and PED 97/23 EC for regulatory peace of mind. In practical terms, it improves uptime, simplifies spare-part planning, and aligns with industrial safety and environmental standards while fitting Eaton Bussmann lineups.
Product Information
Extended Description
JM60030-2MW14 Eaton: Eaton Bussmann series JM modular fuse block, Multi-wire load-side lug, 30 A, 2-P, 120°C, 50 lb-inches max, Class J, Black, Box lug, 200 kAIC, 75 °C, DIN rail, Panel, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-2MW14
UPC
051712620574
Product Length/Depth
3.4 in
Product Height
2.3 in
Product Width
2.2 in
Product Weight
0.31666667 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Multi-Wire Load-Side Lug
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-2MW14
The JM60030-2MW14 fuse block delivers robust circuit protection with a 30 A amperage rating and a 600 V voltage rating, providing 200 kAIC interrupt capability. Business impact: reduced downtime from high-energy faults and enhanced system reliability. Application: ideal for panel assemblies, motor drives, and power distribution in industrial environments. The Class J fuse type and two-pole design enable precise protection for multi-phase circuits, improving startup reliability and safeguarding expensive equipment. The box lug and multi-wire load-side lug simplify field wiring, reducing termination errors and installation time. This fuse block supports both panel and DIN-rail mounting, offering installation flexibility in compact control panels. RoHS compliance and PED 97/23 EC ensure regulatory alignment for machinery builds, while a 50 lb-in torque rating guarantees dependable terminations.
