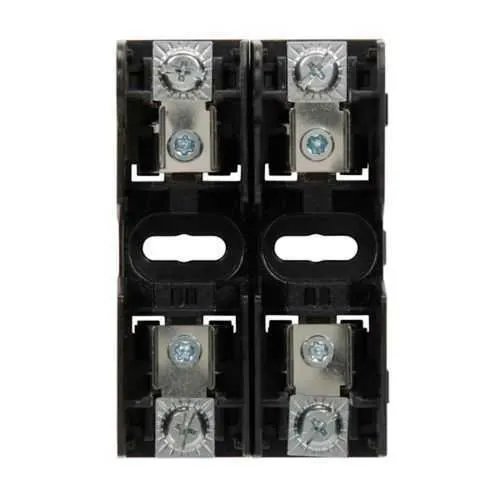

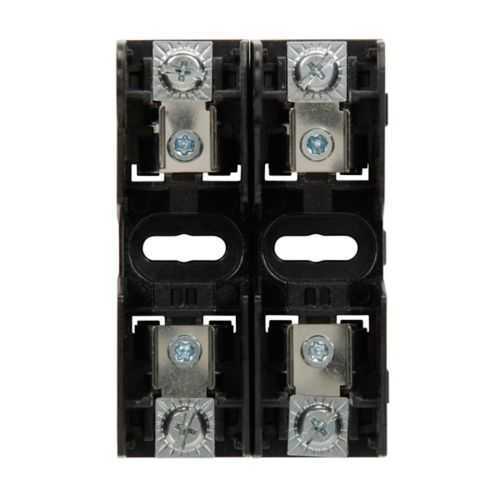

Eaton JM60030-2PR Modular Fuse Block - Class J, 200 kAIC
Part Number: JM60030-2PR
Quick Summary
The JM60030-2PR modular fuse block from Eaton provides reliable circuit protection for industrial equipment. Maintenance teams often contend with fuse blocks that are hard to access or wire correctly, leading to avoidable downtime. This unit is UL Listed, CSA Certified, and RoHS/CE marked, with a 200 kAIC short-circuit rating and a 600 V voltage rating to meet stringent industrial standards. Its screw with pressure plate terminals and two-pole Class J design streamline installation, while its compact form factor supports efficient panel layouts and scalable protection strategies. For engineers and procurement professionals, this fuse block combines proven protection with practical field usability, delivering safer, faster maintenance and lower lifecycle costs.
Product Information
Extended Description
JM60030-2PR Eaton: Eaton Bussmann series JM modular fuse block, 0-30 A, Two-pole, Class J, Screw with pressure plate, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-2PR
UPC
051712514613
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-2PR
Feature → Two-pole Class J modular fuse block with screw terminals and pressure plate, enabling secure, vibration-resistant wiring and quick field termination. Business Impact → Reduces maintenance time and wiring errors, improving panel reliability in demanding environments. Application → Electrical protection blocks for machine controls and distribution panels. Feature → 0-30 A amperage rating and 600 V voltage rating, covering common industrial circuits. Business Impact → Enables precise overcurrent protection for motors, drives, and control circuits, reducing nuisance trips. Application → Machinery protection in packaging lines and process equipment. Feature → 200 kAIC short-circuit rating, high fault tolerance. Business Impact → Higher system resilience in high-energy environments, minimizing outage duration. Application → Main feeders and branch circuits in industrial plants. Feature → RoHS Compliant and CE Marked with UL Listed and CSA Certified status. Business Impact → Ensures global compliance, streamlines procurement, and supports regulatory audits. Application → International manufacturing facilities and repair centers. Feature → Compact weight (0.1 lb) and space-efficient design with two-pole Class J, screw/pressure-plate termination. Business Impact → Facilitates dense panel layouts and easier replacement in confined spaces. Application → Control cabinets and sub-panels with tight mounting constraints.
Get a Quick Quote for a Eaton JM60030-2PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-2PR?
Enquire Now
FAQs
JM60030-2PR uses a screw with pressure plate termination, designed for secure, vibration-resistant connections in two-pole Class J configurations. This simplifies field wiring, reduces terminal loosening risk, and supports reliable operation in panel assemblies. Ensure conductors match the 0-30 A rating and torque specifications per Eaton guidelines to maximize connection integrity.
The device is rated for 0-30 A, 600 V and 200 kAIC short-circuit capability. It carries UL Listed and CSA Certified marks and is RoHS Compliant with CE marking, ensuring broad regulatory compatibility and suitability for global deployments across panels and machinery.
Yes, it is designed for industrial protection duties with robust Class J fuse blocking and high short-circuit tolerance. While it does not specify an IP rating in the provided data, its compliance marks (UL, CSA, RoHS, CE) indicate readiness for regulated industrial applications, and its two-pole configuration supports reliable operation in demanding settings.
Its screw with pressure plate terminations ensure fast, secure wiring, while the modular two-pole design allows quick fuse replacement without sacrificing reliability. The high short-circuit rating minimizes the risk of extended outages, and the compact form factor simplifies panel reconfigurations, enabling faster maintenance cycles and reduced downtime.
The product aligns with Eaton Bussmann series practices, with catalog references and datasheets available from Eaton. Compatibility with standard Bussmann/Category J fuses and compatible panel designs is supported, and official Eaton documentation provides installation guidelines and application notes to maximize ROI and compliance across machines and panels.
