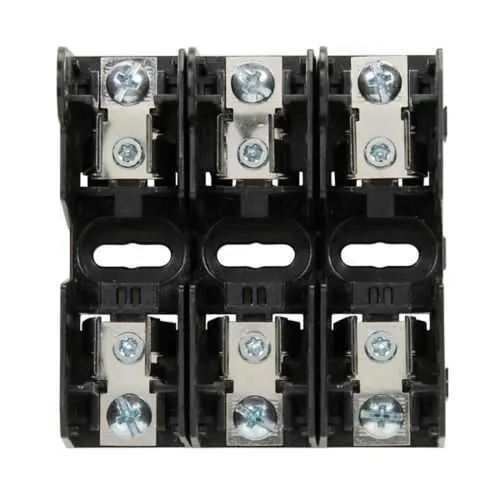

Eaton JM60030-2SR Modular Fuse Block - UL Listed
Part Number: JM60030-2SR
Quick Summary
The Eaton JM60030-2SR modular fuse block provides compact overcurrent protection for control panels and automation equipment. Engineers often battle downtime during fuse replacement and panel rework; this module reduces those delays with a straightforward two-pole design. The device carries UL Listed, CSA Certified, and CE Marked certifications, ensuring global compliance and easier audits. With a 0–30 A rating, 200 kAIC short-circuit capability, and a 600 V rating, it offers reliable protection for motors, drives, and logic circuits. Designed for Bussmann series compatibility, it simplifies procurement and installation while supporting RoHS compliance.
Product Information
Extended Description
JM60030-2SR Eaton: Eaton Bussmann series JM modular fuse block, 0-30 A, Two-pole, Class J, 200 kA, Philslot screws/pressure plate, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-2SR
UPC
051712514583
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
Connection
Philslot screws/pressure plate
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-2SR
Feature: 0–30 A amperage rating and 200 kA short-circuit capacity in a compact two-pole Class J block. Business Impact: provides robust protection for costly drives and control circuits while enabling compact panel layouts. Application: machine builders and control panels seeking reliable protection without sacrificing space. Feature: Philslot screws/pressure plate termination for secure, vibration-resistant connections. Business Impact: reduces field rework and loosening under harsh conditions, shortening installation times. Application: equipment in manufacturing floors or mobile machinery where vibration is a concern. Feature: RoHS Compliant and CE Marked with UL Listed and CSA Certified status. Business Impact: simplifies cross-border compliance and audit readiness. Application: global deployments in safety-critical machinery. Feature: 600 V rating across two poles. Business Impact: supports standard low-to-medium voltage control circuits, reducing component variety. Application: motor control panels and power distribution in industrial settings. Feature: Compatibility with Bussmann JM modular fuse family. Business Impact: streamlines procurement, stock management, and spare-part planning. Application: standardized protection across multiple panel lines. Feature: Easy, fast fuse changes and industry-standard termination. Business Impact: minimizes downtime during maintenance windows and enhances uptime metrics. Application: OEMs and service teams maintaining critical equipment in production environments.
Get a Quick Quote for a Eaton JM60030-2SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-2SR?
Enquire Now
FAQs
The JM60030-2SR is designed for two-pole Class J protection with Philslot screws/pressure plate terminations, making it straightforward to install in standard machinery control panels. It supports common Bussmann JM series accessories, enabling seamless integration with existing fuse holders and panel layouts while maintaining secure termination and vibration resistance.
This fuse block handles a 0–30 A amperage rating, up to 200 kA short-circuit rating, and a 600 V voltage rating. These specifications allow protection of motors, drives, and logic circuits in automation equipment, ensuring quick fault isolation while supporting high interrupting currents in demanding applications.
Yes. The JM60030-2SR is engineered as a Class J modular fuse block intended for use with Class J fuses. Its 600 V rating makes it compatible with typical control panel and machine protection circuits, ensuring safe operation and standardized protection across equipment in industrial environments.
The JM60030-2SR carry UL Listed, CSA Certified, and CE Marked certifications, along with RoHS compliance. These credentials support global deployment, simplify conformity documentation, and facilitate audits for safety and environmental requirements in diverse regions.
The modular design enables faster fuse changes and easier field maintenance, reducing downtime during service windows. Standardized termination and compatibility with the Bussmann JM family simplify spares management, improving procurement efficiency and total cost of ownership for panel builders and OEM integrators.
