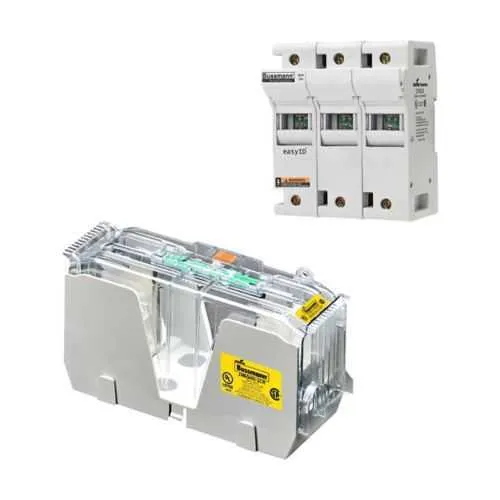

Eaton JM60030-3CHR modular fuse block - 200 kAIC
Part Number: JM60030-3CHR
Quick Summary
Eaton JM60030-3CHR modular fuse block protects panels from overcurrent in electrical distribution. It addresses field reliability and installation speed, reducing wiring errors and panel downtime. RoHS compliant, PED 97/23 EC certified, and Class J fuse type provide robust protection. Designed for DIN rail and panel mounting, it enables box-lug terminations with 600 V safety and high fault-current resilience. For buyers, this translates to faster commissioning and safer, compliant installations. With a 200 kAIC interrupt rating and 30 A per-pole capacity, it supports reliable protection for demanding loads. The included CVR(I)-J-60030 accessory simplifies field retrofit and ensures CVR compliance with the unit.
Product Information
Extended Description
JM60030-3CHR Eaton: Eaton Bussmann series JM modular fuse block, Box Lugs with hex screws, 30 A, 3P, 120°C, 50 lb-in max, Class J, CVR(I)-J-60030, Black, 200 kAIC, 75 °C, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-3CHR
UPC
051712620611
Product Length/Depth
3.4 in
Product Height
2.3 in
Product Width
3.3 in
Product Weight
0.4334375 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-J-60030
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-3CHR
Feature → 30 A Class J fuse block, 3-pole design, 600 V rating, and 200 kAIC interrupt rating. Business Impact → Delivers robust fault-current protection, reducing unplanned downtime and protecting sensitive drives and circuits. Application → Suitable for electrical panels, DIN-rail assemblies, and panel boards in industrial automation environments. Feature → Box Lugs with hex screws, #2-14 AWG conductors, conductor material rated for Both, and 75 °C conductor rating. Business Impact → Improves termination reliability, allows flexible wire choices, and reduces rework. Application → Control cabinets, machine builds. Feature → Mounting versatility: Panel and DIN rail mounting; CVR(I)-J-60030 accessory. Business Impact → Speeds installation, reduces mounting hardware variety, and supports easy retrofits. Application → New builds and retrofits in industrial plants. Feature → RoHS compliant; PED 97/23 EC certification; 200 kA RMS symmetrical short-circuit rating. Business Impact → Ensures regulatory compliance and safe operation across international installations. Application → Global machinery builds and export. Feature → Conductor temperature rating 75 °C; Operating temperature 120 °C; Weight 0.433 lb; Torque rating 50 lb-in; 3.4 in length and 3.3 in width. Business Impact → Delivers thermal and mechanical reliability, enabling dense layouts and robust installation. Application → Tight spaces in control panels and compact electrical assemblies.
Get a Quick Quote for a Eaton JM60030-3CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-3CHR?
Enquire Now
FAQs
JM60030-3CHR supports both panel mounting and DIN-rail installation, enabling flexible layouts for control cabinets and machine centers. It uses box-lug terminations with hex screws for secure connections and accepts #2–14 AWG conductors rated up to 75 °C. This combination reduces field wiring time and ensures reliable terminations under vibration.
The fuse block is rated for 30 A with a Class J fuse type, 600 V maximum voltage, and a 200 kAIC interrupt rating. It also provides a 200 kA RMS symmetrical short-circuit rating and 200 kA RMS impulse withstand capability, making it suitable for high-energy industrial environments.
Yes. JM60030-3CHR is RoHS compliant and PED 97/23 EC certified, aligning with European safety and environmental standards. Its Class J fuse design further supports regulatory compliance in industrial machinery and control panels.
This fuse block is ideal for electrical distribution panels, DIN-rail mounted control cabinets, and machine control centers requiring robust overcurrent protection, reliable box-lug terminations, and compliance with international environmental and safety regulations.
The design delivers high reliability with secure hex-screwed box lugs and accommodating conductor sizes, reducing rework and field wiring errors. With a 30 A rating and high interrupt capability, it minimizes downtime from faults, while regulatory compliance supports safer, longer-lasting installations across diverse industrial scenarios.
