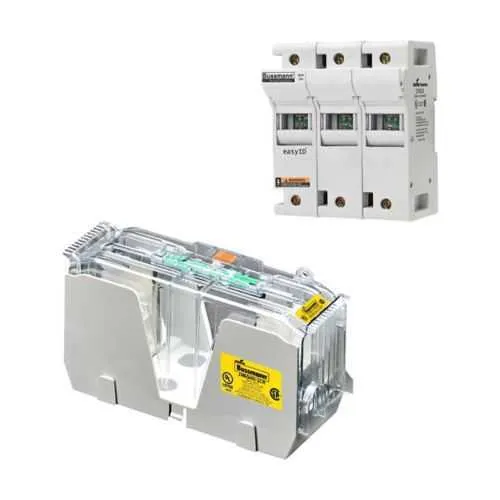

Eaton JM60030-3MW14 Modular Fuse Block - Class J
Part Number: JM60030-3MW14
Quick Summary
The Eaton JM60030-3MW14 modular fuse block provides three-pole protection for control panels and machine builds. Engineers often face wiring complexity, space constraints, and high fault-current demands in modern equipment. RoHS compliance and PED certification ensure regulatory alignment, while its DIN-rail mounting and box-lug connections simplify installation. This combination delivers safer panel protection with predictable 200 kAIC interrupt rating and robust 600 V operation, reducing maintenance and downtime. Its compact footprint and reliable Class J fuse design support consistent performance in demanding environments, making it a practical choice for OEMs and service teams seeking efficiency and compliance.
Product Information
Extended Description
JM60030-3MW14 Eaton: Eaton Bussmann series JM modular fuse block, Multi-wire load-side lug, 30 A, 3-P, 120 °C, 50 lb-in Max, Class J, Black, Box lug, 200 kAIC, 75 °C, DIN rail, Panel, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-3MW14
UPC
051712620581
Product Length/Depth
3.4 in
Product Height
2.3 in
Product Width
3.3 in
Product Weight
0.475 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Multi-Wire Load-Side Lug
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-3MW14
Feature: Three-pole Class J fuse block with box lug terminals. Business Impact: Delivers compact, rugged protection and simplified wiring, reducing installation time. Application: Control panels for motors and conveyors. Feature: 30 A rating with 200 kAIC interrupt rating and 600 V operating voltage. Business Impact: Enables fast fault clearance and safer energy handling in high-demand machinery. Application: Power protection in automation equipment. Feature: DIN rail and panel mounting options. Business Impact: Flexible installation in tight spaces, lowering panel depth and easing serviceability. Application: OEM machinery, robotics, and machine-build integrations. Feature: RoHS compliance and PED certification. Business Impact: Regulatory alignment across markets, reducing audit risk and streamlining export. Application: European and global electrical assemblies. Feature: Multi-wire load-side lug and 75 °C conductor rating. Business Impact: Supports stranded conductors with reliable torque performance, enhancing field reliability. Application: Dense wiring zones in control panels.
Get a Quick Quote for a Eaton JM60030-3MW14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-3MW14?
Enquire Now
FAQs
Yes. JM60030-3MW14 is designed for both DIN rail and panel mounting, with a box lug connection that simplifies wiring and streamlines retrofit or new-build installations in standard industrial enclosures.
It provides 30 A amperage, 600 V voltage rating, and a 200 kAIC interrupt rating, along with 200 kA RMS symmetrical impulse withstand. These specs enable reliable fault clearance and robust energy handling in high-demand automation environments.
Yes. The JM60030-3MW14 carries PED 97/23 EC certification and RoHS compliance, making it suitable for European machinery and globally compliant electrical assemblies.
The block supports stranded conductors rated to 75 °C with a torque specification of up to 50 lb-in for secure field connections, reducing the risk of loose terminations in vibration-prone machinery.
The combination of a compact footprint, reliable Class J protection, and straightforward wiring reduces installation time, minimizes downtime after faults, and simplifies regulatory compliance, delivering measurable OPEX savings over the equipment lifecycle.
