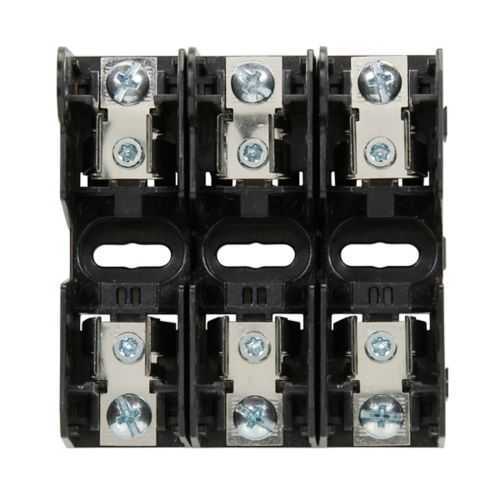

Eaton JM60030-3SR Modular Fuse Block - 200 kAIC
Part Number: JM60030-3SR
Quick Summary
The Eaton JM60030-3SR modular fuse block provides reliable three-pole protection for industrial control panels and machines. Design engineers often struggle with compact, regulatory-compliant protection devices that fit tight panel spaces while delivering dependable fault current protection. This unit carries RoHS compliance with CE marking and UL Listed and CSA Certified approvals, giving confidence across global builds. With a 0-30 A rating, 600 V voltage, and 200 kAIC short-circuit capacity, it adapts to diverse machine protections. Wiring is streamlined by Philslot screws/pressure plate connections, reducing install time and minimizing field wiring errors, improving uptime and maintenance efficiency.
Product Information
Extended Description
JM60030-3SR Eaton: Eaton Bussmann series JM modular fuse block, 0-30 A, Three-pole, Class J, Philslot screws/pressure plate, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60030-3SR
UPC
051712514590
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class J
Connection
Philslot screws/pressure plate
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60030-3SR
Feature: Three-pole JM modular fuse block design with Class J rating and Philslot screws/pressure plate. Business Impact: simplifies panel layouts, accelerates wiring and commissioning, enabling tighter control cabinets. Application: machine builders and automation panels in packaging, conveyor, and robotics lines. Feature: Amperage range 0-30 A, voltage rating 600 V, short-circuit rating 200 kAIC. Impact: ensures appropriate protection for motors, feeders, and control circuits, reducing damage during faults and downtime. Application: automation panels in packaging lines, conveyors, and process equipment. Feature: RoHS Compliant, CE Marked; UL Listed, CSA Certified. Impact: streamlines procurement and regulatory compliance across regional operations. Application: global manufacturing environments needing certified protection devices. Feature: Compact, lightweight construction and secure Philslot/pressure plate connections. Impact: supports easy installation in tight enclosures and reduces wiring fatigue due to vibration. Application: small to mid-size control panels and retrofits in mature plants. Feature: Compatible with Eaton Bussmann JM fuse series. Impact: ensures interchangeability and scalable protection in growing automation architectures. Application: new builds and modernization projects across industrial facilities.
Get a Quick Quote for a Eaton JM60030-3SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60030-3SR?
Enquire Now
FAQs
The JM60030-3SR is a three-pole Class J modular fuse block designed for panel protection in industrial controls. It uses Philslot screws/pressure plate connections for reliable wiring and is compatible with standard Bussmann JM fuse configurations. It supports 0-30 A, 600 V, and up to 200 kAIC fault-current protection, making it suitable for machine control panels and automation cabinets. Mounting is intended for integration into typical control enclosures with standard electrical layouts, improving protection density and serviceability.
The JM60030-3SR features a 0-30 A amperage rating, a 600 V voltage rating, and a 200 kAIC short-circuit rating. It is a three-pole Class J fuse block with Philslot screws/pressure plate connections, designed to protect feeders, motors, and control circuits within industrial equipment while meeting safety and regulatory requirements.
This fuse block carries RoHS compliance and CE Marking, along with UL Listed and CSA Certified status. These certifications simplify cross-border procurement, reduce audit risk in regulated industries, and help ensure that panel assemblies meet global safety and environmental standards during commissioning and maintenance.
Typical applications include machine-building control panels, packaging and conveying lines, robotics and automation cabinets, and other industrial equipment requiring reliable protection up to 600 V. The combination of 0-30 A protection, 200 kAIC fault capacity, and three-pole Class J design supports both new installations and upgrades in existing systems seeking compact, certified protection.
Authorized documentation includes the Eaton Specification Sheet for JM60030-3SR and the Machinery Catalog overview. You can also access the Bussmann catalogs and datasheets linked in the product downloads, including the JM60030-3SR PDF, to verify electrical ratings, installation notes, and compliance details for procurement and design validation.
