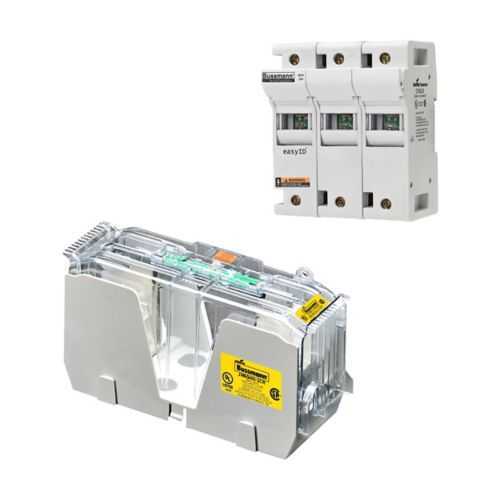

Eaton JM60060-1CHR modular fuse block - Class J, 200 kAIC

Part Number: JM60060-1CHR
JM60060-1CHR
Manufacturer
Eaton
Part number
JM60060-1CHR
Category

Quick Summary

The Eaton JM60060-1CHR modular fuse block provides reliable overcurrent protection for control panels and DIN rail installations. Engineers often struggle to fit robust protection into tight panel spaces while meeting high interrupt ratings and compliance demands. RoHS compliant and PED certified under 97/23 EC, it also offers a 60 A, 600 V rating with a 200 kAIC interrupt capability for safer, scalable systems. With DIN rail and panel mounting support, plus box-lug terminals sized for #2-14 AWG conductors, it reduces wiring time and helps lower total cost of ownership.

Product Information

Extended Description

JM60060-1CHR Eaton: Eaton Bussmann series JM modular fuse block, Box lugs with hex screws, 60 A, 1P, 120°C, 50 lb-inches max, Class J, CVR(I)-J-60060, Black, 200 kAIC, 75 °C, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-1CHR
UPC
051712620710
Product Length/Depth
3.7 in
Product Height
2.6 in
Product Width
1.5 in
Product Weight
0.19791667 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-J-60060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf Bussmann series Fuseology Eaton Specification Sheet - JM60060-1CHR
Feature: 60 A, 600 V Class J protection block. Business Impact: Delivers reliable protection for typical machine controls and automation panels, reducing downtime and equipment damage. Application: Ideal for control panels, machine builds, and automation enclosures where compact, robust fusing is required. Feature: 200 kAIC interrupt rating. Business Impact: Handles high fault currents without cascading failures, improving system reliability and safety. Application: Heavy industrial environments and high-short-circuit risk installations. Feature: Box lug terminals with hex screws. Business Impact: Ensures secure, low-resistance terminations that resist vibration and corrosion, minimizing maintenance. Application: Field wiring in DIN rail and panel-mounted assemblies. Feature: DIN rail and panel mounting compatibility. Business Impact: Flexible installation options save design time and enable retrofits without reworking cabinets. Application:OEM panels, machine-builds, and retrofit projects. Feature: Conductor rating and size compatibility (#2-14 AWG, 75 °C). Business Impact: Broad harness compatibility reduces inventory variety and simplifies sourcing. Application: Wiring harnesses in commercial, industrial, and process controls. Feature: RoHS compliant and PED certified. Business Impact: Regulatory compliance reduces risk of non-conformance penalties and eases cross-border deployments. Application: Global manufacturing lines with strict environmental and safety standards. Feature: Accessory CVR(I)-J-60060. Business Impact: Enhances arc-flash protection and visibility of enclosure integrity. Application: Safety-conscious installations and upgrade scenarios.

Get a Quick Quote for a Eaton JM60060-1CHR

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton JM60060-1CHR? Enquire Now

FAQs

The JM60060-1CHR supports both DIN rail and panel mounting, allowing flexible placement in control cabinets and machine enclosures. It uses box lug terminals capable of accommodating #2-14 AWG conductors and employs hex screws for secure, vibration-resistant connections, simplifying field installations.
This unit provides a 60 A amperage rating, 600 V voltage rating, and a 200 kAIC interrupt rating, with an impulse withstand of 200 kA RMS symmetrical. It uses a Class J fuse, delivering reliable short-circuit protection suitable for demanding automation environments.
Yes. The JM60060-1CHR is RoHS compliant and carries PED certification under directive 97/23 EC, supporting regulatory compliance for European and global installations and helping mitigate regulatory risk in multi-site deployments.
Common use cases include machine control panels, industrial automation cabinets, and process control enclosures where compact, reliable overcurrent protection is needed. Its DIN rail compatibility and robust 60 A/600 V rating make it suitable for packaging lines, assembly cells, and OEM equipment builds.
The CVR(I)-J-60060 accessory is listed for this fuse block, providing enhanced enclosure protection. This accessory supports safer operation and improved visibility of protective coverage, particularly in safety-conscious installations and retrofit projects.
