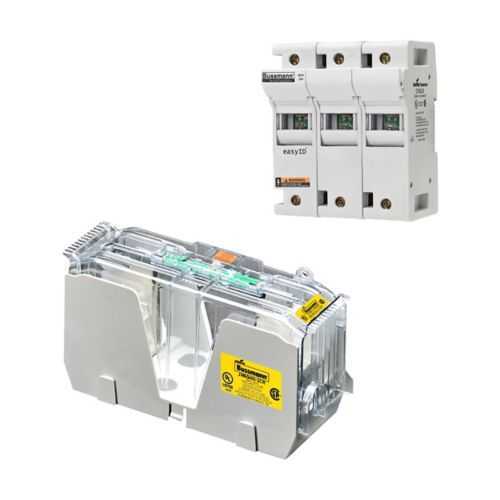

Eaton JM60060-1MW14 Modular Fuse Block - PED Certified
Part Number: JM60060-1MW14
Quick Summary
The Eaton JM60060-1MW14 modular fuse block provides reliable electrical protection for control panels and machinery. Engineers often struggle with wiring complexity, space constraints, and meeting safety standards in compact automation environments. This unit carries PED certification under 97/23 EC and RoHS compliance, with a robust 60 A, 600 V rating to support critical loads. Designed for DIN rail and panel mounting, it simplifies installation, reduces maintenance costs, and helps ensure consistent protection across panel builds and machine applications.
Product Information
Extended Description
JM60060-1MW14 Eaton: Eaton Bussmann series JM modular fuse block, 60 A, 1P, 120°C, Class J, CVR(I)-J-60060, Black, Line: (1) 2-14 Cu, 2-8 Al, Load: (1) 8-14 Cu, (2) 12-14 Cu, (1) 8 Str Al, (1) 10 Sol Al, 200 kA, 75°C, Stranded, DIN rail, Panel, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-1MW14
UPC
051712620628
Product Length/Depth
3.7 in
Product Height
2.6 in
Product Width
1.5 in
Product Weight
0.2375 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Accessories
CVR(I)-J-60060
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Multi-Wire Load-Side Lug
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60060-1MW14
The device offers a compact, single-pole Class J fuse block rated at 60 A and 600 V, delivering targeted protection that minimizes fault propagation and downtime for critical loads; this translates to improved machine uptime and reduced repair costs in industrial panels. The CVR(I)-J-60060 accessory is included to streamline control circuit protection and signaling, enabling quicker diagnostics and safer shutdown sequences in automated lines. With conductor material rated for both copper and aluminum and load-side lug configurations, it provides flexible wiring options and simplified inventory management in mixed-fiber facilities, saving time during installation. Its high fault-current withstand of 200 kA RMS and 200 kAIC interrupt rating delivers reliable protection for demanding applications, even in short-circuit events. The DIN rail and panel mounting compatibility, plus a compact footprint (3.7 in L x 2.6 in H x 1.5 in W), makes retrofits and new builds straightforward while maintaining panel density. Built to meet RoHS and PED requirements, the JM60060-1MW14 supports compliance-driven projects and reduces risk of regulatory delays in regulated markets.
