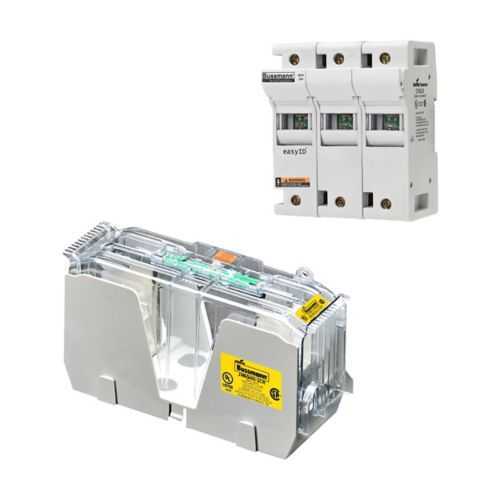

Eaton JM60060-2CHR Modular Fuse Block - 200 kAIC

Part Number: JM60060-2CHR
JM60060-2CHR
Manufacturer
Eaton
Part number
JM60060-2CHR
Category

Quick Summary

Eaton JM60060-2CHR modular fuse block protects panels and DIN-rail mounted controls in industrial applications. Upgrading cabinets often leads to wiring bottlenecks and unexpected outages, but its box lugs with hex screws simplify field connections. With RoHS compliance and PED (97/23 EC) certification, it aligns with global machinery standards while delivering robust Class J 60 A protection. This JM block integrates easily with CVR(I)-J-60060 accessories and supports 2P configurations, offering a practical, cost-conscious solution for panel builders and integrators. Used in manufacturing lines, material handling, and packaging equipment, it helps improve uptime and simplifies spare-part planning.

Product Information

Extended Description

JM60060-2CHR Eaton: Eaton Bussmann series JM modular fuse block, Box lugs with hex screws, 60 A, 2P, 120°C, 50 lb-inches max, Class J, CVR(I)-J-60060, Black, 200 kAIC, 75 °C, Stranded, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-2CHR
UPC
051712620727
Product Length/Depth
3.7 in
Product Height
2.6 in
Product Width
3 in
Product Weight
0.39583333 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-J-60060
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf Bussmann series Fuseology Eaton Specification Sheet - JM60060-2CHR
Feature: 60 A amperage rating in a two-pole Class J fuse block enables targeted protection for control circuits; Business Impact: reduces the risk of nuisance trips and costly downtime while allowing precise coordination with protection schemes; Application: suitable for 600 V panel and DIN-rail installations. Feature: 200 kAIC interrupt rating and 200 kA RMS short-circuit rating provide high fault-current tolerance; Business Impact: enhances safety and reliability in demanding industrial environments; Application: critical machinery and automated lines. Feature: Box lugs with hex screws enable secure, vibration-resistant terminations; Business Impact: speeds up installation and reduces wiring errors; Application: field wiring for #2-14 AWG stranded conductors. Feature: Conductor material rated for Both and 75 °C temperature rating ensures compatibility with common control wiring; Business Impact: lowers replacement costs and expands wire routing options; Application: panel interconnects and DIN-rail blocks. Feature: Mounting method supports Panel and DIN rail mounting with a compact footprint; Business Impact: simplifies retrofits and modular expansions; Application: machine enclosures and control cabinets. Feature: RoHS compliance and PED 97/23 EC certification reduce regulatory risk and streamline approvals; Business Impact: aids procurement for multinational projects; Application: European machinery, global manufacturing. Feature: Accessories such as CVR(I)-J-60060 extend protection coverage and ease field customization; Business Impact: adds future-proofing and warranty-support flexibility; Application: panel upgrades and maintenance.

Get a Quick Quote for a Eaton JM60060-2CHR

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton JM60060-2CHR? Enquire Now

FAQs

Install on a compatible DIN rail or panel surface, secure wire terminations with box lugs and hex screws, and torque to 50 lb-in. Use stranded #2-14 AWG conductors and verify proper clearance around adjacent components for thermal and fault current safety.
The block is rated for 60 A, 600 V, with a 200 kAIC interrupt rating and a 200 kA RMS short-circuit rating. It uses a Class J fuse type and is designed for robust operation in industrial control circuits.
Yes. It is RoHS compliant, and it carries PED 97/23 EC certification, supporting regulatory compliance for European machinery and global manufacturing environments.
Wire size range is #2-14 AWG stranded conductors with a 75 °C rating. The product supports both conductors, with box lug connections designed for secure, vibration-resistant terminations in panel and DIN-rail installations.
CVR(I)-J-60060 is an available accessory, enabling cover and contact protection integration. This supports field customization, improved enclosure protection, and easier maintenance planning for upgraded control panels.
