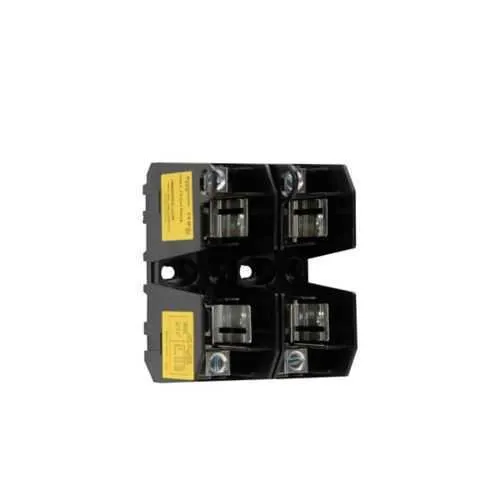

Eaton JM60060-2CR Modular Fuse Block - 200 kAIC
Part Number: JM60060-2CR
Quick Summary
The Eaton JM60060-2CR Modular Fuse Block is a two-pole protection device designed to guard 600 V control circuits in industrial panels. This modular fuse block simplifies protection schemes while fitting tight spaces in modern machines. A common challenge is selecting fuses that meet high fault-current levels without complicating wiring or increasing panel depth. The JM60060-2CR addresses this with a 200 kAIC interrupt rating and Class J construction, backed by UL Listed and CSA Certified approvals, plus RoHS compliance and CE marking for global applicability. By delivering robust protection with straightforward installation, it helps minimize downtime, streamline maintenance, and reduce total cost of ownership for machine builders and panel shops alike.
Product Information
Extended Description
JM60060-2CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 35-60 A, Two-pole, Class J, 200 kA, Box lug, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-2CR
UPC
051712514675
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
35-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
Connection
Box lug
Special features
CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60060-2CR
Feature: Amperage rating 35–60 A. Business impact: precise protection for common control-panel circuits, reducing nuisance trips and extending equipment life. Application: ideal for machine controls, motor starters, and line-side protection in conveyors and packaging lines. Feature: Interrupt rating 200 kAIC and short-circuit rating 200 kA. Business impact: withstands high fault currents, lowering the risk of fuse block damage in heavy-load environments and ensuring safer startup sequences. Application: suitable for feeders and power distribution in manufacturing cells. Feature: 600 V rating with two poles and Class J construction. Business impact: proven protection compatibility with standard industrial systems while maintaining reliable disconnection performance. Application: integrates into 600 V systems across industrial controls and automation panels. Feature: Box lug connections and CR designation. Business impact: simplifies wiring, improves vibration resistance, and speeds field wiring and maintenance. Application: preferred for compact enclosures and retrofit projects in OEM deployments. Feature: Compliance and documentation – RoHS, CE, UL Listed, CSA Certified. Business impact: expedites procurement and regulatory approvals, reducing compliance risk. Application: supports global sourcing for multinational plant networks.
Get a Quick Quote for a Eaton JM60060-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60060-2CR?
Enquire Now
FAQs
When wiring the JM60060-2CR, plan for a two-pole layout with box lug terminations to ensure secure, vibration-resistant connections. The 600 V rating means wiring insulation and bus materials should meet or exceed these standards. Allow for proper clearance and easy access for fuse replacement, and consider wiring routes that minimize lead length to reduce impedance effects in high-current applications.
The JM60060-2CR is rated for 35–60 A per pole and 600 V, making it suitable for medium-load control circuits, motor starters, and small drives within industrial panels. This range supports typical machine-build protection without oversizing, enabling coordinated protection with other Bussmann series devices and simplifying spare-part inventories.
Yes. The JM60060-2CR carries UL Listed and CSA Certified certifications and complies with RoHS and CE marking. This combination supports global procurement and regulatory acceptance, reducing compliance risk for multinational manufacturing sites and ensuring consistent performance across diverse regions.
The JM60060-2CR is part of Eaton’s Bussmann series, designed for cohesive electrical protection in industrial systems. Its Class J rating, two-pole construction, and box lug connections align with other Bussmann protection devices, enabling straightforward panel integration, standardized spare parts, and seamless coordination with existing protection schemes.
The JM60060-2CR helps reduce downtime through robust high-current protection and reliable fault clearing (200 kAIC). Its straightforward wiring and compact form factor shorten installation time, while UL/CSA and RoHS/CE certifications minimize procurement complexity and regulatory risk, delivering lower total cost of ownership over the life of the equipment.
