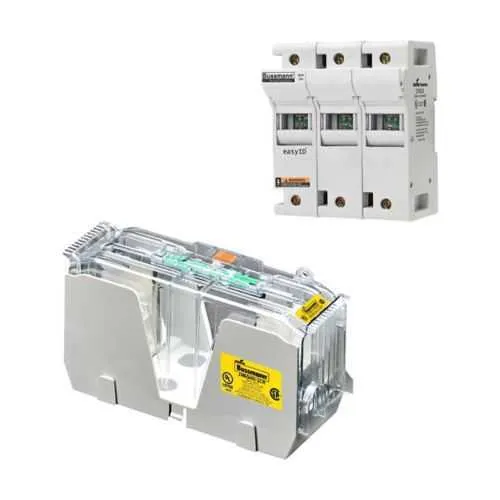

Eaton JM60060-3CHR Modular Fuse Block - 200 kAIC Rating

Part Number: JM60060-3CHR
JM60060-3CHR
Manufacturer
Eaton
Part number
JM60060-3CHR
Category

Quick Summary

JM60060-3CHR Eaton modular fuse block is a three-pole protection device designed for panel and DIN-rail power circuits, delivering reliable overcurrent protection in demanding industrial environments. This solution addresses wiring complexity and serviceability challenges by using box lugs with hex screws for secure terminations. Certifications include RoHS compliance and PED 97/23 EC (European Pressure Equipment Directive) to support regulatory needs, while a 60 A at 600 V rating with a 200 kAIC interrupt capacity ensures robust protection. The unit also supports CVR(I)-J-60060 accessories, enabling scalable protection schemes. By combining easy installation with high fault tolerance, it reduces downtime and total cost of ownership for industrial control panels and machinery.

Product Information

Extended Description

JM60060-3CHR Eaton: Eaton Bussmann series JM modular fuse block, Box lugs with hex screws, 60 A, 3P, 120°C, 50 lb-inches max, Class J, CVR(I)-J-60060, Black, 200 kAIC, 75 °C, Stranded, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-3CHR
UPC
051712620734
Product Length/Depth
3.7 in
Product Height
2.6 in
Product Width
4.5 in
Product Weight
0.59375 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-J-60060
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf Bussmann series Fuseology Eaton Specification Sheet - JM60060-3CHR
Feature: 60 A, 600 V electrical rating → Business Impact: Protects downstream circuits from overcurrent while allowing compact, reliable installations in panel and DIN-rail configurations. Application: Ideal for three-phase machines and control panels requiring consistent protection without oversized components. The expected outcome is improved safety margins and reduced nuisance tripping in typical industrial loads. Feature: 200 kAIC interrupt rating → Business Impact: Provides high fault current protection for critical feeders, lowering the risk of cascading failures in high-energy environments. Application: Useful in machine builders and packaging lines where short-time fault currents are common. Feature: Class J fuse type with box lug connections → Business Impact: Delivers dependable fuse protection with vibration-resistant terminations, reducing maintenance frequency. Application: Suitable for harsh environments where secure, serviceable wiring is essential. Feature: Panel and DIN rail mounting → Business Impact: Offers installation flexibility to meet varied control layouts, accelerating commissioning. Application: Supports retrofit projects and new builds across manufacturing lines. Feature: Conductor temperature rating 75 °C and 60 A wire range #2-14 AWG Stranded → Business Impact: Ensures compatibility with typical control wiring, preserving conductor integrity under ambient heat. Application: Useful in compact control panels where conductor routing is tight. Feature: Accessories CVR(I)-J-60060 and 50 lb-in torque → Business Impact: Facilitates verification and secure mounting; torque control minimizes loosening from vibration. Application: Ideal for systems with periodic maintenance cycles. Feature: RoHS compliant and PED 97/23 EC certification → Business Impact: Improves regulatory compliance and customer acceptance, enabling safer import and installation in EU markets. Application: Aligns with global industrial sourcing requirements. These combined features support reliable protection, easier installation, and lower lifecycle costs in industrial protection and control applications.

Get a Quick Quote for a Eaton JM60060-3CHR

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton JM60060-3CHR? Enquire Now

FAQs

Install JM60060-3CHR on a standard DIN rail or panel mounting plate using the provided box lug terminals with hex screws. Ensure the connectors accept #2-14 AWG stranded conductors, tighten to the 50 lb-in torque specification, and verify the unit sits securely to avoid vibration-induced loosening. This approach reduces wiring errors and speeds commissioning.
The device is rated for 60 A at 600 V with a short-circuit/interrupt rating of 200 kAIC and an impulse withstand of 200 kA RMS symmetrical. It uses a Class J fuse and supports three poles, making it suitable for three-phase control circuits in industrial equipment.
Yes, the JM60060-3CHR is designed to work with the CVR(I)-J-60060 accessory, enabling enhanced protection configurations and extended functional integration within Eaton Bussmann JM modular fuse blocks. Compatibility simplifies upgrades and enables scalable protection schemes without replacing core components.
The JM60060-3CHR is RoHS compliant and certified under PED 97/23 EC (European Pressure Equipment Directive). This combination supports regulatory compliance in EU markets and helps satisfy customer and industry standards for electrical protection components.
This three-pole fuse block is commonly used in machine control panels, electrical cabinets, and DIN-rail mounted power distributions in manufacturing, packaging, and process industries. Its robust 200 kAIC interrupt rating, 60 A rating, and box lug termination simplify wiring, improve reliability, and reduce maintenance in harsh industrial environments.
