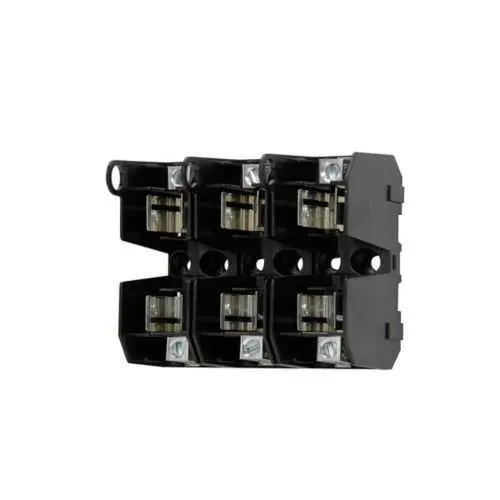

Eaton JM60060-3CR Modular Fuse Block - 200 kAIC UL Listed
Part Number: JM60060-3CR
Quick Summary
Eaton JM60060-3CR modular fuse block provides reliable overcurrent protection for industrial electrical panels and machine controls. This compact three-pole unit helps reduce downtime by delivering predictable fuse performance across 35–60 A loads. The JM60060-3CR carries UL Listed, CSA Certified, and CE marking, along with RoHS compliance, reinforcing safety and regulatory adherence in global installations. Designed for panel builders and integrators, it offers robust Class J protection with box lug connections rated up to 600 V and 200 kAIC interrupt capability. With Eaton's Bussmann JM series heritage, you gain consistent interchangeability, easier stocking, and faster field maintenance, while meeting stringent industry standards.
Product Information
Extended Description
JM60060-3CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 35-60 A, Three-pole, Class J, Box lug, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-3CR
UPC
051712514682
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
35-60A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class J
Connection
Box lug
Special features
CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60060-3CR
Feature: Three-pole Class J modular fuse block with box lug connections. Business Impact: Enables compact, high-current protection in control panels without sacrificing safety or reliability. Application: Ideal for machine control cabinets and feeder circuits in manufacturing environments. Feature: Amperage range 35–60 A and 200 kAIC interrupt rating. Business Impact: Delivers strong fault tolerance and fast isolation to minimize equipment damage and downtime. Application: Suitable for motors, drives, and critical feeders in high-load applications. Feature: 600 V voltage rating and UL Listed, CSA Certified, CE Marked compliance. Business Impact: Streamlines procurement and regulatory approvals across global sites, reducing project risk. Application: Used in multinational facilities with strict electrical standards. Feature: Special features CR and RoHS compliance. Business Impact: Supports safe, compact designs with reduced environmental impact and easier maintenance. Application: Fits modern machine-builds and panel assemblies requiring RoHS and regulatory conformity. Feature: Box lug connection and modular Bussmann JM series ecosystem. Business Impact: Simplifies installation, improves terminal reliability, and enhances part interchangeability for spares. Application: Replacements or expansions in existing Eaton/JM installations, with faster maintenance.
Get a Quick Quote for a Eaton JM60060-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60060-3CR?
Enquire Now
FAQs
Yes. The JM60060-3CR is designed to integrate with Eaton Bussmann JM modular systems and uses standard box lug terminations. When replacing an older unit, ensure the same Class J rating and current range are matched to the circuit requirements. Always verify clearance, wiring gauge, and torque specifications per the Eaton installation guide to maintain a secure, code-compliant connection.
Key specs include a 35–60 A amperage rating, 200 kAIC interrupt rating, 200 kA short-circuit rating, and a 600 V voltage rating. These parameters determine how quickly the fuse block responds to faults, the maximum fault current it can safely interrupt, and its suitability for high-energy applications such as motor drives and feeders in industrial environments.
Yes. The JM60060-3CR carries CE marking, UL Listed, and CSA Certified, aligning with global electrical safety and performance requirements. This makes it suitable for multinational panel builds and equipment deployed in regions with stringent regulatory expectations, simplifying cross-border procurement and compliance.
Plan for periodic inspection of box lug connections for tightness and signs of corrosion, especially in harsh or humid environments. Maintain spare JM60060-3CR units to minimize downtime during fuse replacement. Leverage the EMC compatibility and RoHS compliance to support future upgrades without re-certification in many regions.
The three-pole design with high interrupt rating enables fast fault isolation, reducing downtime and preventing collateral damage to downstream components. Interchangeability within the JM series lowers stocking costs, while UL CSA CE certifications streamline approvals. Combined, these factors shorten project timelines and lower total cost of ownership.
