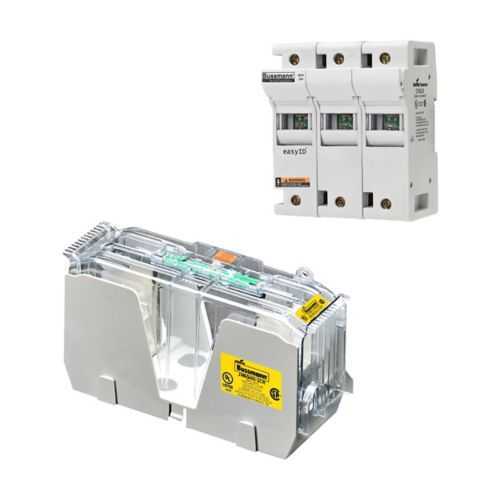

Eaton JM60060-3MW12 Modular fuse block - 200 kAIC
Part Number: JM60060-3MW12
Quick Summary
Eaton JM60060-3MW12 modular fuse block is a reliable overcurrent protection device for control panels and machinery. Engineers often struggle to fit robust protection into compact DIN-rail enclosures without sacrificing wiring accessibility and serviceability. This unit delivers RoHS compliance and PED 97/23 EC certification for European markets, paired with a 200 kAIC interrupt rating and 600 V rating to meet demanding standards. Designed for ease of installation and long-term reliability, it supports box-lug terminations for Cu or Al conductors and accommodates DIN-rail mounting for tight panel layouts.
Product Information
Extended Description
JM60060-3MW12 Eaton: Eaton Bussmann series JM modular fuse block, Multi-wire line-side lug, 3-P, 120°C, 50 lb-inches max, 60 A, Class J, CVR(I)-J-60060, Black, Box lug, 200 kAIC, 75 °C, DIN rail, Panel, 600 V, #2-14 AWG Cu, #2-8 AWG Al
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-3MW12
UPC
051712620673
Product Length/Depth
3.7 in
Product Height
2.6 in
Product Width
4.5 in
Product Weight
0.7125 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-8 AWG Al #2-14 AWG Cu
Accessories
CVR(I)-J-60060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Multi-Wire Line-Side Lug
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60060-3MW12
The 60 A, 600 V Class J modular fuse block delivers strong protection with a high interrupt capability, enhancing machine uptime and safeguarding expensive drives and controls. By leveraging a multi-wire line-side lug, it simplifies wiring schemes and reduces termination errors, which translates into lower commissioning time and fewer field failures. Its Cu/Al wire compatibility and Box lug connections minimize inventory complexity while supporting quick field retrofits. The DIN rail and panel mounting options streamline installation in densely packed control panels, delivering a compact footprint without compromising accessibility for maintenance. RoHS compliance and PED 97/23 EC certification provide regulatory assurance in European applications, while the 200 kAIC and 75 °C conductor rating align with high-energy environments typical of industrial automation. Together, these features enable safer, compliant, and cost-effective protection across manufacturing lines.
Get a Quick Quote for a Eaton JM60060-3MW12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60060-3MW12?
Enquire Now
FAQs
To install JM60060-3MW12, mount the unit on a standard DIN rail or attach it to a panel as required. Ensure there is clearance for wiring and accessible torque for the 50 lb-in maximum. Use the box lug terminals for Cu or Al conductors (#2-14 AWG Cu, #2-8 AWG Al). Verify the three-pole alignment and secure mounting to maintain clean, vibration-resistant connections in demanding environments.
The fuse block is rated for 60 A and 600 V, with an impulse withstand voltage of 200 kA RMS symmetrical and a short-circuit rating of 200 kAIC. It uses a Class J fuse and is designed for 3-pole operation. The conductor temperature rating is 75 °C, and the unit supports a maximum torque of 50 lb-in for reliable terminations.
Yes. The device supports copper conductors #2-14 AWG and aluminum conductors #2-8 AWG, using box lug terminations. This compatibility simplifies procurement and enables mixed-wire installations in multi-supply panels, improving flexibility for evolving control-stage designs and reducing the need for different fuse block variants.
JM60060-3MW12 complies with RoHS, ensuring restrictions on hazardous substances are met, and is certified under the PED 97/23 EC directive for European pressure equipment requirements. These certifications support safe operation within European machinery and panel-building standards, reducing compliance risk for OEMs and end users deploying this block in regulated environments.
The three-pole Class J design, DIN rail mounting, and multi-wire line-side lug reduce wiring complexity and panel footprint. Box-lug terminations support fast wiring with Cu or Al conductors, while the compact dimensions (3.7 in x 2.6 in x 4.5 in) enable higher channel density. Its robust 200 kAIC rating helps maintain reliability in high-energy industrial settings.
