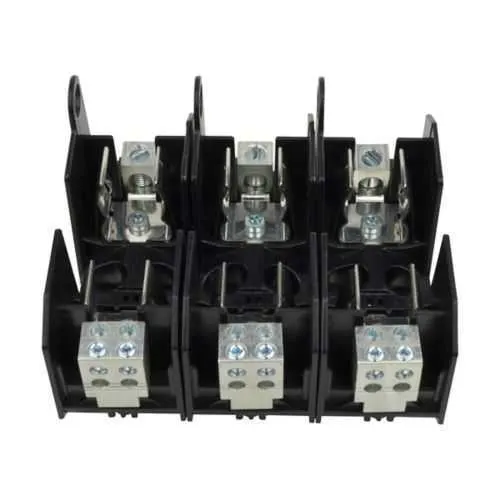

Eaton JM60060-3MW14 Modular Fuse Block - 200 kAIC
Part Number: JM60060-3MW14
Quick Summary
The Eaton JM60060-3MW14 modular fuse block provides reliable overcurrent protection for three-phase industrial panels and machinery. It addresses common pain points such as wiring complexity, retrofit challenges, and equipment downtime caused by undersized protection. RoHS compliance and PED 97/23 EC certification support regulatory alignment, while the device’s 200 kAIC interrupt rating and Class J fuse type deliver robust fault protection in demanding environments. Designed for panel and DIN rail mounting, this fuse block offers installation flexibility and scalable protection for automation cabinets, conveyors, and power distribution panels. Expect improved reliability, easier maintenance, and a clearer path to compliant, safer electrical protection in your industrial systems.
Product Information
Extended Description
JM60060-3MW14 Eaton: Eaton Bussmann series JM modular fuse block, Multi-Wire load-side lug, 60 A, 3P, 120°C, 50 lb-inches max, Class J, CVR(I)-J-60060, Black, Box lug, 200 kAIC, 75 °C, Stranded, Panel, DIN rail, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60060-3MW14
UPC
051712620642
Product Length/Depth
3.7 in
Product Height
2.6 in
Product Width
4.5 in
Product Weight
0.7125 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
200 kA RMS symmetrical
Interrupt rating
200 kAIC
Short-circuit rating
200 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor temperature rating
75 °C
Conductor type
Stranded
Fuse type
Class J
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Accessories
CVR(I)-J-60060
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Multi-Wire Load-Side Lug
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60060-3MW14
Feature: 60 A, 3P, Class J fuse block provides robust protection for three-pole systems. Benefit: Ensures reliable selectivity and fault clearing in medium-duty industrial networks, reducing downtime and extending equipment life. Application: Suitable for three-phase machinery and panelboards in automation environments. Feature: Multi-Wire Load-Side Lug and Box lug connections simplify wiring. Benefit: Shortens wiring time, minimizes risk of miswiring, and improves field reliability. Application: Easier installation in control panels and on DIN rails with stranded conductors. Feature: 200 kAIC interrupt rating and 200 kA RMS short-circuit rating. Benefit: High-energy fault protection for demanding drives and power systems, improving safety margins and system uptime. Application: Industrial motor control centers and packaging lines. Feature: 600 V voltage rating with 75 °C conductor rating. Benefit: Safe operation within typical industrial distribution networks while supporting flexible conductor choices. Application: Panel buses and MCCs requiring elevated insulation ratings. Feature: RoHS compliant with PED certification. Benefit: Ensures regulatory compliance for global deployments and reduces risk during audits. Application: Machinery and systems subject to European and global environmental standards. Feature: Panel or DIN rail mounting with CVR(I)-J-60060 accessory option. Benefit: Versatile installation supporting retrofit and new builds without dedicated enclosure redesign. Application: Control cabinets and machine enclosures that demand modular protection solutions.
Get a Quick Quote for a Eaton JM60060-3MW14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60060-3MW14?
Enquire Now
FAQs
The JM60060-3MW14 supports both panel mounting and DIN rail mounting, offering installation flexibility for compact control panels and larger cabinet assemblies. The device uses a box lug connection and is compatible with the CVR(I)-J-60060 accessory to simplify wiring and ensure secure terminations in space-constrained installations.
This three-pole module is rated for 60 A at 600 V and provides a 200 kAIC interrupt rating, along with a 200 kA RMS short-circuit rating. It uses Class J fuses and is designed for robust protection of medium-duty, 3-phase systems in automation environments.
Yes. The JM60060-3MW14 is RoHS compliant, supporting regulatory requirements for environmental safety. It also carries PED certification (97/23 EC), indicating suitability for pressure equipment applications, which helps with compliance in European machinery and safety standards.
Ideal for three-phase motor control, automation cabinets, and panel protection in manufacturing lines. With 600 V rating and 200 kAIC/ RMS fault rating, it suits high-energy environments while its modular, DIN rail-ready design simplifies integration into existing control architectures.
Ensure proper conductor sizing with stranded cables and tighten connections to the specified torque of 50 lb-in. Use the Box lug for incoming leads and the CVR(I)-J-60060 accessory if needed. Mount on panel or DIN rail to optimize space, maintain clearance, and ensure reliable thermal performance in 120 °C environments.
