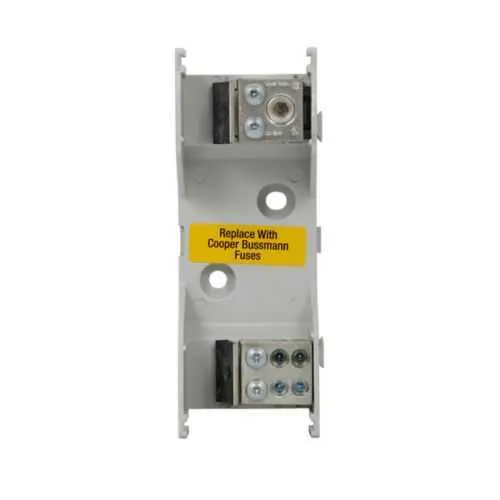

Eaton JM60100-1MW14 Modular Fuse Block - 200 kAIC
Part Number: JM60100-1MW14
Quick Summary
The Eaton JM60100-1MW14 modular fuse block delivers reliable overcurrent protection for motor drives and panelboards in industrial automation. This compact device helps reduce nuisance trips and simplifies field maintenance in space-constrained enclosures, keeping critical equipment running. It carries UL Listed, CSA Certified, and RoHS/CE compliance, ensuring safety, traceability, and regulatory conformance across your plant. With a Class J, 600 V rating and a 70–100 A operating range, it integrates smoothly with Bussmann JM modular systems, enabling standardization across multiple lines. By consolidating protection in a single, modular block, it supports easier stocking, faster replacements, and lower lifecycle costs for electrical protection in machines and panels.
Product Information
Extended Description
JM60100-1MW14 Eaton: Eaton Bussmann series JM modular fuse block, 70-100 A, Single-pole, Class J, 200 kA, Lineside: (1) 1/0-14 Cu/Al, Loadside: (4) 4-14 Cu, 4-8 Al, (8) 10-14 Cu, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60100-1MW14
UPC
051712491075
Product Length/Depth
5.37 in
Product Height
3 in
Product Width
1.98 in
Product Weight
0.33 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
70-100A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60100-1MW14
70–100 A amperage rating and 200 kA short-circuit rating provide robust protection for high-energy loads, reducing the likelihood of costly equipment damage and unplanned downtime. The Class J construction is optimized for branch circuit protection in industrial panels and motor control centers, delivering dependable coordination with downstream devices. The modular fuse block design simplifies replacement and modernization of protection schemes, allowing engineers to scale protection without rewiring. Lineside and loadside terminals are configured for straightforward wiring with common conductor sizes, which reduces installation time and potential miswiring during maintenance. The compact footprint—5.37 in long, 3 in high, 1.98 in wide—and light weight (0.33 lb) enable easier integration into crowded control panels and MCCs. Compliance with RoHS and CE Marking, along with UL Listed and CSA Certified status, supports regulatory acceptance in global facilities. Compatibility with Eaton Bussmann JM series enables standardized spares, faster deployment, and improved lifecycle planning for machine protection in manufacturing environments.
