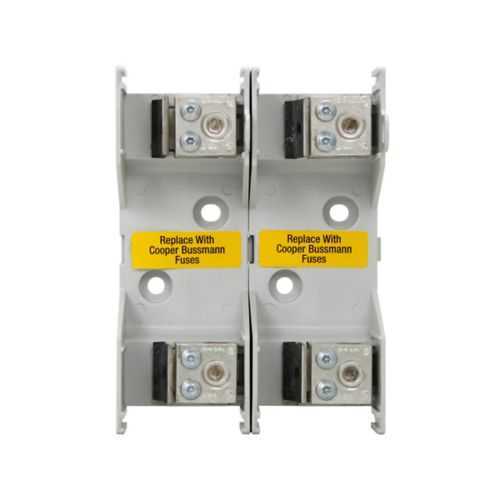

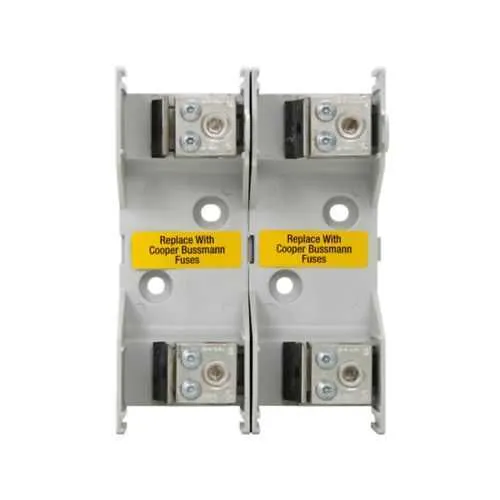

Eaton JM60100-2CR Modular Fuse Block - 200 kAIC
Part Number: JM60100-2CR
Quick Summary
JM60100-2CR is a modular fuse block that protects control circuits in industrial electrical panels. Engineers often struggle with cramped layouts and compatibility when upgrading protection devices. It carries UL Listed and CSA Certified marks, plus CE RoHS compliance for global deployments. Designed for 600 V systems and a 70–100 A range, this two-pole Class J fuse block with knife blade end connections delivers reliable protection while enabling straightforward field maintenance. By standardizing on the JM60100-2CR, teams reduce part proliferation, simplify sourcing, and accelerate commissioning, supporting safer, more efficient machine-building and electrical protection in demanding environments. This combination supports faster repair times and predictable spare-part inventory.
Product Information
Extended Description
JM60100-2CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 70-100 A, Two-pole, Class J, Knife blade end x knife blade end, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60100-2CR
UPC
051712391252
Product Length/Depth
5.38 in
Product Height
2.95 in
Product Width
4.6 in
Product Weight
0.63 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
70-100A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
Connection
Knife blade end x knife blade end
Special features
CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60100-2CR
Feature → Business Impact → Application. The 70–100 A amperage rating with a 200 kAIC interrupt capacity delivers robust overcurrent protection, reducing the risk of arc-flash events and unplanned downtime in high-energy control circuits, ideal for automotive, packaging, and process equipment applications. Application: machine-building and panel fabrication benefit from predictable protection performance and easier spare parts. Feature → Business Impact → Application. Knife blade end x knife blade end connections enable quick, secure field replacement with minimal torque requirements, reducing commissioning time and improving maintenance workflow in tight control panels. Application: retrofits and upgrades in limited-space installations, including conveyors and robotics, where space optimization matters. Feature → Business Impact → Application. Class J construction with a 600 V rating aligns with common commercial and industrial protection standards, supporting compliance and safer operation across OEM machinery. Application: machinery safety programs and integrated control systems that require reliable, code-compliant protection.
Get a Quick Quote for a Eaton JM60100-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60100-2CR?
Enquire Now
FAQs
The JM60100-2CR is UL Listed and CSA Certified, with CE RoHS compliance for global deployments, signaling conformance to North American and international electrical protection standards and reduced compliance risk in machinery builds.
JM60100-2CR uses two-pole Class J construction with knife blade end connections, matching standard Bussmann JM modular architecture. Its dimensions (5.38 in L, 2.95 in H, 4.6 in W) and 0.63 lb weight support straightforward integration into typical control panels and retrofits with minimal enclosure modification.
Ideal for machine-building, packaging lines, conveyors, and process equipment where control circuits require reliable overcurrent protection at up to 600 V and 70–100 A, aiding in compact panel design and compliant electrical protection in automation environments.
Key specs include a 70–100 A amperage rating, 200 kAIC interrupt rating, 200 kA short-circuit rating, and a 600 V voltage rating, with two poles and Class J construction to meet demanding industrial protection requirements.
Warranty is listed as Not Applicable for this part, but its UL/ CSA certifications and RoHS compliance support long-term reliability. With modular design and standard knife blade ends, maintenance and spare-parts sourcing are straightforward, helping optimize total cost of ownership in production environments.
