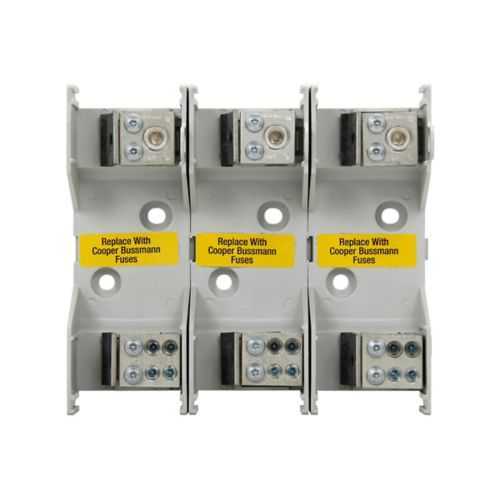

Eaton JM60100-3MW14 Modular Fuse Block - UL Listed, CSA Certified
Part Number: JM60100-3MW14
Quick Summary
The Eaton JM60100-3MW14 modular fuse block protects industrial electrical panels and control circuits with 70–100 A, three-pole protection. Engineers often face space constraints and the need for reliable, easily replaceable protection devices that won’t slow down commissioning. This unit is UL Listed and CSA Certified, RoHS compliant, and CE marked, reinforcing compliance across North American and international installations. Its compact footprint and 600 V rating simplify integration in tight control cabinets, while the lineside/loadside configurations support straightforward wiring and scalable protection for evolving machinery. Designed for Bussmann series compatibility, it delivers predictable maintenance intervals, faster part replacement, and improved total cost of ownership during plant uptime.
Product Information
Extended Description
JM60100-3MW14 Eaton: Eaton Bussmann series JM modular fuse block, 70-100 A, Three-pole, Class J, Lineside: (1) 1/0-14 Cu/Al, Loadside: (4) 4-14 Cu, 4-8 Al, (8) 10-14 Cu, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60100-3MW14
UPC
051712491099
Product Length/Depth
2.94 in
Product Height
5.41 in
Product Width
6 in
Product Weight
0.98 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
70-100A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60100-3MW14
Feature → Business Impact → Application: The JM60100-3MW14 provides a 70-100 A amperage rating with a 600 V voltage rating and a 200 kAIC short-circuit rating, delivering robust protection for demanding machinery while limiting risk of arc flash or fuse blowout. This translates to reduced unplanned downtime and improved equipment reliability in packaging lines and conveyors. Application: suitable for industrial control panels requiring Class J protection and modular expansion in evolving systems. Feature → Business Impact → Application: Three-pole design simplifies wiring schemas and enhances selectivity, enabling faster commissioning and easier maintenance in panelboards and electrical cabinets. Feature → Business Impact → Application: Line side and load side terminal configuration supports flexible installation with (1) 1/0-14 Cu/Al lineside and (4) 4-14 Cu, 4-8 Al, (8) 10-14 Cu loadsides, reducing field wiring errors and inventory complexity. Application: ideal for mid-to-large machinery where quick replacement and modular spares improve uptime. Feature → Business Impact → Application: RoHS compliant, CE marked, UL Listed, and CSA Certified construction ensures regulatory readiness and simplifies cross-border procurement for global plants. Application: suitable for multinational facilities seeking standardization and traceable compliance across equipment fleets.
Get a Quick Quote for a Eaton JM60100-3MW14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60100-3MW14?
Enquire Now
FAQs
JM60100-3MW14 uses lineside terminals (1) 1/0-14 Cu/Al and loadsides (4) 4-14 Cu, (4) 4-8 Al, and (8) 10-14 Cu. This layout supports straightforward wiring, simplified field installation, and reliable conductor termination for modular fuse protection in control panels.
Yes. The JM60100-3MW14 is UL Listed and CSA Certified, with RoHS compliance and CE marking, ensuring regulatory alignment for North American and international installations.
The unit supports a 70–100 A amperage rating and a 200 kAIC short-circuit rating, providing robust protection for machinery while allowing selective coordination and reduced nuisance tripping.
Ideal for industrial control panels, packaging lines, conveyors, and mid-to-large machinery requiring reliable Class J protection, easy modular expansion, and quick field maintenance with Bussmann series compatibility.
Its compact footprint, defined lineside/loadside terminations, and modular design shorten installation time, simplify spare parts inventory, and reduce maintenance time, delivering lower downtime and predictable lifecycle costs.
