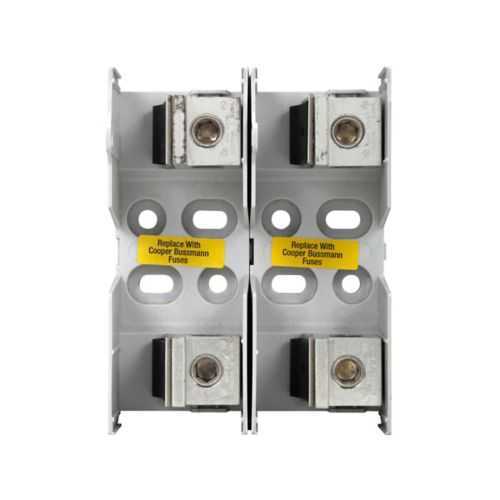

Eaton JM60200-2CR Modular Fuse Block - 200 kAIC
Part Number: JM60200-2CR
Quick Summary
Eaton JM60200-2CR modular fuse block provides reliable overcurrent protection for two-pole power circuits in industrial control panels. Designers often wrestle with balancing high current capability, fast fault clearing, and compact panel real estate. UL Listed, CSA Certified, and CE Marked, this module also meets RoHS requirements, aligning with global compliance programs. For machine builders and panel OEMs, the JM60200-2CR delivers predictable protection while simplifying procurement and inventory, thanks to a proven Class J fuse-block interface and knife-blade terminations that speed field installation and reduce wiring errors. The result is safer startups, reduced downtime, and easier maintenance across harsh industrial environments.
Product Information
Extended Description
JM60200-2CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 110-200 A, Two-pole, Class J, 200 kA, Knife blade end x knife blade end, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60200-2CR
UPC
051712387408
Product Length/Depth
6.75 in
Product Height
3.8 in
Product Width
5 in
Product Weight
1.61 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class J
Connection
Knife blade end x knife blade end
Special features
CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60200-2CR
The JM60200-2CR offers robust protection for demanding industrial applications, delivering 110–200 A capacity and a 600 V rating to support heavy machinery while maintaining safe, fast fault clearing with a 200 kAIC interrupt capability. This translates to higher system reliability and reduced downtime in panel assemblies where space is at a premium. Its two-pole Class J configuration with knife blade end connections enables quick, secure field wiring and easier service replacements, improving installation accuracy and reducing maintenance time. Built to RoHS and CE standards and UL Listed plus CSA Certified, it ensures regulatory compliance across markets while simplifying supplier qualification for global OEMs. With a compact footprint (6.75 in L × 5 in W × 3.8 in H) and a weight of 1.61 lb, it fits dense panel layouts without sacrificing performance. The modular design also supports scalable protection strategies in evolving machinery ecosystems.
Get a Quick Quote for a Eaton JM60200-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60200-2CR?
Enquire Now
FAQs
Plan for a two-pole Class J fuse block with knife blade end terminations to ensure secure, vibration-resistant connections. Verify enclosure clearance for 600 V insulation, and accommodate the unit’s compact footprint (6.75 in L, 5 in W, 3.8 in H) within panel layouts. Use RoHS and CE compliant hardware to maintain regulatory alignment and rely on UL Listed/CSA Certified status for supplier qualification.
The JM60200-2CR is rated for 110–200 A and 600 V. It provides a 200 kAIC interrupt rating and a 200 kA short-circuit rating, making it suitable for high-current protection in machinery and control panels while maintaining safe current clearing during faults.
Yes. With a 600 V rating, 110–200 A capacity, and a 200 kAIC interrupt rating, the JM60200-2CR is designed for heavy-duty industrial machinery and panel builds. The two-pole Class J configuration and robust certifications (UL Listed, CSA Certified, RoHS/CE) support compliance and reliable operation in noisy industrial environments.
The JM60200-2CR carries UL Listed and CSA Certified marks, plus CE and RoHS compliance. These certifications indicate conformity with North American and international safety standards, reducing risk during procurement and installation, easing supplier qualification, and ensuring compatibility with global regulatory requirements in industrial facilities.
The JM60200-2CR delivers predictable protection with a compact, field-friendly knife blade end connection, enabling faster wiring and replacement. Its high interrupt rating and durable Class J design minimize fault-related downtime, while UL/CSA/CERoHS compliance simplifies ongoing regulatory audits. Overall, these factors reduce maintenance effort and spare-part complexity for OEM panel programs.
