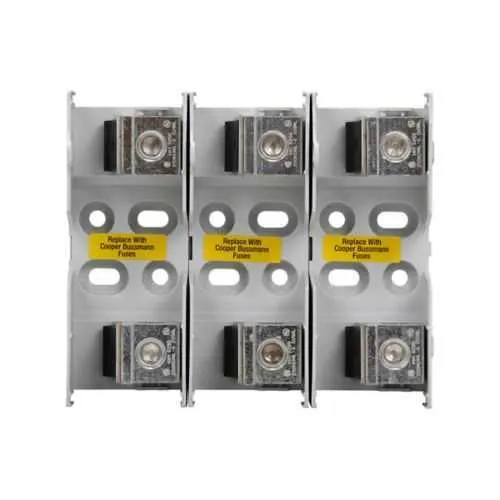

Eaton JM60200-3CR Modular Fuse Block - 200 kAIC
Part Number: JM60200-3CR
Quick Summary
Eaton JM60200-3CR modular fuse block provides reliable overcurrent protection for three-phase electrical panels. This design helps reduce unplanned downtime caused by fuse failures and mis-sizing, delivering predictable protection in demanding environments. The unit carries CE marking, UL Listed, and CSA Certified ratings, with RoHS compliance to meet modern sustainability requirements. By combining high interrupt capability with fast, knife-blade terminations, it supports faster installations and lower lifecycle cost, while remaining compatible with Bussmann series modular fuse blocks for streamlined maintenance and spare-part availability.
Product Information
Extended Description
JM60200-3CR Eaton: Eaton Bussmann series JM modular fuse block, CR, 110-200 A, Three-pole, Class J, 200 kA, Knife blade end x knife blade end, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60200-3CR
UPC
051712387415
Product Length/Depth
7.25 in
Product Height
3.76 in
Product Width
6.25 in
Product Weight
2.42 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Interrupt rating
200 kAIC
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class J
Connection
Knife blade end x knife blade end
Special features
CR
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60200-3CR
Feature → Business Impact → Application: The JM60200-3CR supports an amperage range of 110-200 A with a 200 kAIC interrupt rating, enabling reliable protection for high-demand three-phase machinery while minimizing nuisance trips and equipment damage in industrial drives. This translates to increased line uptime and reduced maintenance costs in manufacturing lines and packaging equipment. Feature → Business Impact → Application: Three-pole Class J construction with knife blade end connections simplifies field wiring and reduces installation time, improving project timelines for machine builders and panel shops integrating power distribution centers. Feature → Business Impact → Application: 600 V voltage rating and UL Listed/CSA Certified compliance provide confidence for electrical contractors deploying in commercial and industrial facilities, ensuring adherence to electrical code requirements and reducing compliance risk. Feature → Business Impact → Application: RoHS compliant materials and CE marking address global procurement criteria, supporting international trades and supplier diversity while meeting environmental standards. Feature → Business Impact → Application: CR special feature enables compact integration with Bussmann modular fuse kits, delivering a modular, scalable protection solution for evolving power systems. Feature → Business Impact → Application: The compact dimensions (7.25 in length, 6.25 in width, 3.76 in height) and 2.42 lb weight facilitate easy mounting in crowded panels and retrofit projects without sacrificing mechanical stability.
Get a Quick Quote for a Eaton JM60200-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60200-3CR?
Enquire Now
FAQs
The JM60200-3CR is designed for three-pole, knife-blade end connections and fits standard Bussmann modular fuse assemblies. Ensure mounting in a suitable enclosure with adequate clearance for 7.25 in length and 3.76 in height. Verify panel ratings to maintain the 600 V limit and confirm compatible conductor sizing for 110-200 A operation.
This block provides an amperage range of 110-200 A, a 200 kAIC interrupt rating, a 200 kA short-circuit rating, and a 600 V voltage rating. These specifications support reliable protection of three-phase systems in industrial equipment while meeting standard protection and isolation requirements.
Yes. With its three-pole Class J design, 200 kAIC interrupt rating, and 600 V rating, it is tailored for three-phase power distribution in industrial machinery, motor-control centers, and panel boards. Its compatibility with Bussmann modular fuse blocks simplifies upgrades and expansion in evolving systems.
The JM60200-3CR is UL Listed and CSA Certified, with CE marking and RoHS compliance. These certifications support regulatory acceptance across North America and Europe, ensuring safety, performance, and environmental responsibility in accordance with current standards.
The unit's knife-blade terminations and modular design reduce wiring time and spare-parts complexity, accelerating maintenance and upgrades. Its high interrupt rating minimizes unscheduled outages, lowering downtime costs and extending equipment life in demanding production environments.
