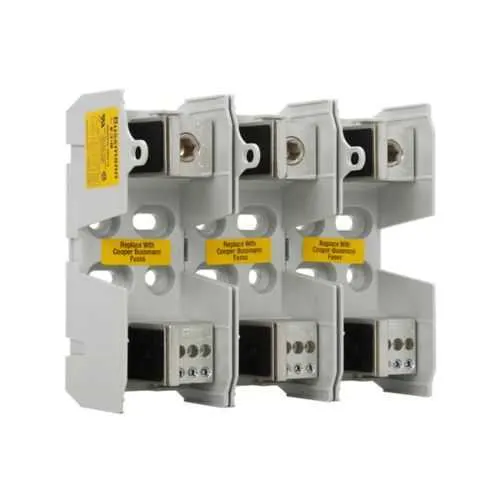

Eaton JM60200-3MW16 modular fuse block - Class J
Part Number: JM60200-3MW16
Quick Summary
Experience Eaton JM60200-3MW16 modular fuse block delivering reliable overcurrent protection for industrial power distribution and machine control panels. Many panel builders struggle with space, downtime, and rapid fuse replacement in 600 V systems. UL Listed, CSA Certified, and CE Marked with RoHS compliance ensure regulatory alignment and safer operation across regions. Designed for modular three-pole protection, it supports 110–200 A with a 200 kA short-circuit rating, helping reduce downtime and maintenance costs. Its compact footprint and documented specifications simplify procurement and installation while delivering consistent performance in harsh industrial environments. Engineered for industrial OEMs and service teams, it integrates with standard Bussmann series components to streamline sourcing and support.
Product Information
Extended Description
JM60200-3MW16 Eaton: Eaton Bussmann series JM modular fuse block, 110-200 A, Three-pole, Class J, 200 kAIC, 600 V
Product Name
Eaton Bussmann series JM modular fuse block
Catalog Number
JM60200-3MW16
UPC
051712491129
Product Length/Depth
6.75 in
Product Height
3.75 in
Product Width
8 in
Product Weight
2.5 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Short-circuit rating
200 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class J
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
eaton-product-overview-for-machinery-catalogue-ca08103003zen-en-us.pdf
Bussmann series Fuseology
Eaton Specification Sheet - JM60200-3MW16
Three-pole JM60200-3MW16 fuse block provides centralized protection for larger machine controls and panel boards. This topology reduces wiring complexity and inventory while improving fault isolation. In practice, engineers deploy it where space is at a premium and reliability is non-negotiable. With a 200 kA short-circuit rating at 600 V, the device limits arc energy and protects downstream equipment during faults. The robustness translates to lower risk of collateral damage and shorter downtime after incidents, a key metric for uptime-sensitive processes in manufacturing lines. The RoHS, CE, UL Listed, and CSA Certified status delivers regulatory peace of mind for global deployments. This reduces qualification cycles for multi-site OEMs and simplifies commissioning across North America and Europe. Descriptive dimensions (6.75 in L x 8 in W x 3.75 in H) and a modest 2.5 lb weight make mounting straightforward in crowded panels. The product’s clear catalog data and UPC facilitate fast stocking and accurate BOMs. Designed to be compatible with standard Bussmann series blocks and existing panel hardware, the JM60200-3MW16 simplifies procurement and replacement. The three-pole Class J format aligns with common protection schemes, easing integrator handoffs and maintenance planning.
Get a Quick Quote for a Eaton JM60200-3MW16
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JM60200-3MW16?
Enquire Now
FAQs
Install the JM60200-3MW16 in 600 V protective circuits with proper clearance around the heat sink and fuse block. It mounts as a three-pole module and uses standard Bussmann style fuses; ensure terminal torque per manufacturer guidelines and proper conductor sizing within the 110-200 A range. The device ships with catalog data that simplifies BOM generation, and it is compatible with existing Bussmann series components.
Rated for 200 kA short-circuit current, the fuse block withstands fault events without cascading damage. In 600 V systems, this rating helps protect feeders and downstream equipment, reducing the risk of arc flash and equipment damage. UL Listed and CSA Certified ensure the design meets recognized safety standards.
RoHS compliant, CE marked, and UL/CSA certified enable broad deployment across regions. While the unit does not specify an IP rating, proper enclosure selection and panel design can protect it from dust and moisture. The three-pole Class J design supports robust protection in machining, packaging, and process automation applications.
UL Listed, CSA Certified, CE Marked, and RoHS Compliant indicate compliance with North American and European standards. This certification set helps with supplier qualification, warranty coverage, and regulatory acceptance across global plants.
Modular design simplifies replacement and spare-part stowage, reducing downtime during maintenance windows. High fault tolerance minimizes unscheduled outages, and the standardized catalog data accelerates procurement and BOM accuracy. Overall, the unit delivers lower total cost of ownership by improving uptime and facilitating quicker upgrades in automation lines.
